Quick Details
-
Core Components:
-
none
-
material:
-
high quality alloy steel
-
Hardness:
-
HRC54-58
-
standard:
-
BT
-
taper:
-
AT3 grade
-
surface:
-
precision ground
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
1.5
-
Brand Name:
-
Zhongyi
-
Core Components:
-
none
-
material:
-
high quality alloy steel
-
Hardness:
-
HRC54-58
-
standard:
-
BT
-
taper:
-
AT3 grade
-
surface:
-
precision ground

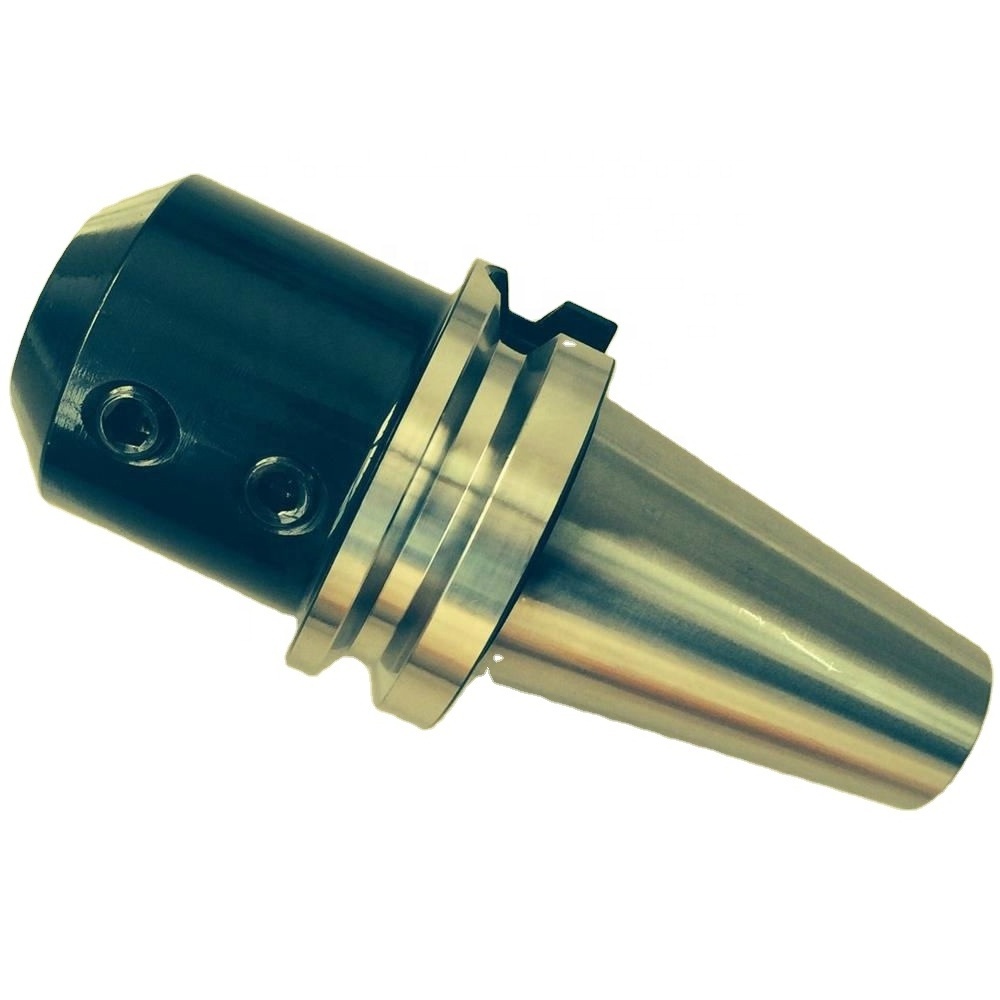

weldon type BT30 BT40 BT50 side lock holders for clamping endmill cutter:
1.runout:0.005mm
2.lateral clamping surface
3.balanced holder be available
4.specification as below:
|
model no. BTxd-L1 |
L | D | D1 | L2 | L3 | WEIGHT(kg) |
| BT30x6-50 | 98.4 | 25 | 31.75 | 18 | 0.66 | |
| BT30x6-60 | 108.4 | 25 | 31.75 | 18 | 0.72 | |
| Bt30x8-60 | 108.4 | 28 | 31.75 | 18 | 0.80 | |
| BT30x10-60 | 108.4 | 35 | 31.75 | 20 | 0.83 | |
| BT30x10-80 | 128.4 | 35 | 31.75 | 20 | 0.83 | |
| BT30x12-60 | 108.4 | 42 | 31.75 | 22.5 | 0.88 | |
| BT30x14-60 | 108.4 | 44 | 31.75 | 22.5 | 1.02 | |
| BT30x16-75 | 123.4 | 48 | 31.75 | 24 | 1.04 | |
| BT30x18-75 | 123.4 | 50 | 31.75 | 24 | 1.26 | |
| BT30x20-75 | 123.4 | 52 | 31.75 | 25 | 1.36 | |
| BT30x25-90 | 138.4 | 65 | 31.75 | 24 | 25 | 1.50 |
| BT40x6-50 | 115.4 | 25 | 44.45 | 18 | 0.96 | |
| BT40x6-60 | 125.4 | 25 | 44.45 | 18 | 0.98 | |
| BT40x8-50 | 115.4 | 28 | 44.45 | 18 | 1.00 | |
| BT40x10-63 | 128.4 | 35 | 44.45 | 20 | 1.08 | |
| BT40x12-63 | 128.4 | 42 | 44.45 | 22.5 | 1.20 | |
| BT40x14-63 | 128.4 | 44 | 44.45 | 22.5 | 1.22 | |
| BT40-16x63 | 128.4 | 48 | 44.45 | 24 | 1.24 | |
| BT40x16-70 | 135.4 | 48 | 44.45 | 24 | 1.30 | |
| BT40x18-63 | 128.4 | 50 | 44.45 | 24 | 1.36 | |
| BT40x20-63 | 128.4 | 52 | 44.45 | 25 | 1.36 | |
| BT40x20-70 | 135.4 | 52 | 44.45 | 25 | 2.10 | |
| BT40x25-90 | 155.4 | 65 | 44.45 | 24 | 25 | 2.07 |
| BT40x25-100 | 165.4 | 65 | 44.45 | 24 | 25 | 2.08 |
| BT40x32-100 | 165.4 | 72 | 44.45 | 24 | 28 | 2.25 |
| BT40x32-110 | 175.4 | 72 | 44.45 | 24 | 28 | 2.30 |
| BT40x40-120 | 185.4 | 90 | 44.45 | 30 | 32 | 2.50 |
| BT40x40-140 | 205.4 | 90 | 44.45 | 30 | 32 | 2.80 |
| BT50x6-63 | 164.8 | 25 | 69.85 | 18 | 3.20 | |
| BT50x8-63 | 164.8 | 28 | 69.85 | 18 | 3.23 | |
| BT50x10-63 | 164.8 | 35 | 69.85 | 20 | 3.24 | |
| BT50x12-80 | 181.8 | 42 | 69.85 | 22.5 | 3.36 | |
| BT50x16-80 | 181.8 | 48 | 69.85 | 24 | 3.48 | |
| BT50x20-80 | 181.8 | 52 | 69.85 | 25 | 3.52 | |
| BT50x25-100 | 201.8 | 65 | 69.85 | 24 | 25 | 4.28 |
| BT50x25-105 | 206.8 | 65 | 69.85 | 24 | 25 | 4.30 |
| BT50x25-150 | 251.8 | 65 | 69.85 | 24 | 25 | 4.35 |
| BT50x25-200 | 301.8 | 65 | 69.85 | 24 | 25 | 4.40 |
| BT50x32-100 | 201.8 | 72 | 69.85 | 24 | 28 | 4.44 |
| BT50x32-105 | 206.8 | 72 | 69.85 | 24 | 28 | 4.56 |
| BT50x40-115 | 216.8 | 90 | 69.85 | 30 | 32 | 4.58 |
| BT50x40-120 | 221.8 | 90 | 69.85 | 30 | 32 | 4.58 |
| BT50x50-150 | 251.8 | 100 | 69.85 | 35 | 35 | 4.90 |
Remarks:1)If you need center and flange water leakage,pls mark AD/B.
2)We can supply balance G6.3/12000rpm,G2.5/20000rpm.
