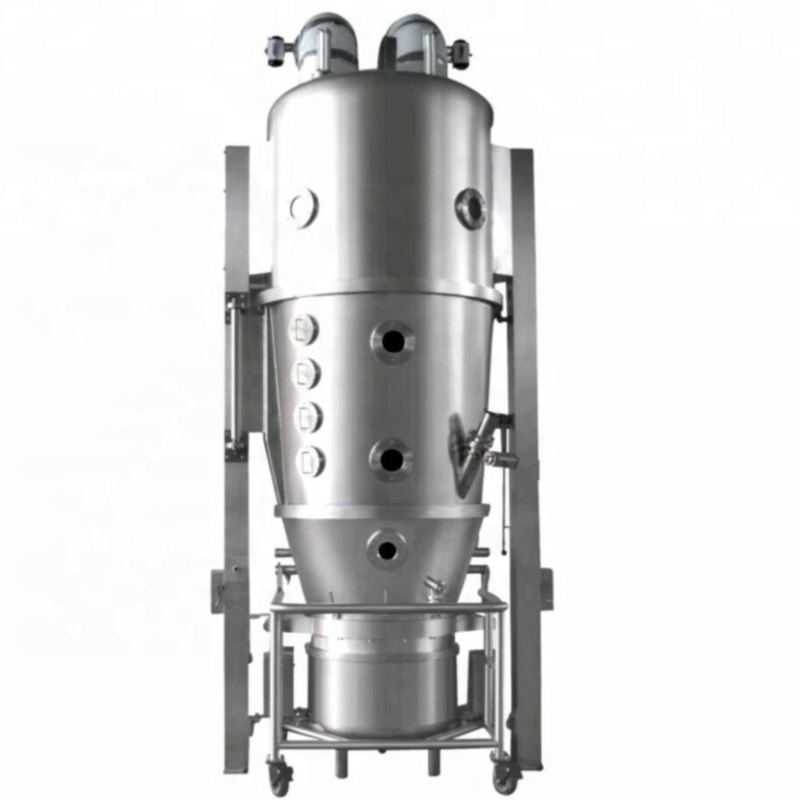

Multi-function high throughput vertical multipurpose one step deep-sea fish oil / yeast concentrate fluid bed pelletizer

Multi-function high throughput vertical multipurpose one step deep-sea fish oil / yeast concentrate fluid bed pelletizer

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V/415V/600V

Dimension(L*W*H):: 1850*1400*3000mm

Weight (KG):: 900

Power (kW):: 5.5

After-sales Service Provided:: Engineers available to service machinery overseas

Application:: Granulator

Product Name:: FL Series Fluidized Bed Granulator

Usage:: Raw material granulation

Type:: Granulate Making Equipments

Capacity:: 10-20kg

Raw material:: Organic Material

Material:: Stainless Steel SUS304/316L

Power(W):: 5.5kw

Quick Details

Output (kg/h):: 6

Place of Origin:: Liaoning, China

Brand Name:: WANDA

Voltage:: 220V/380V/415V/600V

Dimension(L*W*H):: 1850*1400*3000mm

Weight (KG):: 900

Power (kW):: 5.5

After-sales Service Provided:: Engineers available to service machinery overseas

Application:: Granulator

Product Name:: FL Series Fluidized Bed Granulator

Usage:: Raw material granulation

Type:: Granulate Making Equipments

Capacity:: 10-20kg

Raw material:: Organic Material

Material:: Stainless Steel SUS304/316L

Power(W):: 5.5kw

Multi-function high throughput vertical multipurpose one step deep-sea fish oil / yeast concentrate fluid bed pelletizer

Product Description

Granulation and Drying Function Integration

High Drying Efficiency

Simple and Convenient Operation, Saving Labor

24-hour Continuous Operation

Energy Saving and Environmental Protection

Features:

1) Through powder granulating, the flow property is improved and the dust is reduced.
2) U niform powder granulating, its solving property is improved.
3) The mixing, granulating and drying processes can be completed in one step inside the machine.
4) The operation of equipment is safe, because the anti-static filtering cloth is adopted.
5) Operation personnel cannot be damaged if explosion takes place, because there is releasing hole.
6) Has no dead corner. Therefore the loading and unloading are quick, light and clean.
7) Meets the requirements of GMP.

Product More Pictures

Working Principle

The powder granule in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
