- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINTIAN
-
Dimension(L*W*H):
-
1080mm*1300mm*1400mm
-
Name:
-
packing machine with valve applicator
-
Packing material:
-
full kinds of complex film or PE
-
Packing speed:
-
30-60bags/min
-
Main Function:
-
Automatic Vertical Form
-
Machine material:
-
304 Stainless Steel
-
Weight:
-
450kg
-
Shape of sealed bag:
-
Central Sealing
-
Bag type:
-
Stand-up Pouch
-
Product name:
-

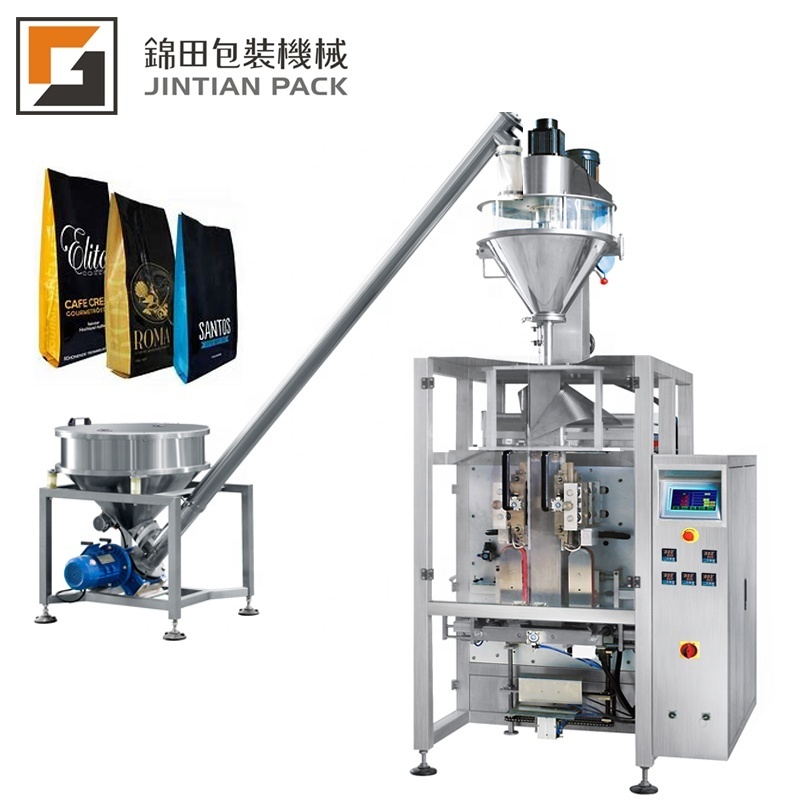

Automatic Vertical powder Packing Machine
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINTIAN
-
Dimension(L*W*H):
-
1080mm*1300mm*1400mm
-
Name:
-
packing machine with valve applicator
-
Packing material:
-
full kinds of complex film or PE
-
Packing speed:
-
30-60bags/min
-
Main Function:
-
Automatic Vertical Form
-
Machine material:
-
304 Stainless Steel
-
Weight:
-
450kg
-
Shape of sealed bag:
-
Central Sealing
-
Bag type:
-
Stand-up Pouch
-
Product name:
-
Automatic Vertical powder Packing Machine
Product Paramenters
Main Features
1.Full-automatic weigh-form-fill-seal type, efficient and simple to use.
2.Use famous brand electric and penumatic components,stable and long life circle.
3.Use superior mechanical components, reduce the wear outless .
4.Easy to install film, auto correcting the excursion of the film .
5.Apply advanced operating system ,easy to use and reprogramable. To be used on Jintian High quality machine, it makes your packing work easy and efficiency.
|
Vertical Pacling machine
|
|
|
|
|
|
|||||
|
Model
|
JT-320
|
JT-460
|
JT-520
|
JT-720
|
JT-920
|
|||||
|
Film width
|
120-320 mm
|
460 mm
|
520 mm
|
720 mm
|
920 mm
|
|||||
|
Bag length
|
50-200 mm
|
80-300mm
|
80-400mm
|
80-500mm
|
80-650mm
|
|||||
|
Bag width
|
50-150 mm
|
50-20 mm
|
70-250 mm
|
60-350 mm
|
200-450 mm
|
|||||
|
Packing grams
|
50-150 ML
|
50-1500ML
|
50-3000ML
|
50-5000ML
|
100-10000ML
|
|||||
|
Packing speed
|
35-70bpm
|
35-70bpm
|
35-70bpm
|
35-70bpm
|
35-70bpm
|
|||||
|
Power
|
220V/380V/50/60 HZ
|
|
|
|
|
|||||
|
Machine dimension
|
970*680*1960 mm
|
1200*1500*1700
|
1500*1600*1800
|
1600*1700*1800
|
1600*1700*1800
|
|||||
|
Machine weight
|
300 kg
|
450 kg
|
500kg
|
600 kg
|
750 kg
|
|||||
|
We are packing machine factory ,we can customize for your needed
|
|
|
|
|
|
|||||
Technical Parameters:
|
Technical Parameters
|
|
|
||
|
Item No.
|
JT-660
|
JT-460
|
||
|
Bag length
|
80-470mm(L)
|
80-370mm(L)
|
||
|
Bag width
|
100-350mm(W)
|
80-250mm(W)
|
||
|
Max roll film width
|
660mm
|
460mm
|
||
|
Packing speed
|
5-60 bag/min
|
5-60 bag/min
|
||
|
Air consumption
|
0.4m3/min 1.0Mps
|
0.4m3/min 1.0Mps
|
||
|
Powder voltage
|
3KW 220V 50/60HZ
|
2.7KW 220V 50/60HZ
|
||
|
Dimension
|
1700(L)×1270(W)×1900(H)
|
1650(L)×1170(W)× 1700(H)
|
||
|
Net weight
|
900KG
|
800KG
|
||
|
Model
|
JT-30L
|
JT-50L
|
|
Hopper
|
30L
|
50L
|
|
Packing weight
|
1-500g
|
10-5000 g
|
|
Packing accuracy
|
<100g ±2%; 100-500g ±1%;
|
<100g ±2%; 100-500g ±1%; <5000 g, ±0.5%
|
|
Filling speed
|
40-120 times/min
|
40-120 times/min
|
|
Power supply
|
3P AC 208-415V 50/60 Hz
|
3P AC 208-415V 50/60 Hz
|
|
Total power
|
1.7 kw
|
1.9kw
|
|
Total weight
|
130kg
|
200 kg
|
|
Overall dimension
|
860*460*880 mm
|
1060*600*1100MM
|
More Detail Information
Please send us your inquiry for more details
Support customization
Company Introduction
Foshan Nanhai Jintian Packing Machinery Co., Ltd.
is one of the fastest growing packaging machinery factories in China,specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. quantitative packaging scales and supporting equipment.
JINTIAN has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time.
"JINTIAN" series vertical packaging machines are sold to more than 20 different countries and regions in Europe, America,the Middle East, South Asia, etc., and win a consistently high reputation because of high quality and quick professional service .
We are looking for exclusive agents in different countries for expanding sales channels. You are warmly welcome to contact us
"JINTIAN" series vertical packaging machines are sold to more than 20 different countries and regions in Europe, America,the Middle East, South Asia, etc., and win a consistently high reputation because of high quality and quick professional service .
We are looking for exclusive agents in different countries for expanding sales channels. You are warmly welcome to contact us
Exhibition
Certifications
Packing and shipping
FAQ
1. Can your machine meet our needs well?
We will give you the proposal according to your specific requirments.
We will give you the proposal according to your specific requirments.
Every machine is customized to meet your needs well.
2. Are you factory or trading company?
We are the factory, we doing this line for more than 10 years.
3. What's your payment way?
T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash.
4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in the third party inspection organization .
5. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service or payment by LC, guarantee your money.
6. Why we should choose your company?
We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal
2. Are you factory or trading company?
We are the factory, we doing this line for more than 10 years.
3. What's your payment way?
T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash.
4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in the third party inspection organization .
5. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service or payment by LC, guarantee your money.
6. Why we should choose your company?
We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal
