Name: Plastic Tree Root Protection Reinforcement Mats
Brand: XINXING
Original: CHINA
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TYXX-GPM
-
Thickness:
-
6-300mm
-
Size:
-
1220*2440mm, Customized
-
Product name:
-
ground protection mats
-
Density:
-
0.94-0.98g/cm3
-
Breaking strengh:
-
42MPa
-
Water absorption:
-
<0.01
-
Hardness:
-
Shore D 65-70
-
HS CODE:
-
3920109090
-
Impact strength (Transverse):
-
67.9kJ/m2
-
Molecular Weight:
-
3-9million for uhmwpe plastic mats for ground protection
-
Making Procedure of UHMWPE/HDPE:
-
moulding pressure or extruded
-
Raw Material:
-
PE virgin 100%, Ultra High Molecular Weight Polyethylene
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tangyin Xinxing
-
Model Number:
-
TYXX-GPM
-
Thickness:
-
6-300mm
-
Size:
-
1220*2440mm, Customized
-
Product name:
-
ground protection mats
-
Density:
-
0.94-0.98g/cm3
-
Breaking strengh:
-
42MPa
-
Water absorption:
-
<0.01
-
Hardness:
-
Shore D 65-70
-
HS CODE:
-
3920109090
-
Impact strength (Transverse):
-
67.9kJ/m2
-
Molecular Weight:
-
3-9million for uhmwpe plastic mats for ground protection
-
Making Procedure of UHMWPE/HDPE:
-
moulding pressure or extruded
-
Raw Material:
-
PE virgin 100%, Ultra High Molecular Weight Polyethylene
Product Description
Customed Durable Road Temporary Plastic Mat is lightweight and easy to install.
Customed Durable Road Temporary Plastic Mat are connected by steel plates or plastic plates.
|
Property
|
unite
|
value
|
|
Density
|
g/cm3
|
0.941-0.985
|
|
Average molecular weight
|
g/mol
|
3million- 10 million
|
|
Tensile strength(23°C in air)
|
MPa
|
22
|
|
Breaking strength
|
Mpa
|
42
|
|
Tensile strain at break
|
%
|
600
|
|
Impact strength
|
mJ/mm2
|
No break
|
|
Ball indentation hardness
|
N/mm2
|
42
|
|
Shore D hardness
|
|
65-70
|
|
Abrasion
|
%
|
70-80, steel = 100
|
|
Static Friction Coefficient
|
|
≤0.16
|
|
Kinetic Friction Coefficient
|
|
≤0.10
|
|
Water Absorption
|
|
NIL
|
|
Elongation at break at 23 degree
|
%
|
300
|
|
Melt Temperature
|
°C
|
130-140
|
Main Feature of the Construction Road Mats:
1. Significantly lighter than steel or wood
2. Designed for a variety of soil bearing conditions, including poor soil
3. Engineered for high-capacity cranes
4. High compressive and flexural strength
5. Retains performance over lifetime
6. Can be used in extreme weather conditions
(-269.C to +85 .C)
7. Moisture / rot proof
8. UV resistant
9. Chemical / oil resistant
10. Black, Orange(color is customized）
11. Easy-to-Clean and in stocking transportation
12. Manufactured in many shapes, including round and square.
10. Black, Orange(color is customized）
11. Easy-to-Clean and in stocking transportation
12. Manufactured in many shapes, including round and square.

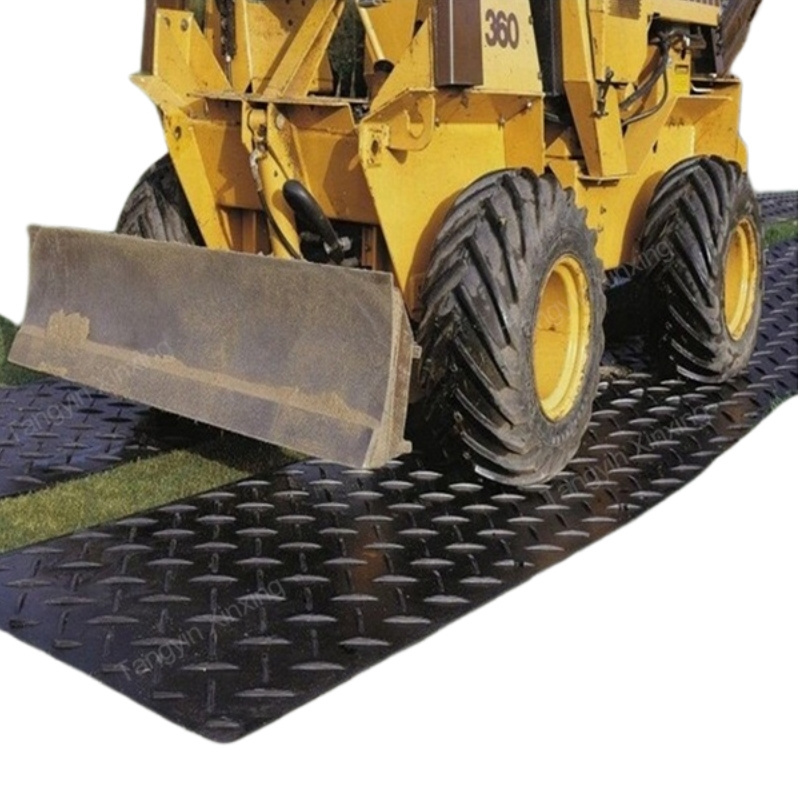

Application of the Construction Road Mats:
Event Flooring
Temporary roads
Mud Mat
Construction Marts
Turf protection Mats
Oil Duiling Rig Mats
Temporary Ground Road Mat is made up with the advanced technology materials - HDPE (high density polyethylene). The construction road mat is suitable for heavy goods vehicles, and it loads up to 150 tonnes. The construction road mat is applied in Outdoor Events, Event Parking, Towpaths and more.
We develops and manufactures stronger, more durable, lightweight matting products. Our interlocking Construction Road mat s can resist heavy impact and wear, which is durable in repeated usage. Black color interlocking Construction Road mats is many customers first choice, and the color is also custom-made.
All Ground-Guards ground protection products are incredibly strong, but also lightweight, easy to use and simple to install by hand without the need of expensive lifting equipment.
Benefit of Ground Protection Mats
1.Creat an instant roadway over virtually any type of terrain – mud, sand, marshy, uneven or soft terrain
2. Protects valuable turf during landscaping projects
3. Superior alternative to plywood and fiberglass – will not warp, rot, crack or delaminate
4.Save time & labor getting vehicles and equipment traversed over difficult terrain
5.Avoid potential injuries to workers incurred while dislodging vehicles & equipment from mud
6.Protects vehicles & equipment from excessive wear and damage due to operating on unstable ground conditions
7.Easily handled and laid by two men – no need for expensive crane wagons
8.Lay as two parallel tracks or a single roadway
9.Link together with metal connectors.
10. Easily cleaned due to less aggressive lug pattern
11.Extremely durable to withstand vehicle weights up to 80 tons
12.Tested in extremes of hot and cold climates
13. Can be used hundreds of times
14.Guaranteed for 7 years
15.Made in China – ship worldwide.
2. Protects valuable turf during landscaping projects
3. Superior alternative to plywood and fiberglass – will not warp, rot, crack or delaminate
4.Save time & labor getting vehicles and equipment traversed over difficult terrain
5.Avoid potential injuries to workers incurred while dislodging vehicles & equipment from mud
6.Protects vehicles & equipment from excessive wear and damage due to operating on unstable ground conditions
7.Easily handled and laid by two men – no need for expensive crane wagons
8.Lay as two parallel tracks or a single roadway
9.Link together with metal connectors.
10. Easily cleaned due to less aggressive lug pattern
11.Extremely durable to withstand vehicle weights up to 80 tons
12.Tested in extremes of hot and cold climates
13. Can be used hundreds of times
14.Guaranteed for 7 years
15.Made in China – ship worldwide.
Certifications
We are one of the alibaba assessed supplier.
Certificate of registration of Tangyin Xinxing Plastics Engineering Co, LTD.
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Cut-to-Size free size support.
* View our Factory.
* On-time Delivery
* Customized Packaging & Assembly
* Machining Services
* Secure Transaction
Production Process
Production process of the UHMWPE Sheet
We have strict, advanced and scientific production process. Ensuring the high quality and duly shipments.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
Customized
|
|
|
Weight
|
Each pallet is less than 1.3 T
|
|
|
Packaging Details
|
The normal package is Pallet/carton with stretch film.
If export to european countries,the wooden box will be fumigated.
We can also pack according to customers special request.
|
|
|
Delivery
|
|
|
|
Time
|
15-20 days
|
|
|
Weight
|
1.2 T
|
|
|
Delivery Details
|
The packages from Xinxing company will be sent to the port by automobile, and then it will be put on the containers and transported to your country by cargo ship.
|
|
FAQ
1).What is your terms of delivery?
We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
2).Terms of payment?
Our usual payment is T/T, L/C. You can choose the best one according to your situation.
3). When can I get the price?
We usually quote within 6 hours after we get your inquiry.
If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
4).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and quality, we will provide you sample for free, as long as you pay the express freight.
5).How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 working days. The samples will be sent to you via express within 3-5 days. You can use your own express account or prepay us if you do not have an account.
6).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
Generally speaking, production lead time is within 2~4 weeks.
