Quick Details
-
Model Number:
-
PRX515N-230918-05
-
Dimension:
-
545 x 445 x 572 mm
-
Output Power:
-
500w+500w@4ohm
-
Finish:
-
Black or white textured paint
-
Net Weight:
-
31.1kg
-
Material:
-
Asymmetrical, 18 mm, plywood
-
Frequency Range (-10 dB):
-
33 Hz
-
Transducer Protection:
-
Thermal limiting, excursion limiting
-
Configuration:
-
15" subwoofer
-
Power Output:
-
1000 W Class D continuous
-
Frequency Response (-6 dB):
-
38 Hz
-
Dimensions (HWD) mm:
-
545x445x572
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WYW
-
Model Number:
-
PRX515N-230918-05
-
Dimension:
-
545 x 445 x 572 mm
-
Output Power:
-
500w+500w@4ohm
-
Finish:
-
Black or white textured paint
-
Net Weight:
-
31.1kg
-
Material:
-
Asymmetrical, 18 mm, plywood
-
Frequency Range (-10 dB):
-
33 Hz
-
Transducer Protection:
-
Thermal limiting, excursion limiting
-
Configuration:
-
15" subwoofer
-
Power Output:
-
1000 W Class D continuous
-
Frequency Response (-6 dB):
-
38 Hz
-
Dimensions (HWD) mm:
-
545x445x572

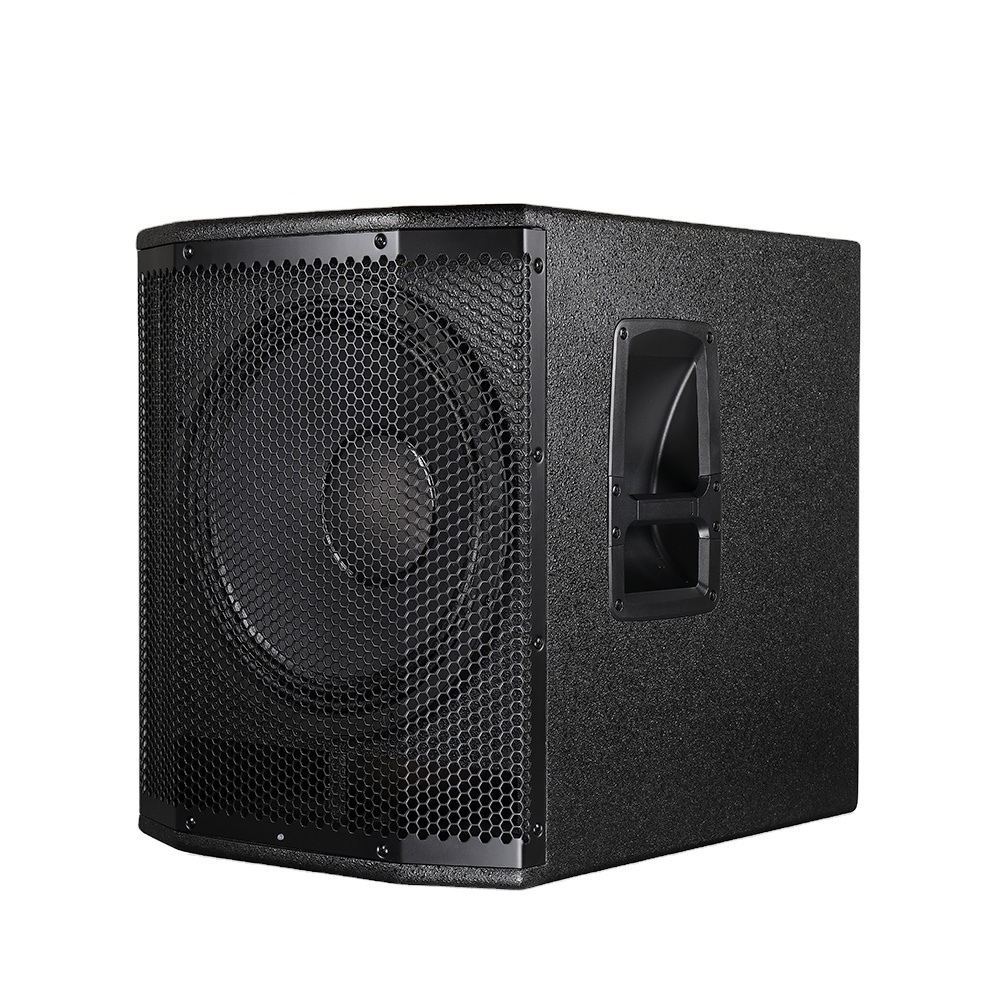

- 1,000 watt power module
- 15" vented subwoofer
- High acoustic output (131 dB SPL peak)
- Frequency range down to 33 Hz (-10 dB)
- Threaded pole receptacle for free-standing applications.
| Configuration | 15" subwoofer |
| LF: |
15" cone transducer
|
| Frequency Response (-6 dB) | 38 Hz |
| Frequency Range (-10 dB) | 33 Hz |
| Nominal Coverage (-6 dB) | - |
| Maximum SPL1 | 131 dB peak |
| Amplifiers | |
| Power Output | 1000 W Class D continuous |
| Input Impedance | 1xBalanced XLR/¼”input |
| Controls |
Power, MODE/BOOST, REV/POLARITY, LEVEL |
| Indicators | OVERLOAD, SIGNAL, POWER, FLAT, LINE |
| Connectors |
Balanced female XLR line level input, Balanced male XLR full range line level out, power connector AC In |
| Cooling | On demand, 100 mm variable speed fan |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 100/240 VAC, 50/60 Hz |
|
AC Power Consumption
(1/8 of full power) |
100 VAC, 2.3 A
120 VAC, 2.01 A 230 VAC, 1.13 A |
|
Enclosure |
|
| Material | Asymmetrical,18mm,plywood |
| Finish | Black or white textured paint |
| Grille | Black or white poweder coated 16 gauge steel |
| Dimensions (HWD) mm | 545x445x572 |
| Weight(net) | 31.1kg |
Established in 1998, Enping Kehua Electronics Factory is a manufacturer and trader specialized in the research, development and production of professional power amplifier, mixers and so on. We are located in Enping City , Guangdong , China. With convenient transportation access. It is a famous spatown and microphone world origin.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have provided OEM and ODM service for different customers. Our unremitting efforts,for your better service.
1. Q: When your company established?
A: We started firstly as a trade company on 1998. Now we have many years experience in manufacturing electronic products. We are professional amplifier manufacturer.
2. Q: Where is your main market ?
A: Our main customers are from North America and Europe and other countries,etc.
About Warranty
3 .Q: What’s your warranty period?
A: Our warranty period is 12 months. Customers have to ship back the defective products prepaid by express. After we received the defective goods, will finish the repairing within 7 days and return to you under our cost.
About Payment
4 . Q: What’s your payment term?
A: For the sample order, we can accept Western Union, Wire transfer or Escrow. But for the Batch order, we support Payment term by T/T ( 30% deposit in advance, balance 70% before shipment ).
About Sample
5 . Q: How can I order a sample?
A: .If you need some samples to test,we can make as per your request .You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.
Please kindly send the inquiry to me. Click the “Contact Supplier”. You will find the real me.
6 Q: Can you supply free sample?
A: Normally, we only supply free samples to our regular clients. For new clients, we can return the sample fee after bulk order placed.
7 . Q: How many days do you cost to prepare the sample?
A:We need 3~4 days for normal samples, 4~6 days or more will if the sample required OEM, and then will be sent via express and arrive in 15days.
8 . Q: How about the sample price ?
A: The price of the sample is in accordance with the retail price.
9
. Q: Can you do OEM/ODM for customers?
A: Of course, for the product design and package, our engineer can be design as your request, Any kind of logo printing or design are available.
