Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hechuang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
hechuang
-
Weight:
-
5500 kg
-
Product name:
-
Double Layer Roof Making Roll Forming Machine
-
After-sales Service Provided:
-
Engineers
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
0.05mm Chrome
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
High Grade No.45 Forged
-
Function:
-
Roof Usage
-
After Warranty Service:
-
Video Technical Support
-
Usage:
-
Steel Construction
-
Main frame:
-
350H Steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hechuang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
hechuang
-
Weight:
-
5500 kg
-
Product name:
-
Double Layer Roof Making Roll Forming Machine
-
After-sales Service Provided:
-
Engineers
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
0.05mm Chrome
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Shaft material:
-
High Grade No.45 Forged
-
Function:
-
Roof Usage
-
After Warranty Service:
-
Video Technical Support
-
Usage:
-
Steel Construction
-
Main frame:
-
350H Steel
Products Description

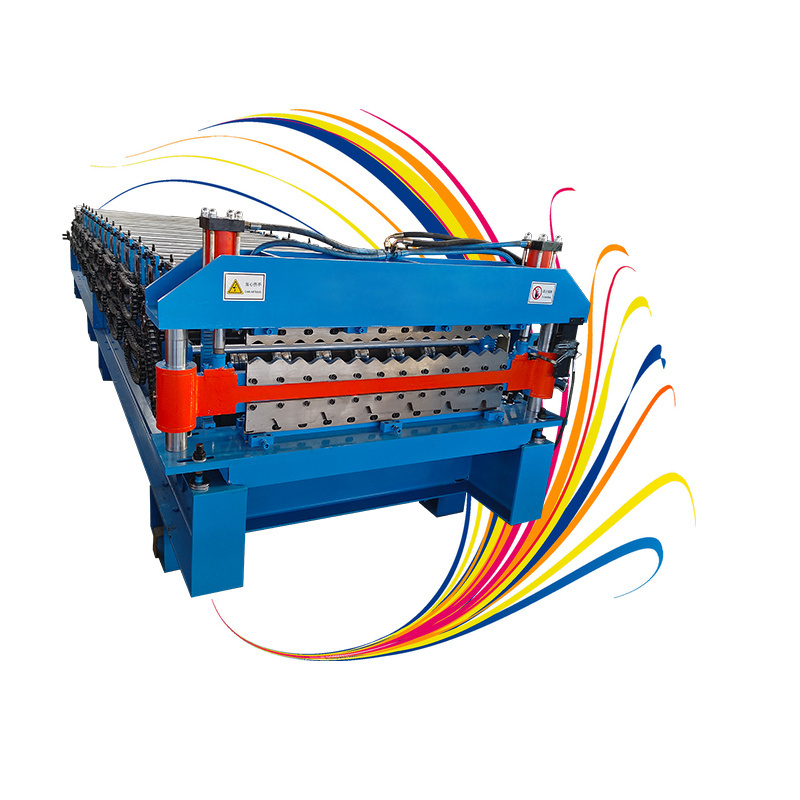

Double corrugated Trapezoidal Roof Sheet Making Machine
The Trapezoidal Roof Sheet Making Machine is a specialized piece of equipment designed for the production of trapezoidal-shaped corrugated roofing sheets. These sheets are commonly used in the construction industry for roofing applications, as they provide a durable and reliable covering for buildings.
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
Specificatioon
Roll Forming Machine Components:
|
No.
|
Name
|
Qty
|
|
1
|
De-coiler
|
1set
|
|
2
|
Roll Forming Machine
|
1set
|
|
3
|
Hydraulic Cutting Devic
|
1set
|
|
4
|
PLC Control Box
|
1set
|
|
5
|
Output table
|
1set
|
Product Description:
|
Item
|
Double corrugated Trapezoidal Roof Sheet Making Machine
|
|
Use
|
Roof/Wall
|
|
Production Capacity
|
25m/Min
|
|
Place of Origin
|
China
|
|
Brand Name
|
HC
|
|
Voltage
|
380v 50Hz 3Phases
|
|
Dimension(L*W*H)
|
6.7m*1.5m*1.4m
|
|
Weight
|
6.2tons
|
|
Warranty
|
1Year
|
|
Rolling thinckness
|
0.2-0.8mm
|
|
Feeding width
|
1200mm
|
|
Main frame
|
Material:350H steel
|
|
Middle plate
|
16mm
|
|
Shaft
|
70mm
|
|
Rollers
|
45# steel Chrome Plated
|
|
Roller Station
|
11/14 stations
|
|
Transmission
|
Specifications:1 inch chain wheel with gear transmission
Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil |
|
Main Motor
|
Power:5.5KW
|
Product Paramenters
Manual decoiler
Feeding device
Hydraullic cutting devic
PLC control cabinet
Solid shaft with 45# roller
Hydraulic cutting device
Our company
Product packaging
FAQ
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate it before shipping. It only needs 2 hours and you
can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visas, round tickets, hotels, and
food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine, and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate it before shipping. It only needs 2 hours and you
can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visas, round tickets, hotels, and
food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine, and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
