Quick Details
-
Color:
-
Customerized
-
Model:
-
SL-150
-
Power:
-
25KW
-
Capacity:
-
200-250kg/h (seeds)
-
Seeds Breaking rate:
-
1-2%
-
Net weight (kg):
-
480kg
-
Dimension:
-
2800*2200*2200mm
-
brand:
-
shuliy
-
Application:
-
pumpkin seeds
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Overseas third-party support available
-
name:
-
pumpkin seeds shell remove machine
-
Color:
-
Customerized
-
Model:
-
SL-150
-
Power:
-
25KW
-
Capacity:
-
200-250kg/h (seeds)
-
Seeds Breaking rate:
-
1-2%
-
Net weight (kg):
-
480kg
-
Dimension:
-
2800*2200*2200mm
-
brand:
-
shuliy
-
Application:
-
pumpkin seeds
New Condition pumpkin seeds shell remove machine

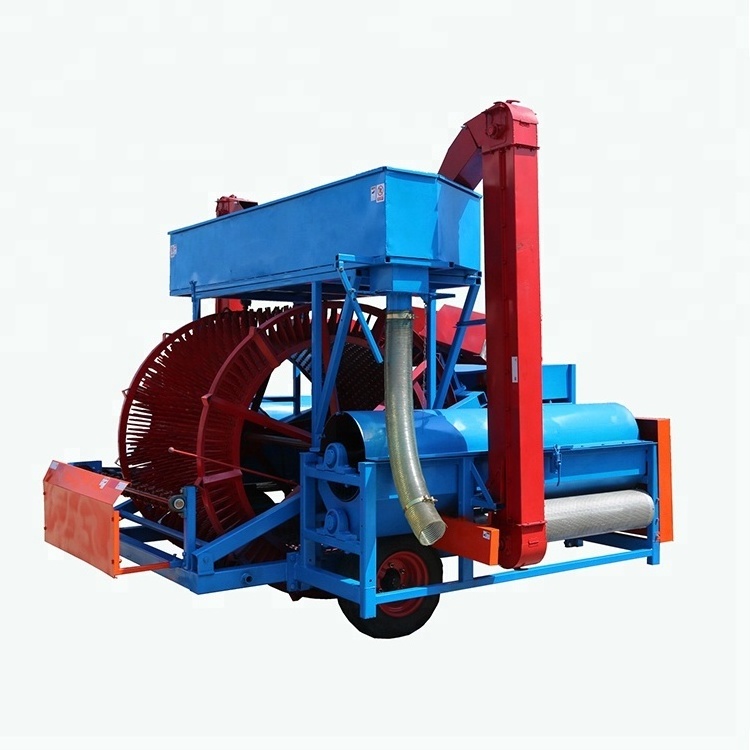

Brief introduction of pumpkin seeds extractor
This machine is specially used to extract the seeds from the ripe pumpkin. It can crush the pumpkin, press and separate the seeds from the pumpkin skin and flesh , cleaning the seeds.
The machine is connected with a small tractor through handing body. Tractor powered by propeller shaft passed to the stirring axle of the machine, through the sprocket and chain under the action of the power chain, assigned to separate consecutive axes, broken shaft, cleaning wheel shafts, the machine works.
Advantages of pumpkin seeds extractor
1. high efficient
2. easy operation
3. low seeds breaking rate
4. reasonable price
Working principle of melon seeds extractor
1.The worker put the pumpkin into the hopper of the machine
2.The crushed pumpkin will be transported to the separating drum.
3.The separating shaft will mix, then the pumpkin skin and most of part of the pumpkin flesh will get out of the separating drum, the pumpkin seeds and liquid will get into the mixing box.
4.Because of the moving of the stirring shaft, the pumpkin seeds and the small part pumpkin flesh will get into the cleaning barrel.
5.Because of the moving of the cleaning shaft, the pumpkin and the pumpkin will be separated and cleaned well. The pumpkin seeds will be get out under the pressing of the cleaning shaft.
Technology data of pumpkin seeds extractor
|
Model |
SL-150 |
|
Power |
25-50HP |
|
Capacity |
200-250kg/h (seeds) |
|
Seeds Breaking rate |
1-2% |
|
Weight |
480kg |
|
Dimension |
2800*2200*2200mm |
