Quick Details
-
Transmitter Weight:
-
420g
-
Receiver Current:
-
32mA-89mA
-
Transmitter Current:
-
31mA-115mA
-
Working Temperature:
-
0~40celsius
-
Storage Temperature:
-
-20-60celsius
-
Humidity:
-
80%
-
Output Signal:
-
125kHz
-
Certificate:
-
Ce/ETL/RoHS
Quick Details
-
Place of Origin:
-
China
-
Product Name:
-
New Cable Detector LCD Display
-
Receiver Weight:
-
350g
-
Transmitter Weight:
-
420g
-
Receiver Current:
-
32mA-89mA
-
Transmitter Current:
-
31mA-115mA
-
Working Temperature:
-
0~40celsius
-
Storage Temperature:
-
-20-60celsius
-
Humidity:
-
80%
-
Output Signal:
-
125kHz
-
Certificate:
-
Ce/ETL/RoHS
New Cable Detector LCD Display /Wire Cable Tracker /Circuit Breaker Locator with CE certificate
product description

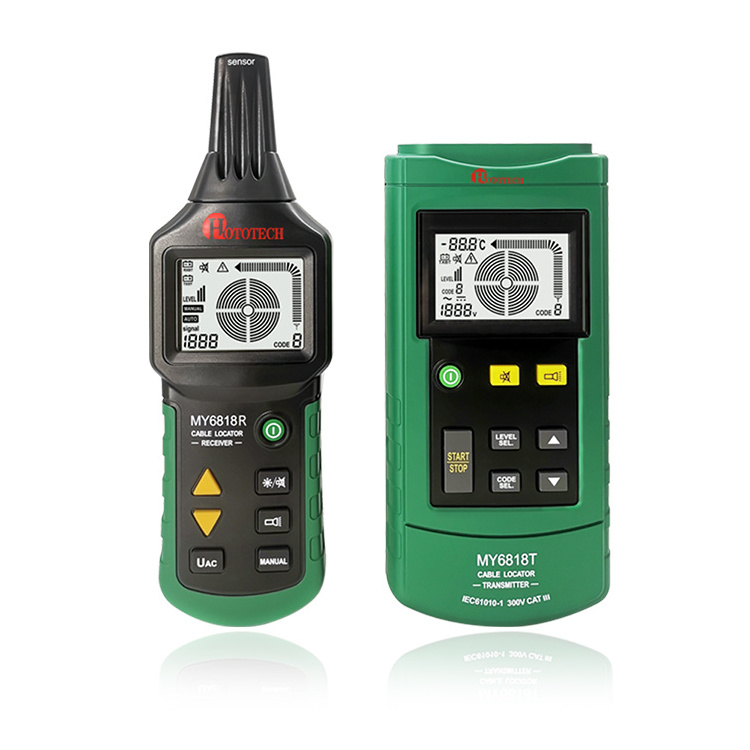

The cable tracker consists of a transmitter and a receiver.
The transmitter provides a modulated AC voltage
The receiver is equipped with a coil.
The coil will generate very little pressure
The receiver's electronic circuitry calculates the voltage and displays it on the display.
application and feature
-Find the Beaks or Shorts in Cable in the wall or Earth
-Track Cables in the wall or Earth
-Find the Fuse and Safeguard
-Find the Beaks or Shorts in Conduit under the Floor
-Track a Metal Conduit in the Project of ware or hot
-Sensitivity of Receiver can be selected
-Auto Ranging,Auto Power Off,Backlight and Worklight
The specifications
| Technical Parameter of Receiver | Technical Parameters of Transmitter | |||
| Depth of Tracking | The Depth of Tracking Depends on the Material and Specific Applications | Output Signal | 125kHz | |
| Cable | Single pole application:about 0~2m | External Voltage | DC12~400V AC12~400V(50~60Hz)±2.5% | |
| Locating | Dual pole application:about 0~0.5m | Fuse | F0.5A 1000V | |
| Mode | Single loop line:Up to 2.5m | MIN Current | about 31mA | |
| MIN Current | About 32mA | MAX Current | about 115mA | |
| MAX Current | About 89mA | In Work | 0~40ºC,with max relative humidity of 80% | |
| In Work | 0~40ºC,with max relative humidity of 80% | In Storage | -20~60ºC,with max relative humidity of 80% | |
| In Storage | -20~60ºC,with max relative humidity of 80% | Altitude | <2000m | |
| Altitude | <2000m | Product Size | 190mm*89mm*42.5/7.48"*3.5"*1.67" | |
| product size | 241.5mm*78mm*38.5mm/9.5"*3"*1.5" | Product Weight | 420g/0.92lb | |
| product weight | 350g/0.77lb | Power Supply | 1*9V 6F22 Battery | |
| power supply | 6*1.5V AAA Battery | |||
