Quick Details
-
Printing speed:
-
90mm/s
-
Paper width:
-
58mm
-
Printing Method:
-
Thermal
-
Item:
-
printer module
-
Module weight:
-
0.23KGS
-
Cutter Life:
-
1,000,000 cuts
-
Product Name:
-
PM628 58mm Thermal Kiosk Parking Ticket Printer
-
Selling points:
-
Compatible with EPSON M-T522
Quick Details
-
Place of Origin:
-
Fujian, China
-
Dimensions:
-
84*36*52.5mm
-
Resolution:
-
8 dots/line
-
Printing speed:
-
90mm/s
-
Paper width:
-
58mm
-
Printing Method:
-
Thermal
-
Item:
-
printer module
-
Module weight:
-
0.23KGS
-
Cutter Life:
-
1,000,000 cuts
-
Product Name:
-
PM628 58mm Thermal Kiosk Parking Ticket Printer
-
Selling points:
-
Compatible with EPSON M-T522

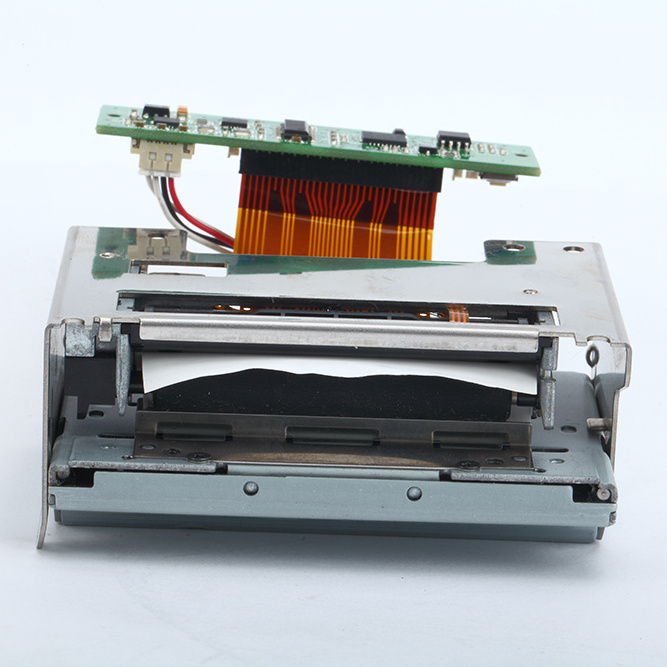

58mm Thermal Receipt Printer Kiosk Ticket Printer for Parking Vending Machine
1. With cutter, mechanism and control board.
2. Print Speed: 90mm/s;
3. Cutter: Guillotine.
| Specification: | ||
| Printing method | Thermal-line dot method | |
| Dot structure | 384 dots/line | |
| Resolution | 8 dots/mm | |
| Dot pitch (Horizontal) | 0.125mm (8dots/mm)- Dot density | |
| Dot pitch (Vertical) | 0.125mm (8dots/mm)- Line feed pitch | |
| Effective printing width | 48mm | |
| Number of columns | ANK 32 columns/line (max. 12x24 dot font) | |
| Paper width | 57mm | |
| Paper thickness | 60-85μm (some paper in this range may not be used because of paper characteristics) | |
| Printing speed | 248 dot lines/s (31mm/s) (at 5.0V); 576 dot lines/s (72mm/s) (at 7.2V); 800 dot lines/s (100mm/s) (at 8.0V). | |
| Interface | TTL | |
| Power supply | For print head | 4.2-8.5 VDC, average current 1.8A(at 5V), 2.6A(at 7.2V), 2.8A (at 8.0V) |
| For motor | 4.2-8.5 VDC, Maximum 0.46A | |
| For cutter motor | 5-9 VDC, Maximum 1A | |
| For logic | 2.7-5.25 VDC, Maximum 0.01A | |
| For module | 5-8.5 VDC, Maximum 5A Rated Voltage: 7V | |
| Dimension | Module | 115x40x64.6mm (W x D x H) |
| Weight | Module | 0.29KG |
| Life | Head | 100 million pulses or more (print ratio= 12.5%) 50km or more |
| Cutter | 1,000,000 cuts | |
| Operating environment | Operating temperature | 0° C to 50° C |
| Operating humidity | 20 to 85% RH (no condensation) | |
| Storage temperature | -25° C to 70° C | |
| Storage humidity | 5 to 95% RH (no condensation) | |
| Detection fuction | Head temperature detection | Via thermistor |
| Head-up detection | Via photo interrupter | |
| Out-off-paper detection | Via photo interrupter | |
**Are you a factory or trading company?
RONGTA is a professional manufacturer of receipt printer and have several experienced in this line. RONGTA has its own ability for manufacture and R&D department for technical supports.
**Can you make OEM or ODM for products?
OEM and ODM products is available for customer, as long as customer meet the MOQ. Also we have engineers for logo and products design for customers.
**Can I get a sample order first to test the quality and compatibility?
As RONGTA is a manufacturer of receipt printer and have sample printers in stock, customers can order sample printer more easily for test.
**Can I work as sales representative in our market?
RONGTA has branch company in the U.S in 2015 year and has some exclusive representative in some countries in the world, like Italy, Russia, Spain and Iran etc. RONGTA always try to protect customers ’ benefit and provide them better supports for market promotion.
