Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine
Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine

Semi Automatic filling sealing machine tube fill seal machine cosmetic cream tube toothpaste tube filling and sealing machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3899
≥5 Sets
US $3499
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
1%
Packaging Type:
Plastic Tube, Pipe, Hoses
Voltage:
AC 110/220V
Place of Origin:
Guangdong, China
Brand Name:
DANREL
Dimension(L*W*H):
1150*770*1420 MM
Weight:
230 KG
Delay Time/Weld time/Hold Time:
0.01-9.99 S
Stroke:
75MM
Tube Diameter:
5-80MM(extra tube holders)
Tube Length:
50-250MM
Operation Mode:
Manual + Auto
Filling Range:
5-500ML(extra filling pistons)
Filling material:
Cream, Gel, Liquid, Ointment
Language:
English
Amplitude Range:
10%-100%
Certification:
CE Certification

Quick Details

Machinery Capacity:
600 tubes per hour
Packaging Material:
Plastic
Filling Material:
Cream, Gel, Ointment, Paste, Liquid, Oil
Filling Accuracy:
1%
Packaging Type:
Plastic Tube, Pipe, Hoses
Voltage:
AC 110/220V
Place of Origin:
Guangdong, China
Brand Name:
DANREL
Dimension(L*W*H):
1150*770*1420 MM
Weight:
230 KG
Delay Time/Weld time/Hold Time:
0.01-9.99 S
Stroke:
75MM
Tube Diameter:
5-80MM(extra tube holders)
Tube Length:
50-250MM
Operation Mode:
Manual + Auto
Filling Range:
5-500ML(extra filling pistons)
Filling material:
Cream, Gel, Liquid, Ointment
Language:
English
Amplitude Range:
10%-100%
Certification:
CE Certification
Product Description

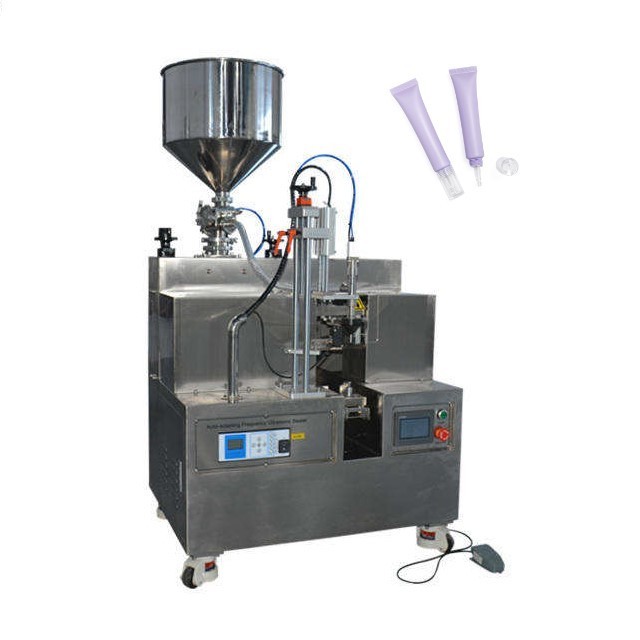

DANREL ULTRASONIC TUBE FILLING SEALING MACHINE

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1. Small size and compact, filling machine sealing machine two in 2.
2. Adopt digital ultrasonic circuit, stable output and performance
3. Machine body of stainless steel, meet with GMP requirement
4. PLC/HMI control, simple operation and parameters setting
5. Machine with mark searching function, more precise sealing
6. Main parts adopt imported components, Japan and Taiwan
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:
* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving


Functions:
1. Tube Filling
2. Mark Searching
3. Ultrasonic Sealing
4. Cutting (trimming)
5. Batch No Coding
6. PLC/HMI control, English/French/Espanol interface as request
7. Capacity is around 10 tubes/min
8. Stainless steel body, Meet with GMP requirement
9. Meet with CE requirement.

Model No
DR-2012TF
Ultrasonic Power
2600 W
Frequency
20 KHz
Power Supply
AC 110/220V, 50/60Hz
Delay Time
0.01-2.99 S
WeldTime
0.01-2.99 S
Hold Time
0.01-2.99 S
Driven Mode
Pneumatic
Stroke
75MM
Working Pressure
0.5-0.7 MPa
Tube Diameter Range
10-50 MM
Tube Height Range
50-200 MM
Filling Range
A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Capacity
around 10 tubes/min
Packing Dimension
L*W*H 1110*840*1510MM=1.4CBM
Gross Weight
230KGS

It's applicable to toothpaste, cosmetic, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Detailed Images

FILLING MACHINE

1. Multiple purpose filling system which can fill cream, gel, liquid, ointment, etc.


2. Every part can be removed for easy cleaning.


3. Filling parts material: SUS304 or SUS316L(extra costs).


4. Filling Precision: 1%


FILLING NOZZLE

Anti-drip filling nozzle for liquid, cream, gel, ointment, etc


PLC TOUCH SCREEN

1. Easy operation touch screen for quick setting. 2. English operation interface.


TUBE ORIENTATION

1. Using high sensitivity Japan-Imported infrared positioning system, plastic tube will be turning to right side according to the mark on the tube


2. Sensor Brand: Panasonic



ULTRASONIC HORN

1. 7075 high quality Aluminium.


2. Chrome-plating ultrasonic horn, more durable.


3. Sealing and coding at the same time.

Packing & Delivery
Packaging
Size
L*W*H=1110*840*1510MM
Weight
230 KGS



Packaging Details
The normal package is Plywood box(Size: L*W*H). Fumigation certificate can be provided if needed.
If container is too tight,we will use pe film for packing or pack it according to customers special request.
Fragile parts will be separately packed with cushion packing material
