Quick Details
-
RF Output frequency:
-
45-870 MHz Agile
-
Video GOP Structure:
-
IBBP
-
Audio Encoding:
-
MPEG-1 Layer 2, HE-AAC,LC-AAC
-
Audio Resolution:
-
24-bit
-
Output:
-
RF Output
-
Audio Sampling rate:
-
48KHz
-
Audio Bit-rate:
-
64Kb/s~384Kb/s each channel
-
Advanced Pretreatment:
-
De-interlacing, noise reduction, sharpening
-
Video Rate Control:
-
CBR/VBR
-
Video Bit-rate:
-
0.8Mbps~19ps (each channel)
Quick Details
-
Place of Origin:
-
shangdong
-
Brand Name:
-
OEM
-
Model Number:
-
HY892
-
RF Output frequency:
-
45-870 MHz Agile
-
Video GOP Structure:
-
IBBP
-
Audio Encoding:
-
MPEG-1 Layer 2, HE-AAC,LC-AAC
-
Audio Resolution:
-
24-bit
-
Output:
-
RF Output
-
Audio Sampling rate:
-
48KHz
-
Audio Bit-rate:
-
64Kb/s~384Kb/s each channel
-
Advanced Pretreatment:
-
De-interlacing, noise reduction, sharpening
-
Video Rate Control:
-
CBR/VBR
-
Video Bit-rate:
-
0.8Mbps~19ps (each channel)
Product Description
Specification
|
item
|

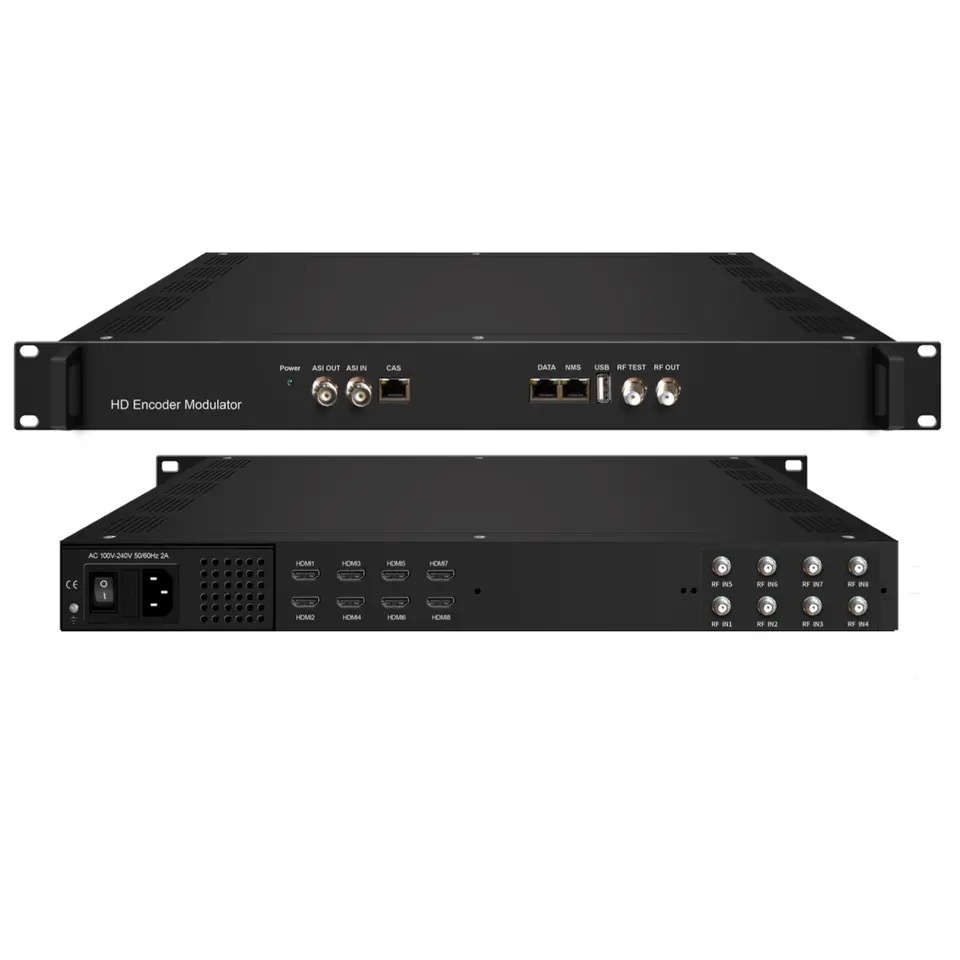

HD ISDB-T DVB-C DVB-T/T2 RF HD to RF Encoder Modulator
|
|
Private Mold
|
NO
|
|
Place of Origin
|
shangdong
|
|
Brand Name
|
OEM
|
|
Model Number
|
HY892
|
|
RF Output frequency
|
45-870 MHz Agile
|
|
Video GOP Structure
|
IBBP
|
|
Audio Encoding
|
MPEG-1 Layer 2, HE-AAC,LC-AAC
|
|
Audio Resolution
|
24-bit
|
|
Output
|
RF Output
|
|
Audio Sampling rate
|
48KHz
|
|
Audio Bit-rate
|
64Kb/s~384Kb/s each channel
|
|
Advanced Pretreatment
|
De-interlacing, noise reduction, sharpening
|
|
Video Rate Control
|
CBR/VBR
|
|
Video Bit-rate
|
0.8Mbps~19ps (each channel)
|
Product Overview
NDS3536S is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation
functions in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input and 128 IP
inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS
output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes
it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar,
hospital, apartment…
Key features
8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, MPEG-4 AVC/H.264 Video encoding
1 ASI input for re-mux
1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system
FAT 32)
128 IP input over UDP and RTP via GE port
Each carrier out channel process maximum 32 IP from the GE port (UDP&RTP protocol)
MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
Support 12ch DVB-C RF out (8ch/16ch DVB-T, 8ch ATSC, or 6ch/16ch ISDB-T out for option, as per order)
Support 1 ASI out as mirror of one of RF output carriers---Optional
Support MPTS IP output over UDP, RTP/RTSP
Support LOGO, Caption and QR code insertion (Language Supported: English, for more languages please consult us…)
Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web
NDS3536S is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation
functions in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input and 128 IP
inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS
output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes
it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar,
hospital, apartment…
Key features
8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, MPEG-4 AVC/H.264 Video encoding
1 ASI input for re-mux
1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system
FAT 32)
128 IP input over UDP and RTP via GE port
Each carrier out channel process maximum 32 IP from the GE port (UDP&RTP protocol)
MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
Support 12ch DVB-C RF out (8ch/16ch DVB-T, 8ch ATSC, or 6ch/16ch ISDB-T out for option, as per order)
Support 1 ASI out as mirror of one of RF output carriers---Optional
Support MPTS IP output over UDP, RTP/RTSP
Support LOGO, Caption and QR code insertion (Language Supported: English, for more languages please consult us…)
Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
Control via web management, and easy updates via web
