Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
bass/Steel
-
Thread:
-
NPT G BSP
-
Warranty:
-
1 Year
-
Pressure:
-
27.6
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Hexagon
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
bass/Steel
-
Thread:
-
NPT G BSP
-
Warranty:
-
1 Year
-
Pressure:
-
27.6

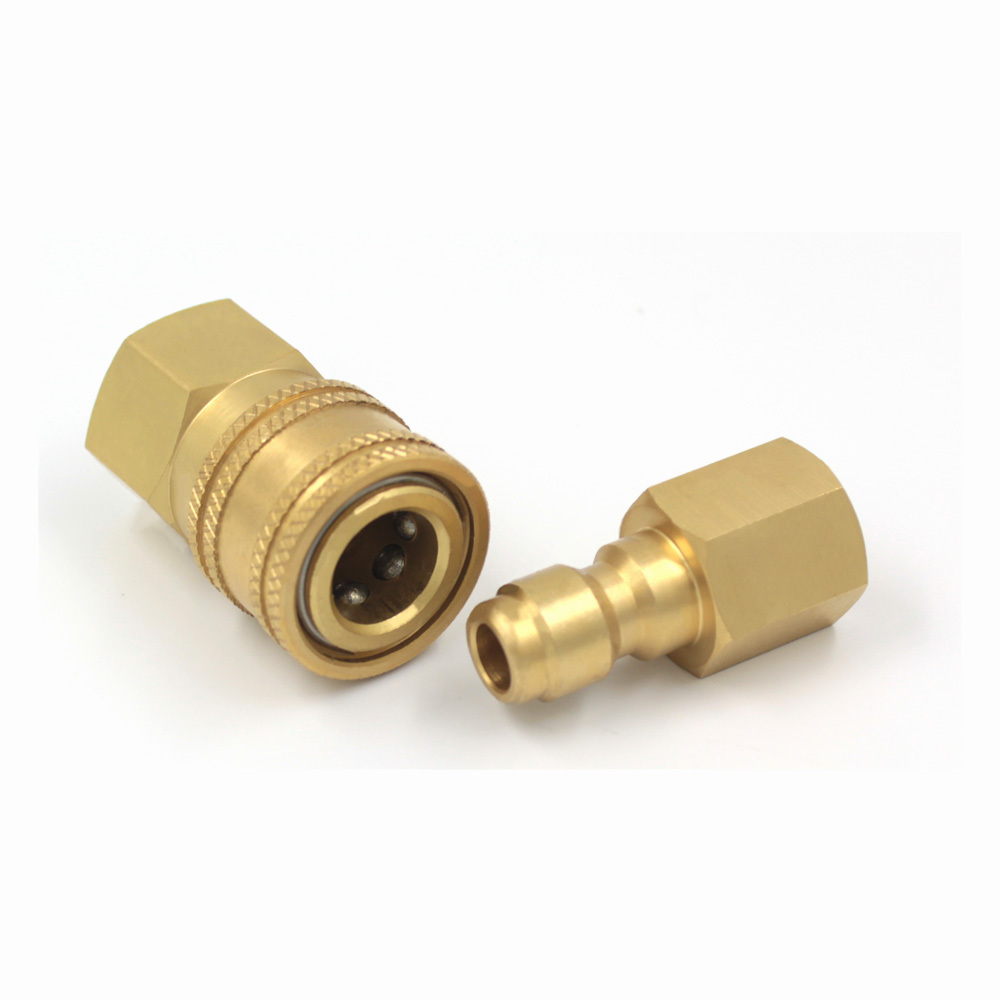

Non-Valve series 1/4 size BSP/NPT Thread quick connect fluid coupling &brass quick connect water hose fittings
Feature:
1. Smooth, open bore design with no valving in either half offers minimal pressure drop
2. Easy cleaning in applications where the same lines are used for more than one media
3. Machined from solid barstock, providing a quality coupling that is durable
4. Available in brass and 303 stainless Steel as standard
| Body Size(in) | Code | Rated Pressure(Mpa) | Rated Flow(L/min) | Temperature Range(NBR) | Temperature Range(Fkm) |
| 1/4 | 02 | 7 | 45.5 | -20~100 ℃ | -20~180℃ |
Application:
The GT-K1 Series are non-valved couplings for applications where maximum flow is required. Their somooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
