Quick Details
-
Voltage:
-
380v 50hz
-
Dimension(L*W*H):
-
3.65*2.25*1.7m
-
Weight:
-
1700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Feed processing
-
Power standard:
-
380v 50hz three phases
-
After-sale service provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Application:
-
Poultry Farm
-
Name:
-

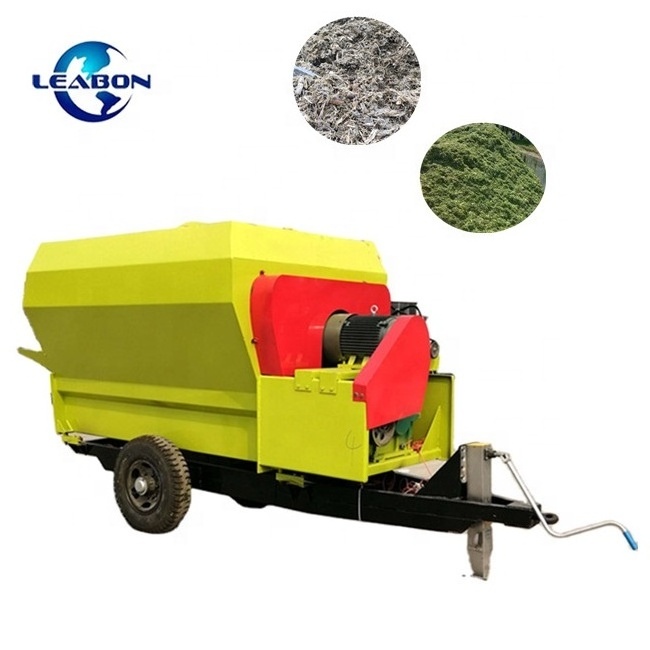

TMR Feed Mixer Machine
-
Final product:
-
Animal Feed Food
-
Function:
-
crush and mixing
Quick Details
-
Max. Capacity:
-
1ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leabon
-
Voltage:
-
380v 50hz
-
Dimension(L*W*H):
-
3.65*2.25*1.7m
-
Weight:
-
1700 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Feed processing
-
Power standard:
-
380v 50hz three phases
-
After-sale service provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Application:
-
Poultry Farm
-
Name:
-
TMR Feed Mixer Machine
-
Final product:
-
Animal Feed Food
-
Function:
-
crush and mixing
Product Description
(1) This product has advanced and reasonable design, the bottom of the trough adopt high quality alloy steel production, safe and reliable work. Made of unique cutting blades with high wear-resistant materials, dragon blade material with high-quality high-alloy steel, thus greatly improving the product's life.
(2) The product is flexible and convenient operation, safe and reliable.
(3) Each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
(2) The product is flexible and convenient operation, safe and reliable.
(3) Each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
Specification
Specification of vertical feed mixer:
|
Model
|
9TMRL-5
|
9TMRL-9
|
9TMRL-12 |
9TMRL-16 |
|
Motor Power(kw)
|
15
|
22
|
30
|
22+22
|
|
Capacity(T/H)
|
2-3t/h
|
4-5t/h
|
6-7t/h
|
8-10t/h
|
|
QTY of blades(PCS)
|
5
|
8
|
8
|
16
|
|
QTY of twisted dragon(PCS)
|
1
|
1
|
1
|
1
|
|
Bottom plate thickness
|
14mm
|
16mm
|
16mm
|
18mm
|
|
Side plate thickness
|
5mm
|
8mm
|
8mm
|
8mm
|
|
QTY of twisted dragon(PCS)
|
Nanchang JiangLing
|
Nanchang JiangLing
|
Nanchang
JiangLing |
Nanchang
JiangLing |
|
Dimension(mm)
|
3100*1900*2100mm
|
3900*2300*2500m
|
4600*2400*2600m
|
5800*2500*2600m
|
|
Weight（kg）
|
1900kg
|
2800kg
|
3600kg
|
5000kg
|
Horizontal TMR mixer:
|
Model
|
9TMRW3
|
9TMRW-5
|
9TMRW-9
|
9TMRW-12
|
|
Motor Power(kw)
|
11
|
15
|
22
|
30
|
|
Capacity(kg/h)
|
1000-1500kgs/h
|
2000-3000kgs/h
|
4000-5000kgs/h
|
6000-7000kgs/h
|
|
QTY of blades(PCS)
|
33
|
40
|
58
|
69
|
|
QTY of twisted dragon(PCS)
|
3
|
3
|
3
|
3
|
|
Bottom plate thickness
|
5mm
|
6mm
|
8mm
|
10mm
|
|
Side plate thickness
|
4mm
|
5mm
|
6mm
|
6mm
|
|
Reducer
|
Jiangsu JZQ400
|
Jiangsu Guomao R137
|
Jiangsu Guomao R147
|
Jiangsu Guomao R149
|
|
Dimension(mm)
|
3600*1700*1900
|
3900*1800*2100
|
4600*2000*2500
|
5300*2200*2600
|
|
Weight（kg）
|
1700
|
2300
|
3200
|
4100
|
Details Images
Features:
1 TMR mixer can directly mix various feeds such as hay, straw, silage.
2 When the feed is processed, the coarse fiber will not be destroyed.
3 The mixing chamber body has less wear and long service life.
4 With automatic weighing device, the amount of addition can be set at any time.
5 Feed mixing uniformity is high, energy intake is balanced, and milk production is increased.
1 TMR mixer can directly mix various feeds such as hay, straw, silage.
2 When the feed is processed, the coarse fiber will not be destroyed.
3 The mixing chamber body has less wear and long service life.
4 With automatic weighing device, the amount of addition can be set at any time.
5 Feed mixing uniformity is high, energy intake is balanced, and milk production is increased.
