Quick Details
-
Brand Name:
-
Kumanical
-
Model Number:
-
QPM11
-
Max. Current:
-
0,5(0,2)A / 48 Vac-dc
-
Max. Working Pressure:
-
300bar
-
Certification:
-
/
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
0,5(0,2)A / 48 Vac-dc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kumanical
-
Model Number:
-
QPM11
-
Max. Current:
-
0,5(0,2)A / 48 Vac-dc
-
Max. Working Pressure:
-
300bar
-
Certification:
-
/
1.Specification:
Switch rating |
0,5(0,2)A / 48 Vac-dc |
|
Electrical connection |
Push-on terminals 6,3x0,8 |
|
Adjusting range |
0.2…2 bar; 2...10 bar; 10...20 bar; 20...50 bar |
|
Max static pressure |
80 bar or 300 bar (according to the possible pressure range) |
|
Hysteresis |
Fixed |
|
Operating temperature |
-5°C ... +60°C |
|
Contact (without pressure) |
N.O. or N.C. |
|
Body material |
Brass (standard) – Tropicalized Steel (standard) |
|
Diaphragm |
NBR (standard) |
|
Threads |
Taper: G1/8” |
|
Protection |
IP00 (terminals) IP54 (with CAP1 and CAP10) |
|
Mechanical life |
10 6 operations |
|
Size |
Body 24 AF Max height 50 mm |

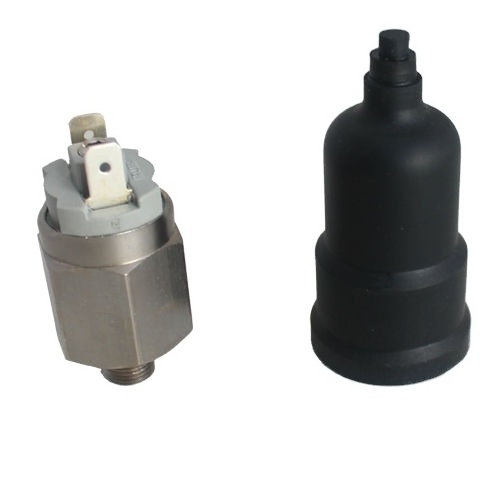

2.Product Show:
Packing:
