Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
GQ12F2-10E
-
Product Name:
-
12MM Metal Push Button
-
Button Type:
-
Flat Button
-
Function:
-
SPST 1NO Latching/Momentary
-
LED Voltage:
-
6V/12V/24V/220V
-
LED Color:
-
Red Yellow Green White Blue
-
Contact Rating:
-
3A 250VAC; 6A 125VAC/3A 36VDC; 6A 12VDC
-
Material:
-
Stainless Steel/ Nickel-plated Copper/ Black Aluminum Oxide
-
Certification:
-
CE, RoHS
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
6A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
GQ12F2-10E
-
Product Name:
-
12MM Metal Push Button
-
Button Type:
-
Flat Button
-
Function:
-
SPST 1NO Latching/Momentary
-
LED Voltage:
-
6V/12V/24V/220V
-
LED Color:
-
Red Yellow Green White Blue
-
Contact Rating:
-
3A 250VAC; 6A 125VAC/3A 36VDC; 6A 12VDC
-
Material:
-
Stainless Steel/ Nickel-plated Copper/ Black Aluminum Oxide
-
Certification:
-
CE, RoHS
* 【Function】Latching or Momentary you can choose from.
Latching= Press the button - POWER ON, Release your finger - Maintain POWER ON, Press the button again - POWER OFF.
Momentary= Press the button - POWER ON, Release your finger - POWER OFF.
*【Installation】This push button requires 12mm (1/2'') Panel Mounting Hole Size. Switch Head Diameter: 12mm with Round Flat Shape Actuator.
*【Connector】The switch have connectors, with the Wire Harness will be easier connection of circuit.
*【Protection】IP65 waterproof sealed push button switch, can be used in outdoor, wet or dusty environment.
*【Application】Widely used to Control LEDs and Circuit,can be used on Car, RV, Boat, Marine, Vehicle, Auto, Truck, Househood, Coffee Machine, industrial equipment, Medical Equipment...
Products Description
|
Product Name
|

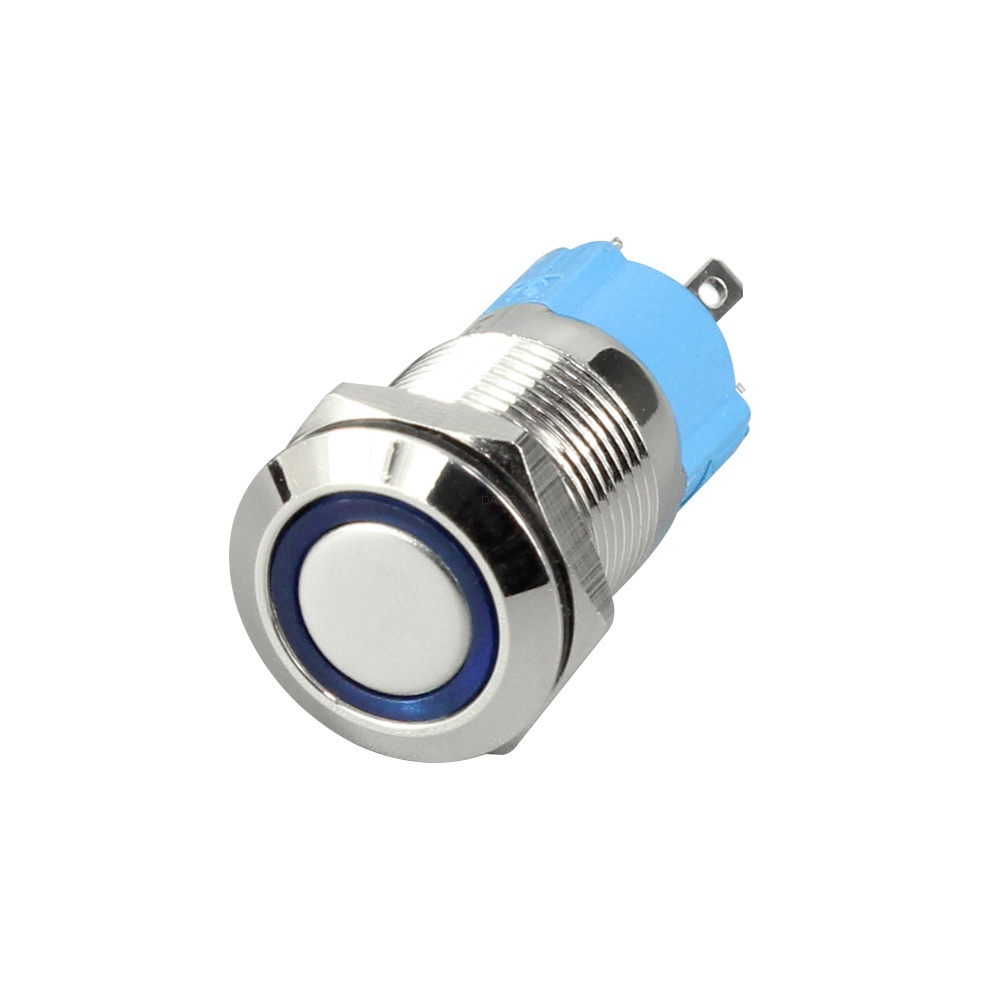

GQ12F2-10E 12MM Metal Push Button
|
|
Button Type
|
Flat Button
|
|
Function
|
SPST 1NO Latching/Momentary
|
|
LED
|
Ring Illuminated
|
|
LED Voltage
|
6V/12V/24V/220V
|
|
LED Color
|
Red Yellow Green White Blue
|
|
Contact Rating
|
3A 250VAC; 6A 125VAC/3A 36VDC; 6A 12VDC
|
|
Material
|
Stainless Steel/ Nickel-plated Copper/ Black Aluminum Oxide
|
——
Products
Details
——
Workshop
Product Certified
Exhibition
Our team
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Yes. we have a research & development dept.
