Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, Dst, nc, out, yln, etc.
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEMING
-
Dimension(L*W*H):
-
1900*1060*1100mm
-
Weight (KG):
-
260 KG
-
Feature:
-
Cutting & Engraving
-
Product name:
-
60 aser engraving and cutting machine
-
Keywords:
-
non-metal laser engraving machine;CO2 laser engraver
-
Usage:
-
non-metal cutting
-
Power supply:
-
220V / 50Hz
-
Repeated positioning accuracy:
-
±0.1mm/m
-
Cooling mode:
-
water cooling
-
Chiller:
-
external
-
Water chiller:
-
cw5200
-
Working environment:
-
temp: 5~40℃ humidity: 5~80% clean, less dust
-
Marketing Type:
-
New Product 2023
Quick Details
-
Engraving Area:
-
600*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0~500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, Dst, nc, out, yln, etc.
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUEMING
-
Dimension(L*W*H):
-
1900*1060*1100mm
-
Weight (KG):
-
260 KG
-
Feature:
-
Cutting & Engraving
-
Product name:
-
60 aser engraving and cutting machine
-
Keywords:
-
non-metal laser engraving machine;CO2 laser engraver
-
Usage:
-
non-metal cutting
-
Power supply:
-
220V / 50Hz
-
Repeated positioning accuracy:
-
±0.1mm/m
-
Cooling mode:
-
water cooling
-
Chiller:
-
external
-
Water chiller:
-
cw5200
-
Working environment:
-
temp: 5~40℃ humidity: 5~80% clean, less dust
-
Marketing Type:
-
New Product 2023
Product Description
Specification
|
Application
|
Laser Engraving
|
|
Applicable Material
|
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
|
|
Engraving Area
|
600×400mm
|
|
Laser Type
|
CO2
|
|
Engraving Speed
|
0~500mm/s
|
|
Graphic Format Supported
|
AI, PLT, DXF, Dst, nc, out, yln, etc.
|
|
Condition
|
New
|
|
CNC or Not
|
Yes
|
|
Cooling Mode
|
WATER COOLING
|
|
Place of Origin
|
China
|
|
Brand Name
|
YUEMING
|
|
Dimension(L*W*H)
|
1900*1060*1100mm
|
|
Laser Source Brand
|
RECI
|
|
Optical Lens Brand
|
RuiDa
|
|
Weight (KG)
|
260KG
|
|
Key Selling Points
|
Multifunctional
|
|
Warranty
|
1 Year
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Pump, Software, Laser Source, Chiller, Lens, Control board, laser cutting head
|
|
Mode of Operation
|
continuous wave
|
|
Configuration
|
bench-top
|
|
Feature
|
Cutting & Engraving
|
|
Product name
|
60 aser engraving and cutting machine
|
|
Keywords
|
non-metal laser engraving machine;CO2 laser engraver
|
|
Usage
|
non-metal cutting
|
|
Power supply
|
220V / 50Hz
|
|
Repeated positioning accuracy
|
±0.1mm/m
|
|
Cooling mode
|
water cooling
|
|
Chiller
|
external
|
|
Water chiller
|
cw5200
|
|
Working environment
|
temp: 5~40℃ humidity: 5~80% clean, less dust
|
|
Marketing Type
|
New Product 2023
|

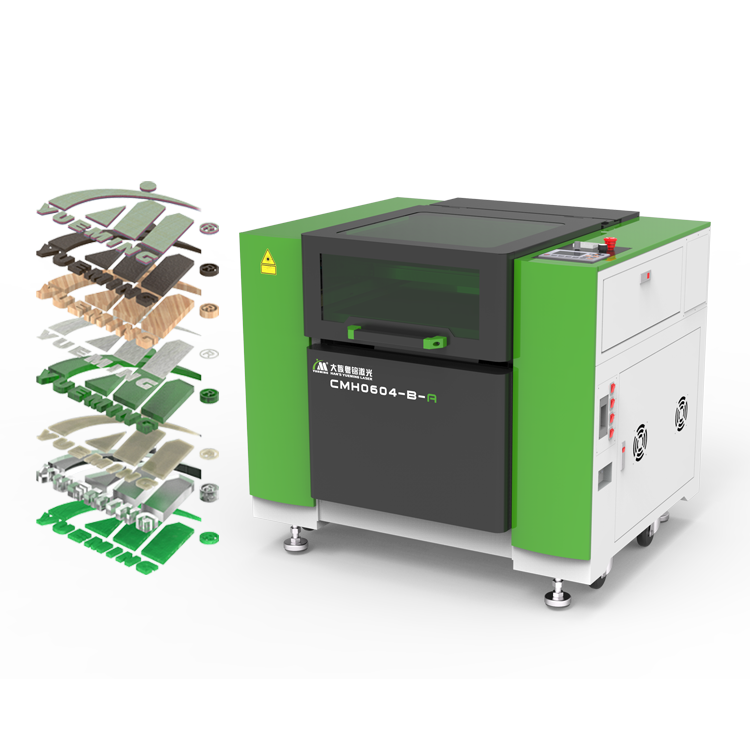

CO2 LASER CUTTING MACHINE
PARAMATER
|
Working Area
|
600*400mm
|
|
Transmission System
|
Self-made inner rail
|
|
Repeated Positioning Accuracy
|
+0.1mm
|
|
Laser Power(Optional)
|
60/80/100/130W
|
|
Moving Speed
|
0~500mm/s
|
|
Equipment Power
|
<1.25kW
|
|
Support Graphics Formats
|
PLT,Al, DXF,DST,DSB, BMP,JPG, PNG,etc.
|
|
Working Environment
|
Temper: 5~40°C;Humidity: 5~80%, non-condensing
|
|
Voltage
|
220V; 50Hz
|
|
Total Weight
|
260kg
|
