The connectors are available in orange, red and black colors.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
Battery Storage Connector
-
Product Name:
-
Energy Storage Connector
-
Contact Size:
-
6mm / 8mm / 12mm / 14mm
-
Rated Current:
-
60A 100A 120A 150A 200A 250A 350A 400A 500A
-
Rated Voltage:
-
1500V DC Max
-
Termination Style:
-
Crimp type
-
Socket:
-
Inner Screw / Ouret Screw / Busbar Lug
-
Color Option:
-
Red / Black / Orange
-
Certificate:
-
CE ROHS
Quick Details
-
Type:
-
HV Connector
-
Application:
-
Energy Storage
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
Battery Storage Connector
-
Product Name:
-
Energy Storage Connector
-
Contact Size:
-
6mm / 8mm / 12mm / 14mm
-
Rated Current:
-
60A 100A 120A 150A 200A 250A 350A 400A 500A
-
Rated Voltage:
-
1500V DC Max
-
Termination Style:
-
Crimp type
-
Socket:
-
Inner Screw / Ouret Screw / Busbar Lug
-
Color Option:
-
Red / Black / Orange
-
Certificate:
-
CE ROHS
Full Series
Energy
Storage Connector
Product Description
Connector for Energy Storage Systems
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).
Energy storage connectors are mainly used to connect battery modules of energy storage systems in series, making it safer for workers to install energy storage systems (ESS).
Energy Storage Connectors meet customers’ critical technical indicators such as plugging force, insulation resistance, dielectric strength, and temperature rise through professional CAE simulation design. They are widely used in energy storage, new vehicles, and other industries.
ESS designers can use the connectors in tandem or separately based on the specific application requirements. The battery storage connectors are installed on the front of battery modules, while the connectors are installed on the back.
The energy storage connectors rotate 360 degrees , so they can accommodate the best angle to arrange heavy cabling. They have mechanical coding that protects against polarity reversal and prevents incorrect mating.
The battery storage connectors have a drawer-style , slide-in connection , eliminating the need for field wiring. The modular connection system can be scaled to meet application requirements, removing the constraints of cabling and allowing higher power distribution.
ESS designers can use the connectors in tandem or separately based on the specific application requirements. The battery storage connectors are installed on the front of battery modules, while the connectors are installed on the back.
The energy storage connectors rotate 360 degrees , so they can accommodate the best angle to arrange heavy cabling. They have mechanical coding that protects against polarity reversal and prevents incorrect mating.
The battery storage connectors have a drawer-style , slide-in connection , eliminating the need for field wiring. The modular connection system can be scaled to meet application requirements, removing the constraints of cabling and allowing higher power distribution.
Products Detail
|
Manufacturer
|
Renhotec
|
|
Type
|
Plug / Socket
|
|
Orientation
|
Straight / Right Angled
|
|
Contact Size
|
6mm / 8mm / 12mm / 14mm
|
|
Rated Current
|
60A / 100A / 120A / 150A / 200A / 250A / 300A / 350A / 400A / 500A
|
|
Rated Voltage
|
1500V Max
|
|
Shielding
|
Shielded / Unshielded
|
|
Contact Finish
|
Silver
|
|
Protection Rating
|
IP54 / IP67
|
|
Color
|
Orange / Red / Black
|
|
Contact Material
|
Copper
|
|
Temperature Range
|
-40°C~ +125°C
|
Products Feature
Suitable for Installation Environment ,
Three Colors Available

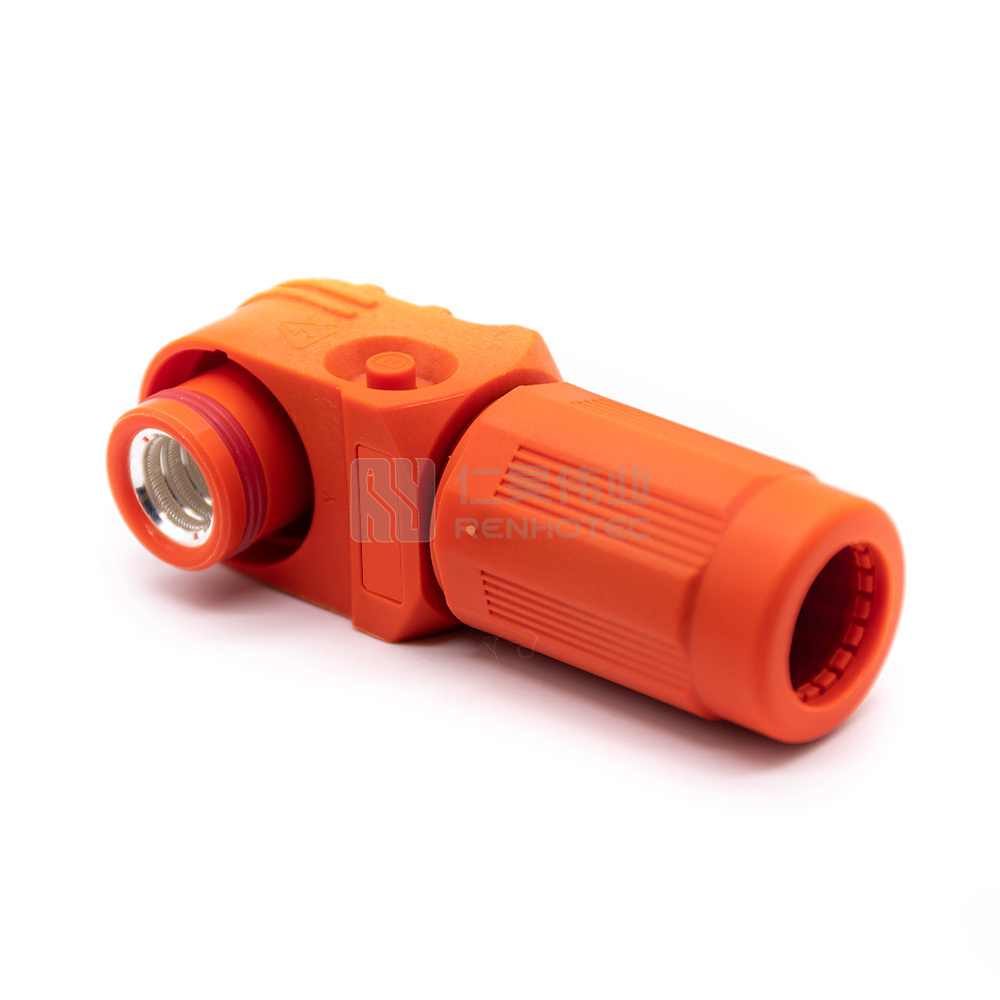

The connectors are available in orange, red and black colors.
In addition to connectors, we can customize various energy storage connector harnesses to suit your needs.
Energy storage connector harnesses can be adapted to 60A~350A rated current and 10mm²~95mm².
Three Types of Terminals are Available
The receptacles of energy storage connectors are available with three types of terminals: copper plate thread, female
thread, and male thread.
You can choose the socket with the correct terminal block according to your specific installation environment.
thread, and male thread.
You can choose the socket with the correct terminal block according to your specific installation environment.
Unique Contact Piece Design
Our connectors use the Flexcoils finger technology, small size, high current carrying capacity, compared to the same size of the terminal, can have more current.
Anti-mistake Touch & 360°Rotation & Slide-in Connection
When the plug is inserted into the socket, you will hear a 'click'. Press the button to pull out the plug.
