Seaweed, as algae growing in the sea, it is cryptogam of plant kingdom. Algae includes many different types of living beings live in photosynthesis. They are usually known as simple plant, main features are: No vascular bundle organization, no differentiation phenomenon of real root, stem and leaf; No flower, no fruit and seeds; No specialized protective tissue for reproductive organs, it often produces spores or gamete directly from single cells; No embryo formation. As structure of algae is very simple, it is attributed to "thallus flora" of low-grade plan together with fungus by some botanists. Seaweeds are very rich in Southeast Asia, such as Malaysia.Our company has successfully applied DWB Series Mesh Belt Dryer for drying seaweeds and desiccated coconut in many countries.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
12.5*2.5*3.3 (m)
-
Weight:
-
9500 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Power:
-
50HZ
-
Product name:
-

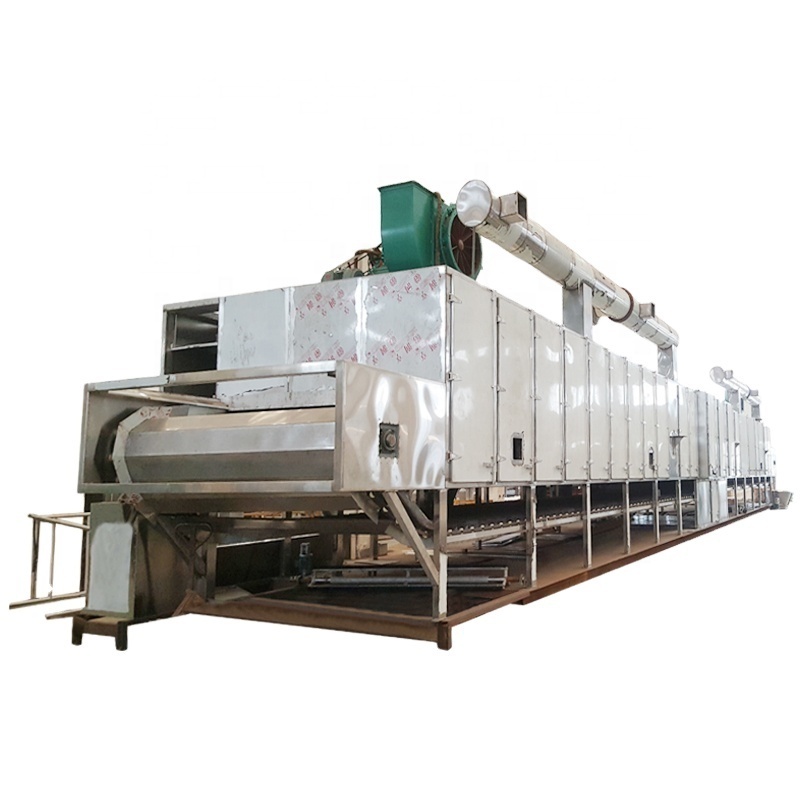

Desiccated coconut belt dryer
-
Output capacity:
-
200Kg/h
-
Model:
-
DWB-1.5*10
-
Primary water:
-
50 - 55%
-
Final water:
-
3%
-
Heating source:
-
Steam heating
-
Inlet air temperature:
-
100-120C (adjustable)
-
Outlet air temperature:
-
45-55C (adjustable)
-
Steam consumption:
-
433Kg/h
-
Certification:
-
CE, IS014001, ISO9001
Quick Details
-
Machinery Capacity:
-
200Kg/h
-
Brand Name:
-
BZ
-
Year:
-
2020
-
Dimension(L*W*H):
-
12.5*2.5*3.3 (m)
-
Weight:
-
9500 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Power:
-
50HZ
-
Product name:
-
Desiccated coconut belt dryer
-
Output capacity:
-
200Kg/h
-
Model:
-
DWB-1.5*10
-
Primary water:
-
50 - 55%
-
Final water:
-
3%
-
Heating source:
-
Steam heating
-
Inlet air temperature:
-
100-120C (adjustable)
-
Outlet air temperature:
-
45-55C (adjustable)
-
Steam consumption:
-
433Kg/h
-
Certification:
-
CE, IS014001, ISO9001
Products Description
Description of
DWB Industrial Tunnel Microwave belt Dryer Sterilizer Oven Machine for Pistachio Walnut Almond Nuts Spices desiccated coconut and
marine alga industry
Why Choose Us
Our Advantages
1.Engineers available to service machinery overseas (All counties).
2. Overseas service center available (some countries).
3. Overseas third-party support available (some countries).
4. Our engineer have above 15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edits etc.
5. We have rich project management experience and advanced site construction technology; we obtained good performance and well-known reputation.
6. We can show you the best price and high-quality machine.
7. We can show you the best price for our old customers, all new customers we will give 5% discount for the first time.
Applicable Scenarios
Product Parameters
|
|
DWB 1.6x22
|
DWB 2.5x22
|
DWB 1.6x22
|
DWB 1.6x22
|
|||
|
Drying area (m2)
|
33.6
|
52.5
|
33.6
|
33.6
|
|||
|
Cooling area (m2)
|
1.6
|
2.5
|
1.6
|
1.6
|
|||
|
Length and width of drying section
|
20x1.6
|
20x2.5
|
20x1.6
|
20x1.6
|
|||
|
Length and width of cooling section
|
1x1.6
|
1x2.5
|
1x1.6
|
1x1.6
|
|||
|
Drying temperature (°C)
|
50-150
|
|
|
|
|||
|
Drying time (min)
|
30-180
|
|
|
|
|||
|
Speed of belt (m/min)
|
0-0.6
|
|
|
|
|||
|
Drive power (kw)
|
2.2
|
3
|
2.2
|
2.2
|
|||
|
Fan quantity (unit)
|
16
|
|
|
|
|||
|
Installed power (kw)
|
73.7
|
102
|
73.7
|
73.7
|
|||
|
Water evaporation (kg/H2O)
|
400-600
|
630-950
|
400-600
|
400-600
|
|||
Process Flow Diagram
Various Specifications Available
DWB belt dryer type
According to different customer requirements, according to the customer's material characteristics, there are a variety of specifications and models of DWB. Please contact customer service for specific information.
FBD Fluid Bed dryer type
According to different customer requirements, according to the customer's material characteristics, there are a variety of specifications and models of FBD. Please contact customer service for specific information.
Stainless steel material
According to different customer requirements and material characteristics, the equipment can be made of stainless steel, such as 304, 316, and 2205. Please contact customer service for specific information.
Carbon steel material
According to different customer requirements and material characteristics, the equipment can be made of carbon steel, such as A3 and Q235. Please contact customer service for specific information.
Intelligent PLC control
According to different customer requirements, intelligent PLC control is optional for the electronic control of the equipment. Please contact customer service for specific information.
Manual button control
According to different customer requirements, the electronic control of the equipment has button control options. Please contact customer service for specific information.
