Diameter 30 meters round hdpe floating aquaculture traps for fish farming

Diameter 30 meters round hdpe floating aquaculture traps for fish farming

FOB Reference Price: Get Latest Price

≥10 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: ZS-FN-001

Material:: HDPE

Diameter:: as your request

Shape:: round or square

Certificate:: ISO4427,CE

Advantage:: Durable,strong

Color:: black or as request

shape:: round,square,or as request

connection:: fitting

Feature:: Eco-Friendly,

Mesh Size:: 10-25mm or as request

Usage place:: lake,pool,,river,sea

Frame material:: hdpe

Net:: PE or nylon

Quick Details

Use:: fish or crab or others

Instruction for use:: Available

Brand Name:: ZHUOSHI

Model Number:: ZS-FN-001

Material:: HDPE

Diameter:: as your request

Shape:: round or square

Certificate:: ISO4427,CE

Advantage:: Durable,strong

Color:: black or as request

shape:: round,square,or as request

connection:: fitting

Feature:: Eco-Friendly,

Mesh Size:: 10-25mm or as request

Usage place:: lake,pool,,river,sea

Frame material:: hdpe

Net:: PE or nylon

Product Description

Diameter 30 meters round hdpe floating aquaculture traps for agriculture fish farming

HDPE Circular Fish Cage

Circular Hdpe fish cage,circumference range from 30 meters to 120 meters.

The construction is designed to flex with the forces of the sea,providing a robust platform with easy access but with incressed strength to withstand the rigours of more exposed waters.

HDPE Square Fish Cage

square aquaculture traps PE material

The floating cage technology ensures the fish grow in a controlled environment with a monitored diet plan away from predators.
Square fish cages are suitable for inland waters, for example, lake, river, lagoon, dam and etc. Popular cage sizes are 3mx3m, 4mx4m,5mx5m, 6mx6m, 7mx7m and 8mx8m

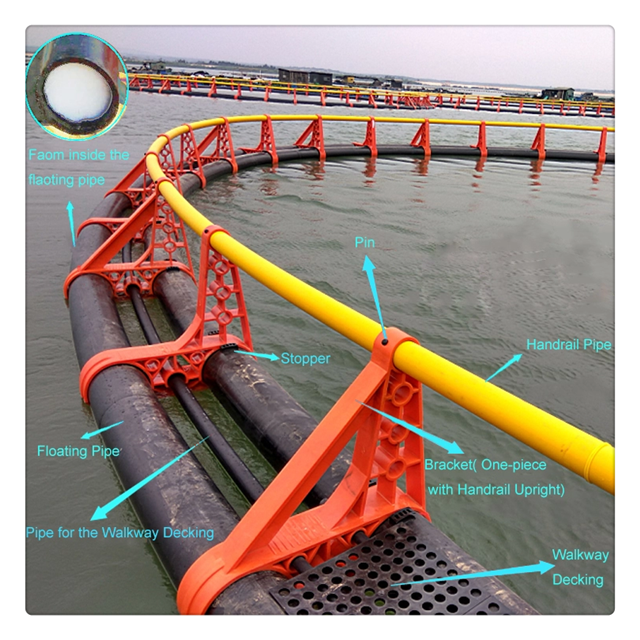

Construction of the cage frame:

Diameter 30 meters round hdpe floating aquaculture traps for agriculture fish farming

Specification

Diameter 30 meters round hdpe floating aquaculture traps for agriculture fish farming

Circular Cage Model	Z200	Z250	Z315	Z400
Cage Circumference(m)	30 to 60	40 to 80	60 to 120	90-160
Depth(M)	-5 to -60	-5 to -60	-5 to -60	-5 to -60
Floating Pipe Dia(mm)	200	250	315	400
Handrail Pipe Dia(mm)	90	110	110	125
Standing Pipe Dia(mm)	110	125	125	140
Backet Separation(m)	2	2	2	2
Net	Nylon/PE/PP	Nylon/PE/PP	Nylon/PE/PP	Nylon/PE/PP
Styrofoam Filling	Option	Option	Option	Option
Walkway Decking	Option	Option	Option	Option

Performance parameters of Circular Cage:

Diameter 30 meters round hdpe floating aquaculture traps for agriculture fish farming

1)Anti-Windstorm capacity:Maximum grade 11
2) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m

Square Structure	4mx4m	5mx5m	6mx6m	7mx7m	8mx8m
Floating pipe	HDPEФ200mm	HDPEФ200mm	HDPEФ200mm	HDPEФ250mm	HDPEФ250mm
Handrail pipe	HDPEФ90mm	HDPEФ90mm	HDPEФ90mm	HDPEФ110mm	HDPEФ110mm
Standing pipe	HDPEФ90mm	HDPEФ90mm	HDPEФ90mm	HDPEФ125mm	HDPEФ125mm
Cage bracket	HDPE 200	HDPE 200	HDPE 200	HDPE 250	HDPE 250
Square Structure	9mx9m	10mx10m	11mx11m	12mx12m	15mx15m
Floating pipe	HDPEФ250mm	HDPEФ250mm	HDPEФ315mm	HDPEФ315mm	HDPEФ315mm
Handrail pipe	HDPEФ110mm	HDPEФ110mm	HDPEФ110mm	HDPEФ110mm	HDPEФ110mm
Standing pipe	HDPEФ125mm	HDPEФ125mm	HDPEФ125mm	HDPEФ125mm	HDPEФ125mm
Cage bracket	HDPE 250	HDPE 250	HDPE 315	HDPE 315	HDPE 315

Performance parameters of Square Cage:

1)Anti-Windstorm capacity:Maximum grade 8
2) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s

Advantages

1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.

Fittings

Diameter 30 meters round hdpe floating aquaculture traps for agriculture fish farming

Bracket of square aquaculture traps PE material

FISH CAGE NETS

aquaculture traps PE material

Fish cage net is very import in the whole fish cage system, as fishes are growing inside the net cage. The fish net cage provides a environment that keep fishes from the risk of escape and predator attacks.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
