china wholesale 5w portable 3w uv gain laser marking machine for projection necklace

china wholesale 5w portable 3w uv gain laser marking machine for projection necklace

FOB Reference Price: Get Latest Price

≥1 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: China

Weight (KG):: 48 KG

Core Components:: laser source

Product name:: Lazer Marking Machine

Laser source:: IPG Raycus Max JPT

Applicable Material:: Metal Nonmetal Materials

Machine type:: Mini Portable Laser Marker

After-sales Service Provided:: Online Support

Marking Depth:: 0-1mm

Power supply:: 220V /110V 50Hz

Working area:: 110*110mm 150*150mm

Software:: JCZ EZCAD Software

Quick Details

Working Accuracy:: 0.01mm

Graphic Format Supported:: AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG, CAD, CDR, DWG,PCX

Laser Type:: UV

Cooling Mode:: Air Cooling

Control Software:: EZCAD

Place of Origin:: China

Weight (KG):: 48 KG

Core Components:: laser source

Product name:: Lazer Marking Machine

Laser source:: IPG Raycus Max JPT

Applicable Material:: Metal Nonmetal Materials

Machine type:: Mini Portable Laser Marker

After-sales Service Provided:: Online Support

Marking Depth:: 0-1mm

Power supply:: 220V /110V 50Hz

Working area:: 110*110mm 150*150mm

Software:: JCZ EZCAD Software

Product Description

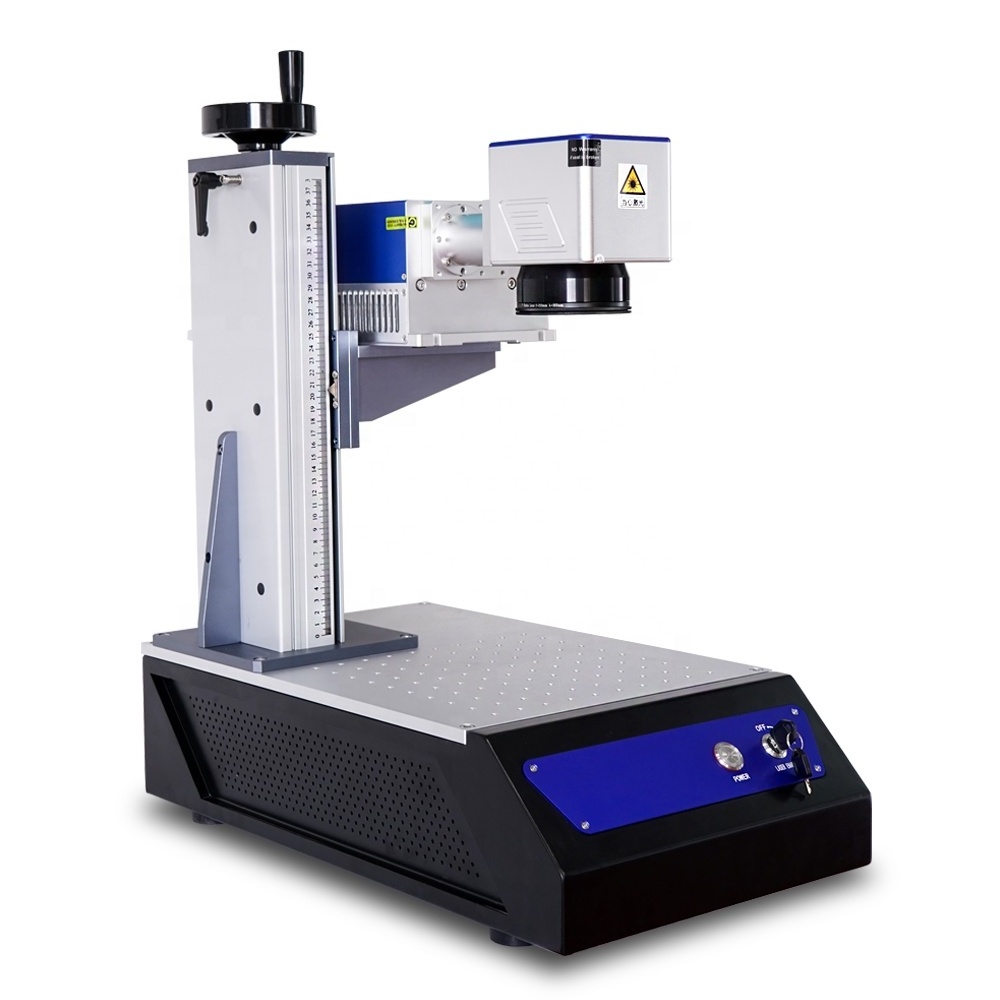

UV fiber laser marking machine the main parts:

1. Field mirror

2. Tape

3. Working desk

4. Lifting arm

5 . UV laser source

Item	Value
Marking Area	0-25 khz
Galvanometer	Sino-Galvanometer SG7110
Main Board	BJJCZ
Marking Speed	70000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Focus spot Diameter	＜0.01mm
Line span of Fiber Laser Module	100000 hours
Wavelength	1064nm
Control Software	EZCAD

Product Introduction

Advantages:

Mini portable uv laser marking machine
1. It's small size, so it's convenient to deliver. We can deliver the machine to you by air or by express.
2. Air cooling method
3. The warranty of the whole machine is 3 years, except the core components
The warranty of the core components is 2 years.
4. Support customize language, tell us your languages, we can customize your own language for free

Details of the Machine

UV Laser source

Fiber laser device adopts Technology

China top quality,100000 hours lifetime

Galvo head

High quality laser scanning system makes the marking speed up to 7000mm/s

Power plug

Lift arm

China wholesale uv laser marking machine 5w

has the advantages of short wavelength, short pulse, good beam quality, high precision and high peak
power. Therefore, it has excellent application characteristics in the field of special material processing and can reduce the thermal effect on the surface of various materials, there by greatly improving the processing accuracy and laser engraving effect.

UV marking laser machine

Our machine are equipped with simple and practical operation software. It has strong stability, fast speed, powerful functions,and can meet various marking requirements.
