Quick Details
-
Place of Origin:
-
Anhui, China
-
Dimension(Long * Breadth * High):
-
5000*2200*3100mm
-
Machine Weight:
-
5950 kg
-
Bucket capacity:
-
3m3
-
Marketing Type:
-
New Product 2021
-
Keyword:
-
self loading site dumper
-
Name:
-
site dumper
-
Product name:
-
Telescopic Loader
-
Key words:
-
self loading site dumper
-
Application:
-
Earthmoving
-
Drive Mode:
-
Four-wheel
-
Brand:
-
hl
-
Usage:
-
Industrial.faming.garden
-
Other name:
-
self loading site dumper
-
Location:
-
Hefei
Quick Details
-
Engine Brand:
-
FPT
-
Power:
-
55 kw
-
Brand Name:
-
hl
-
Place of Origin:
-
Anhui, China
-
Dimension(Long * Breadth * High):
-
5000*2200*3100mm
-
Machine Weight:
-
5950 kg
-
Bucket capacity:
-
3m3
-
Marketing Type:
-
New Product 2021
-
Keyword:
-
self loading site dumper
-
Name:
-
site dumper
-
Product name:
-
Telescopic Loader
-
Key words:
-
self loading site dumper
-
Application:
-
Earthmoving
-
Drive Mode:
-
Four-wheel
-
Brand:
-
hl
-
Usage:
-
Industrial.faming.garden
-
Other name:
-
self loading site dumper
-
Location:
-
Hefei
Product Description
|

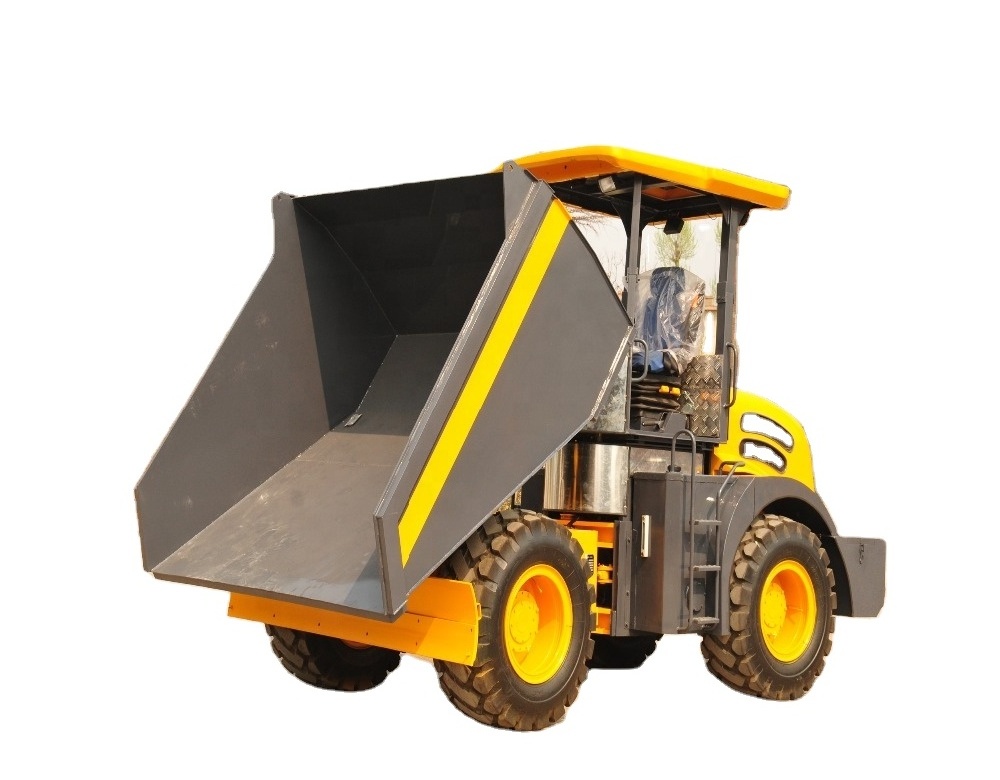

Main performance parameters of DP60 Dumper
|
|
|
||
|
1
|
rated loading
|
6000kg
|
||
|
2
|
overall weight
|
5950kg
|
||
|
3
|
rated bucket capacity
|
4m3
|
||
|
4
|
maximum tractive force
|
≥55KN
|
||
|
5
|
maximum breakout force
|
≥46KN
|
||
|
6
|
maximum grade ability
|
300
|
||
|
7
|
overall dimension (L×W×H)
|
5000×2200×3100mm
|
||
|
8
|
minimum turning radius
|
5750mm
|
||
|
9
|
model
|
Dongfanghong 4108
|
||
|
10
|
type
|
Vertical, in-line, water cooled, 4-stroke diesel engine
|
||
|
11
|
No. of cylinder-bore/stroke
|
4—108×120mm
|
||
|
12
|
rated power
|
60kw-2400r/min
|
||
|
13
|
maximum torque
|
270N.m
|
||
|
14
|
min fuel-consume ratio
|
≤243g/kw.h
|
||
|
15
|
torque converter
|
YJ—280A
|
||
|
16
|
gearbox mode
|
Countershaft power-shift
|
||
|
17
|
gear shift
|
2 forward shift 2 reverse shift
|
||
|
18
|
maximum speed
|
24km/h
|
||
|
19
|
main reducing mode
|
Circular Arc Bevel gear, single stage
|
||
|
20
|
decelerating mode
|
Single stage planetary type
|
||
|
21
|
wheel base (mm)
|
2530mm
|
||
|
22
|
wheel tread
|
1600mm
|
||
|
23
|
ground clearance
|
310mm
|
||
|
24
|
system working pressure
|
16MPa
|
||
|
25
|
fuel tank capacity
|
80L
|
||
|
26
|
service brake
|
air assist disc brake on 4 wheels
|
||
|
27
|
parking brake
|
flexible shaft operated external drum
|
||
|
28
|
type specification
|
16/70—20
|
||
|
29
|
front tyre pressure
|
0.22Mpa
|
||
|
30
|
rear tyre pressure
|
0.18Mpa
|
||
