- Product Details
- {{item.text}}
Quick Details
-
EINECS No.:
-
none
-
Place of Origin:
-
Henan, China, Henan,China
-
Brand Name:
-
TONTEN, TONTEN
-
Model Number:
-
LFC
-
Model Name:
-
TT-LFC-I
-
Application:
-
For foundry to support and protect form model
-
Color:
-
White,Yellow,Black
Quick Details
-
CAS No.:
-
67763-03-5
-
Other Names:
-
LFC,EPC, LFC,EPC
-
MF:
-
H4Si
-
EINECS No.:
-
none
-
Place of Origin:
-
Henan, China, Henan,China
-
Brand Name:
-
TONTEN, TONTEN
-
Model Number:
-
LFC
-
Model Name:
-
TT-LFC-I
-
Application:
-
For foundry to support and protect form model
-
Color:
-
White,Yellow,Black
Products Description
Uniform coating thickness and smooth surface disappearance mold coating is suitable for all kinds of cast iron and steel.
Product Information
EPC coating is suitable for all kinds of cast iron, cast steel and alloy casting. The process
performance is excellent and the production effect is good. The casting produced by this process is non sand, high dimensional precision, good surface finish, high yield and convenient operation. It can be dipped, drenched and brush coated. It is an ideal coating for the production process of non toxic side effects and environmental protection.
performance is excellent and the production effect is good. The casting produced by this process is non sand, high dimensional precision, good surface finish, high yield and convenient operation. It can be dipped, drenched and brush coated. It is an ideal coating for the production process of non toxic side effects and environmental protection.
|
EPC coating
|
|
|
|
Product Name
|
high manganese steel lost foam coating powder
|
|
|
Pouring Temperature
|
1600 ℃
|
|
|
Coating Thickness
|
1.2-1.5mm
|
|
|
Product Specification
|
all kinds of specifications are complete.
|
|
|
Product Features
|
high strength, good air permeability, high fire resistance, strong adhesion, not easy to ferment.
|
|
|
Scope of Application
|
Lost foam cast process EPS can be used for gray cast iron, iron ball, carbon steel, alloy steel, high manganese steel, high chromium steel, stainless steel, aluminum, etc.
|
|
Product Paramenters
|
TECHNICAL INDEX OF Lost Foam Coating For Alloy Steel Casting
|
|
|
|
|
||||
|
Model
|
TT-LFC-I
|
TT-LFC-II
|
TT-LFC-III
|
TT-LFC-IV
|
||||
|
Alloy Type
|
cast gray iron
|
cast ductile iron
|
cast carbon steel
|
cast high Mn steel
|
||||
|
Dilution Ratio
|
1:(1.0-1.15)
|
1:(1.0-1.15)
|
1:(0.6-0.7)
|
1:(1.0-1.5)
|
||||
|
Density (g/cm3)
|
1.3-1.5
|
1.3-1.5
|
1.7-1.9
|
1.2-1.4
|
||||
|
Suspension (24h)
|
≥98%
|
≥98%
|
≥98%
|
≥98%
|
||||
|
Temperature Strength
(600 ℃) kpa |
60-65
|
60-65
|
65-68
|
50-60
|
||||
|
Temperature Permeability
(600 ℃) cm3/gmin |
0.68-0.78
|
0.68-0.78
|
0.6-0.8
|
0.68-0.78
|
||||
Characteristics
Characteristics of lost foam coating for alloy steel casting:
1. High manganese steel lost foam coating powder is of good suspension and redispersibility, excellent rheology and thixotropy, uniform coating thickness, smooth surface without cracks.
2. Lost foam coating for alloy steel casting is of high bond strength, good infiltration, coated hanging is good.
3. It is of good thermal stability, breathability, high temperature crack resistance and resistance to molten steel, hot metal erosion.
4. Large dilution ratio range (dry powder coating can be stored within the validity periodin dry condition).
5. Applicable fornegative pressure or solid type castings.
2. Lost foam coating for alloy steel casting is of high bond strength, good infiltration, coated hanging is good.
3. It is of good thermal stability, breathability, high temperature crack resistance and resistance to molten steel, hot metal erosion.
4. Large dilution ratio range (dry powder coating can be stored within the validity periodin dry condition).
5. Applicable fornegative pressure or solid type castings.
Application Range
Uniform coating thickness and smooth surface disappearance mold coating is suitable for all kinds of cast iron and steel.
U ses Of lost foam cast process EPS:
Lost foam coating for alloy steel casting is mainly used in lost foam casting process of gray cast iron, iron ball, carbon steel, alloy steel, high manganese steel, high chromium steel, stainless steel, aluminum, etc.
EPC
For Steel Casting
.
Lost Foam Casting Coating Powder
For Ductile Iron Parts
Lost Foam Casting Powder
For Stainless Steel Parts
EPC
High Chromium Steel Parts
Lost Foam Casting Powder
For High Manganese Steel Parts
Lost Foam Casting Coating Powder
For Gray Iron Parts

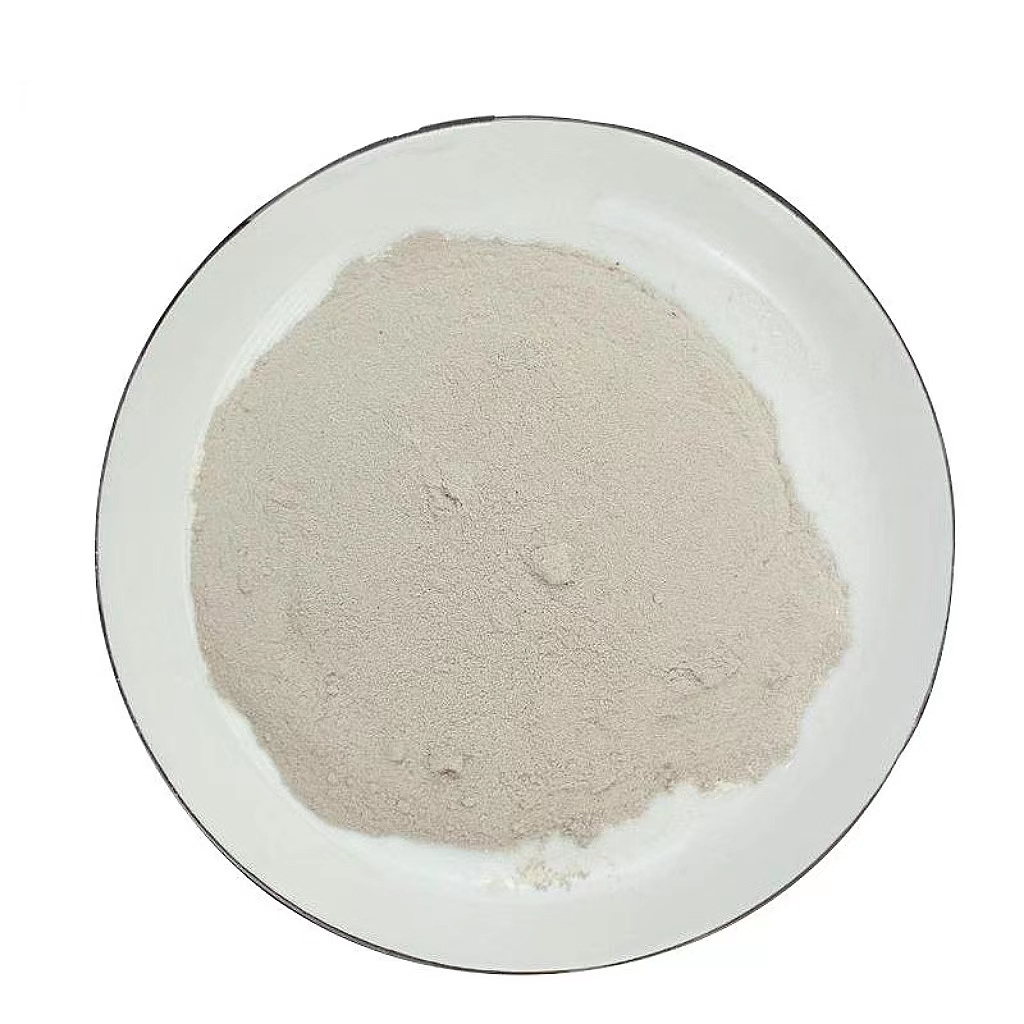

Product Photograph
Uniform coating thickness and smooth surface disappearance mold coating is suitable for all kinds of cast iron and steel.
Lost foam coating supplier:
Good suspension and redistribution, excellent rheological and thixotropic, uniform coating thickness, smooth and crack free surface..
Lost foam coating for alloy steel casting:
High bonding strength, good wettability to white film pattern and good coating and hanging property.
Lost foam cast process EPS:
Good thermal stability, air permeability, high temperature crack resistance and erosion resistance of steel and hot metal.
High manganese steel lost foam coating powder:
The range of dilution ratio is wide, which is suitable for negative pressure or solid cast iron.
Packaging and Shipping
The package and shipping info of high manganese steel lost foam coating powder:
1. The lost foam cast process EPS can be packed in brown paper bag or plastic woven bag
2. 25kg (55lb)/bag, 40 bags packed in a 1000kg (2200lb) bulk bag.
3. 25kg (55lb)/bag, 40 bags on a 1000kg (2200lb) pallet.
4. 1000kg (2200lb)/jumbo bag.
5. Customized packing available for lost foam coating for alloy steel casting.
Factory Strength
Tonten Factory is a special abrasives industry, which has been stand in this industry for over 20 years. Except abrasive materials, we have the refractory materials and casting materials and accessories. We have the products of garnet, copper slag, quartz sand, orb Sand, lost foam coatings (LFC), cryolite, coated sand, corundum, steel grit, asphalt, phenolic resin, zircon sand,
ceramic sand, ramming material, etc. And our materials have been sold to all over China and many overseas countries, such as America, Turkey, Syria, Nigeria, Iran, India, etc.Welcome to have a contact.
