Quick Details
-
Equipment transmission speed:
-
0-10m/min adjustable
-
Tap water:
-
0.3 - 0.5MPa
-
Compressed air:
-
0.4 - 0.6MPa
-
Machine operating duration:
-
24 hours of continuous operation
-
Turnover box size:
-
620 * 420 * 310mm
-
Heating type:
-
Electric Or Steam
-
Process:
-
alkaline water- hot water-normal water-disinfectant water
-
Sprayer number:
-
120pcs
Quick Details
-
Place of Origin:
-
Henan, China
-
Machine material:
-
SUS304 stainless steel
-
Capacity:
-
300-800pcs/h
-
Equipment transmission speed:
-
0-10m/min adjustable
-
Tap water:
-
0.3 - 0.5MPa
-
Compressed air:
-
0.4 - 0.6MPa
-
Machine operating duration:
-
24 hours of continuous operation
-
Turnover box size:
-
620 * 420 * 310mm
-
Heating type:
-
Electric Or Steam
-
Process:
-
alkaline water- hot water-normal water-disinfectant water
-
Sprayer number:
-
120pcs
Chicken cage cleaning machine/pallet washing machine
1. Introduction of pallet washing machine
We will be using stainless steel for the of high-pressure spray cleaning section, the wind blade to the water section consisting of a continuous work by the washing to the water to the device. The work piece is placed on the feeding section mesh belt, the transmission device will be sent to each cleaning station in turn, after cleaning the box, the wind knife to the water, the box will be sent to the discharge end. The operator can take off the box to the other working procedure in the discharge end.
The clening process of turnover box washing machine is relatively simple.
Machine includes load section, sprayer1, sprayer2, sprayer3, dryer, upload parts.
Sprayer1 is hot alkali/soda water(degreasing), sprayer2 is hot disinfectant, sprayer 3 is water(final clean).
The hot water in the box can be moved into Sprinkler pipe by the water pump, and then it can formed to high pressure water spraying in the baskets.
2. Features of pallet washing machine
1) The main body of the device is made of 304 stainless steel material, hygienic and clean
2) The nozzle adopts the food grade high temperature plastic nozzle or stainless steel nozzle, the cleaning angle can be adjusted; the up and down and left and right adopt different models to avoid the dead angle and ensure the cleanliness.
3)The pump adopts stainless steel special hot water pump.
Motor speed using mechanical stepless adjustable or variable frequency adjustable, suitable for clean degree is not the same basket.
4)On both sides of the fence rail can be adjusted left and right for cleaning baskets of different sizes.
5)The spray pipe on the top can be adjusted up and down for cleaning the different height of the basket
6)Steam heating or electric heating can be used in the heating hot alkali water and hot water tank.
3. Technical parameter of pallet washing machine
| Model | VLD-XK-6000 |
| Power | 16kw(Steam Heating) |
| Voltage | 380V/220V |
| Conveyor Speed | 0-10m/min Adjustable |
| Conveyor power | 0.75Kw |
| Capacity | 600-800Pcs/h |
| Water Consumption | 20L/min |
| Pump Number | 3Pcs (with 3 tanks) |
| Pump Pressure | 0.1Mpa |
| Water Gun Range | 32m |
| Pump Pressure Bearing | 3Kg |
| Weight | 2800Kg |
| Overall Dimension | 6500*1500*1600mm |

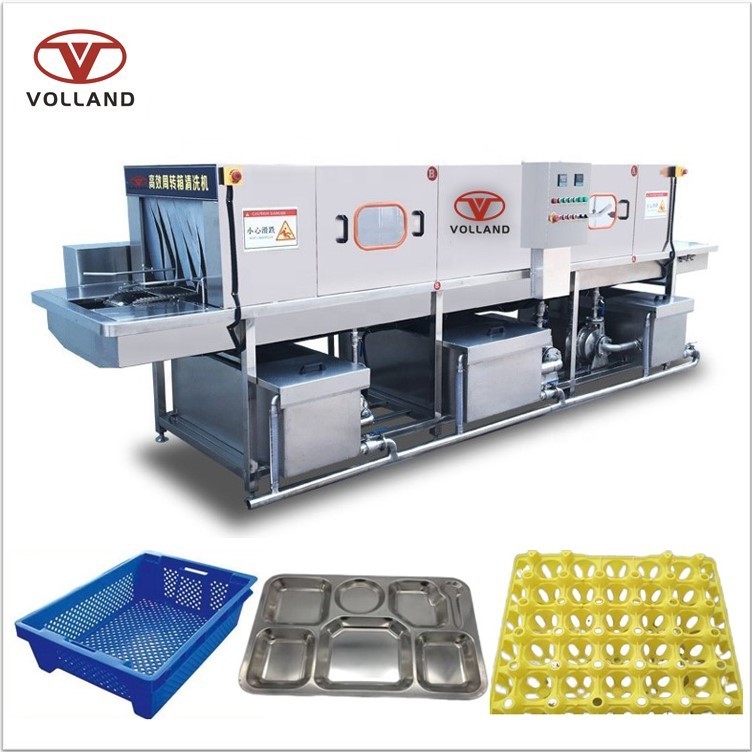

4. Photos of pallet washing machine
5. Final Products
