- Product Details
- {{item.text}}
Quick Details
-
Case material:
-
CNC Aluminium Alloy
-
Gear material:
-
7075 Aluminium Coated With Titanium
-
Dimension:
-
40*20*37.5mm
-
Weight:
-
60g
-
Voltage Range:
-
DC 4.8-8.4V
-
Rated Voltage:
-
7.4V
-
Stall Torque:
-
3.14N.M(32kg.cm)
-
No Load Speed:
-
Servo/Wheel Mode(endless rotation)
-
Communication Method:
-
PWM(deadband 1-2μs)
-
Certificate:
-
CE FCC RoHS
Quick Details
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
K-power
-
Model Number:
-
RC31P
-
Case material:
-
CNC Aluminium Alloy
-
Gear material:
-
7075 Aluminium Coated With Titanium
-
Dimension:
-
40*20*37.5mm
-
Weight:
-
60g
-
Voltage Range:
-
DC 4.8-8.4V
-
Rated Voltage:
-
7.4V
-
Stall Torque:
-
3.14N.M(32kg.cm)
-
No Load Speed:
-
Servo/Wheel Mode(endless rotation)
-
Communication Method:
-
PWM(deadband 1-2μs)
-
Certificate:
-
CE FCC RoHS
Product Description

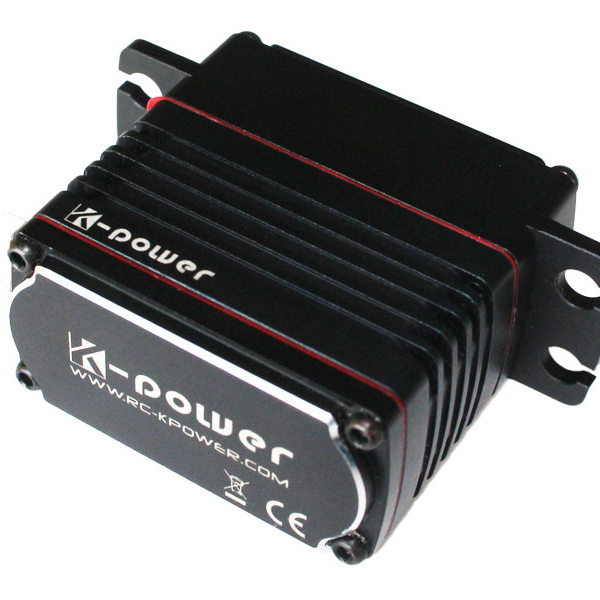

K-Power RC31P 32kg wheel/servo mode metal case coreless rc servo for rc car robot arm Humanoid Robot DIY
>3.14N.M(32kg.cm) High torque
> High voltage, incredible efficiency
> High-strength metal gears ensure the servo's life-cycle
> Coreless RC servo
> CNC Aluminium Alloy Case
> Perfect 300 Degree Rotation Robot Servo
Detailed Images
Parameter
|
Model Type
|
Robot Servo RC31P
|
|
|
||
|
Dimension
|
40*20*37.5mm
|
|
|
||
|
Weight
|
60g
|
|
|
||
|
Voltage Range
|
DC 4.8-8.4V
|
|
|
||
|
Rated Voltage
|
7.4V
|
|
|
||
|
Stall Torque
|
3.14N.M(32kg.cm)
|
|
|
||
|
No Load Speed
|
66.6rpm(0.15s/60°)
|
|
|
||
|
Motor Type
|
Coreless
|
|
|
||
|
Resolution
|
0.32°
|
|
|
||
|
Running Degree
|
0-300°
|
|
|
||
|
Mode
|
Servo/Wheel Mode(endless rotation)
|
|
|
||
|
Communication Method
|
PWM(deadband 1-2μs)
|
|
|
||
|
NO.of Wire
|
4Pin
|
|
|
||
|
Feedback
|
Position
|
|
|
||
|
Position Sensor
|
Potentiometer
|
|
|
||
|
Case
|
CNC Aluminum Alloy
|
|
|
||
|
Gear
|
7075 Aluminum Coated With Titanium
|
|
|
||
|
Service
|
One year warranty.Customized and OEM are available
|
|
|
||
