Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ASDA
-
Model Number:
-
8050S+P520
-
Warranty:
-
12 Months
-
Product name:
-

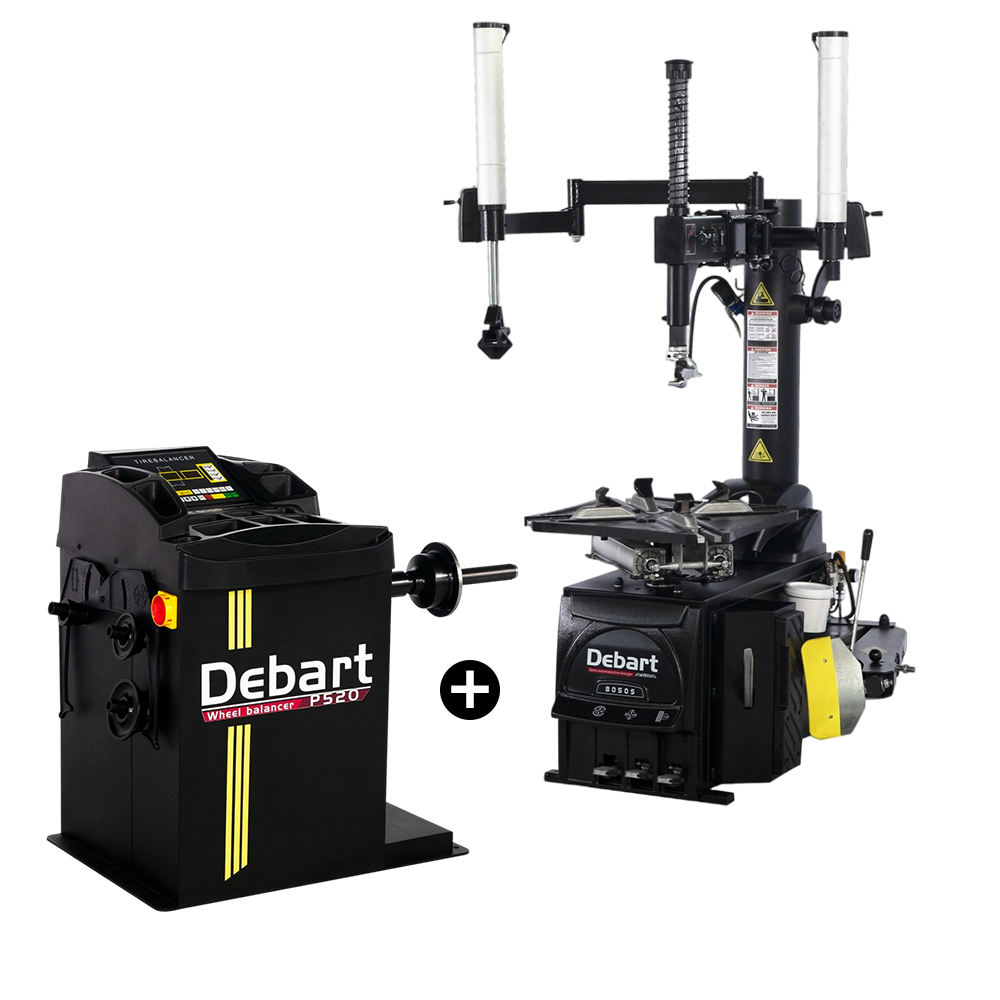

Tyre Changer and Wheel Balancer
-
Max. wheel diameter:
-
51" (1250 mm )
-
Max. wheel width:
-
14" (350 mm )
-
Driving system type:
-
Electric and pneumatic
-
Outside clamping:
-
11" - 24" (276 mm-630 mm )
-
Inside clamping:
-
13" - 26" (326 mm - 680 mm )
-
Gross weight:
-
285 kg
-
Rotary table rotation torque:
-
885 ft/lbs
-
Revolution of table:
-
7RPM
-
Noise level:
-
<70 dB
Quick Details
-
Motor Power:
-
1.1 kW / 0.75 kW
-
Operating Pressure:
-
116PSI-145PSI(8bar-10bar)
-
Power Supply:
-
110V,220V 50/60 Hz, 1 Ph 380V 50/60 Hz 3 Ph
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ASDA
-
Model Number:
-
8050S+P520
-
Warranty:
-
12 Months
-
Product name:
-
Tyre Changer and Wheel Balancer
-
Max. wheel diameter:
-
51" (1250 mm )
-
Max. wheel width:
-
14" (350 mm )
-
Driving system type:
-
Electric and pneumatic
-
Outside clamping:
-
11" - 24" (276 mm-630 mm )
-
Inside clamping:
-
13" - 26" (326 mm - 680 mm )
-
Gross weight:
-
285 kg
-
Rotary table rotation torque:
-
885 ft/lbs
-
Revolution of table:
-
7RPM
-
Noise level:
-
<70 dB
Product Description
|
Model
|
8050S
|
|
Supply Voltage
|
110V、220V 50/60 Hz,1Ph 380V 50/60 Hz 3 Ph
|
|
Electromotor
|
1.1kW/0.75kW
|
|
Working pressure
|
116PSI-145PSI（8bar-10bar）
|
|
Shovel tire force
|
Pneumatic 5500 pounds
|
|
Driving system type
|
Electric and pneumatic
|
|
Working disk power
|
Double cylinder
|
|
Shovel tire system
|
The shovel tire sheet can be retractable
|
|
The outside clamping
|
11" - 24" (276 mm – 630 mm )
|
|
The inner clamping
|
13" - 26" (326 mm - 680 mm )
|
|
Highest wheel width
|
14" (350 mm )
|
|
Highest wheel diameter
|
51" (1250 mm )
|
|
Rotary table rotation torque
|
885 ft/lbs
|
|
Length of wire
|
78 47/64" (2000 mm )
|
|
Revolution of table
|
7RPM
|
|
Turntable tyre width capacity (mounting)
|
3" - 15" (80 mm - 385 mm )
|
|
Tire spreader tire width capacity (removed)
|
1 1/2" - 14" (40 mm - 350 mm )
|
|
Noise level
|
＜70dB
|
|
Product size
|
L 51.02" x W 52.86" x H 81.63" (1250 mm x 1295 mm x 2000 mm
|
|
Product packing weight
|
285 kg
|
|
Product package size
|
950 mm x 1180 mm x 1020 mm
|
Product Description
|
Power supply voltage
|
110v, 220v 50/60 hz, 1 ph
|
|
Electric motor
|
250w
|
|
Power cable length
|
61.22" (1500 mm)
|
|
Balance maximum wheel weight
|
60kg
|
|
Precision of balance
|
1g
|
|
Revolution of equilibrium
|
210rmp
|
|
Wheel hub diameter
|
10" ~24 "or 254~610mm
|
|
Wheel hub width
|
1.5 "~ 20" or 38 ~ 508mm
|
|
Period of equilibrium
|
8～10s
|
|
The noise
|
<70dB(A)
|
|
Working Environment
|
0～50℃
|
|
Laser finding point (up/down)
|
under the
|
|
Lighting (top/bottom)
|
have (below)
|
|
Automatic drawing ruler
|
there are
|
|
Size of product
|
L 45.31" x W 26.93" x H 38.57" (1110 mm x 660 mm x 945 mm)
|
|
Net weight of product
|
95 kg
|
|
Product package size
|
1000 mm x 770 mm x 1100 mm
|
