current generated by the internal oscillator to achieve the balance of the magnetic field. At this time, the secondary voltage can
accurately reflect the primary current.
- Product Details
- {{item.text}}
Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
TR
-
Model Number:
-
TR0215-LXN-002
-
Secondary rated output voltage(DC):
-
5V
-
Linearity:
-
<1%FS
-
Precision:
-
TA=25℃:≤±0.5%
-
Offset current:
-
TA=25℃:≤±50mV
-
Response Time:
-
≤120mS
-
Load Resistance:
-
TA=25℃:≥10
-
Working temperature:
-
-40~+80℃
-
Storage Temperature:
-
-45~+85℃
-
Current Consumption:
-
<30mA
-
The Power Supply Voltage:
-
±12~15(±5%)V
Quick Details
-
Use:
-
Electronic
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
TR
-
Model Number:
-
TR0215-LXN-002
-
Secondary rated output voltage(DC):
-
5V
-
Linearity:
-
<1%FS
-
Precision:
-
TA=25℃:≤±0.5%
-
Offset current:
-
TA=25℃:≤±50mV
-
Response Time:
-
≤120mS
-
Load Resistance:
-
TA=25℃:≥10
-
Working temperature:
-
-40~+80℃
-
Storage Temperature:
-
-45~+85℃
-
Current Consumption:
-
<30mA
-
The Power Supply Voltage:
-
±12~15(±5%)V

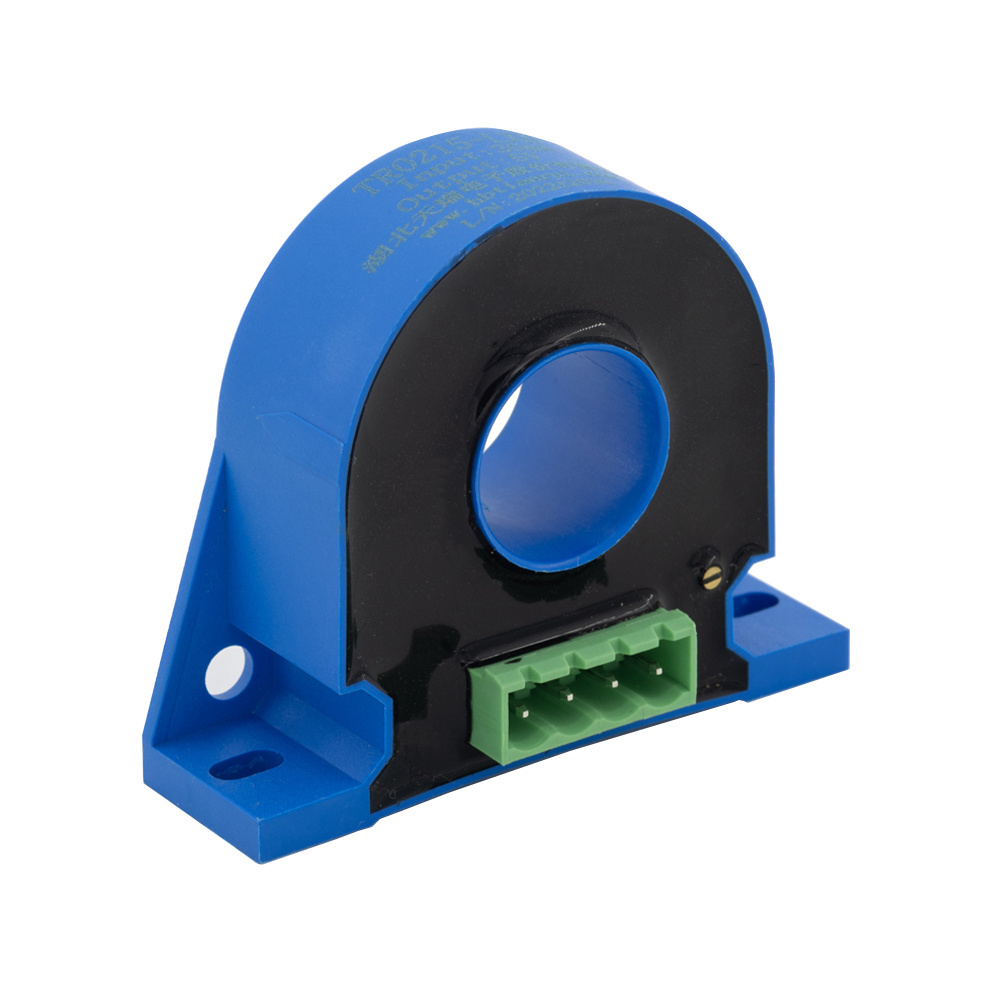

DC Leakage Current Sensor
current generated by the internal oscillator to achieve the balance of the magnetic field. At this time, the secondary voltage can
accurately reflect the primary current.
1.Small current measurement performance is stable
2.Excellent accuracy, good linearity
3.Wide measuring range and strong overload capacity
2.Excellent accuracy, good linearity
3.Wide measuring range and strong overload capacity
4.Perforated structure, no insertion loss
|
Technical Parameter
|
|
|
|
|
|
|||||
|
Specification
|
|
10mA/5V
|
50mA/5V
|
200mA/5V
|
Unit
|
|||||
|
IPN
|
Primary Rated Input Current (DC)
|
10
|
50
|
200
|
mA
|
|||||
|
IP
|
Primary Current Measurement Range
|
0～15
|
0～75
|
0～300
|
mA
|
|||||
|
VSN
|
Secondary rated output voltage(DC)
|
5
|
|
|
V
|
|||||
|
VC
|
The Power Supply Voltage
|
±12～15(±5%)
|
|
|
V
|
|||||
|
IC
|
Current Consumption
|
＜30
|
|
|
mA
|
|||||
|
Vd
|
Insulation Voltage
|
Between primary and secondary circuits:2.5kV/50Hz/1min
|
|
|
|
|||||
|
εL
|
Linearity
|
＜1
|
|
|
%FS
|
|||||
|
X
|
Precision
|
TA=25℃:≤±0.5
|
|
|
%
|
|||||
|
V0
|
Offset Voltage
|
TA=25℃:≤±50
|
|
|
mV
|
|||||
|
VOT
|
Offset Voltage Temperature Drift
|
Ip =0 TA =-40～+80℃:≤±1.5
|
|
|
mV/℃
|
|||||
|
Tr
|
Response Time
|
≤120
|
|
|
mS
|
|||||
|
TA
|
Working Temperature
|
-40～+80
|
|
|
℃
|
|||||
|
TS
|
Storage Temperature
|
-45～+85
|
|
|
℃
|
|||||
|
RL
|
Load Resistance
|
TA=25℃:≥10
|
|
|
kΩ
|
|||||
IpN:Primary current input direction
+ :Positive 12V/15V power supply
- :Negative 12V/15V power supply
M :Secondary signal output
G :Power ground
OFS:Zero adjustment
+ :Positive 12V/15V power supply
- :Negative 12V/15V power supply
M :Secondary signal output
G :Power ground
OFS:Zero adjustment
Scope of Application
1.The signal system 2.Line detection 3. Leakage Monitoring System 4.Current difference measurement
