Quick Details
-
Description:
-

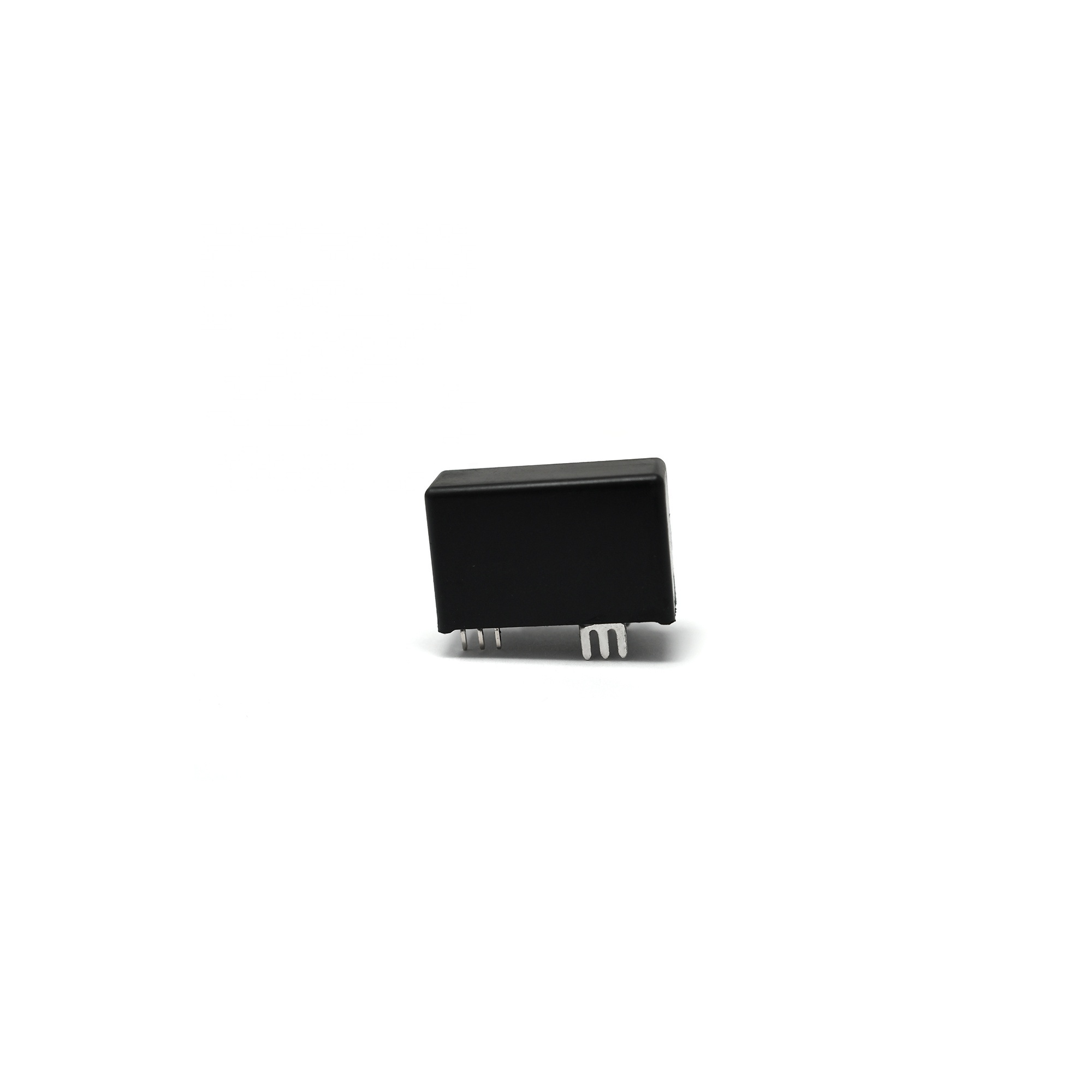

Closed loop current sensor, high accuracy, current sensor
-
Model Number:
-
CN2A 80 PB01 -3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHIPSENSE
-
Theory:
-
Hall effect closed loop
-
Output:
-
Current
-
Ambient operating temperature:
-
-40℃~85℃
-
Ambient storage temperature:
-
-40℃~90℃
-
Mass:
-
20g
-
Primary nominal rms current:
-
0~±40A
-
Rms volt for AC insulation, 50Hz,1m:
-
5kV
-
Supply voltage:
-
Min ±12V Max ±15V @±5%
-
Linearity error:
-
±0.1% of /PN
-
Accuracy @/PN:
-
±0.5% of /PN
-
Frequency bandwidth(-3dB):
-
Min 200kHz
Quick Details
-
Usage:
-
Wind energy inverter Test and detection devices
-
Series:
-
CN2A PB01
-
Mounting Type:
-
PCB & Busbar
-
Description:
-
Closed loop current sensor, high accuracy, current sensor
-
Model Number:
-
CN2A 80 PB01 -3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHIPSENSE
-
Theory:
-
Hall effect closed loop
-
Output:
-
Current
-
Ambient operating temperature:
-
-40℃~85℃
-
Ambient storage temperature:
-
-40℃~90℃
-
Mass:
-
20g
-
Primary nominal rms current:
-
0~±40A
-
Rms volt for AC insulation, 50Hz,1m:
-
5kV
-
Supply voltage:
-
Min ±12V Max ±15V @±5%
-
Linearity error:
-
±0.1% of /PN
-
Accuracy @/PN:
-
±0.5% of /PN
-
Frequency bandwidth(-3dB):
-
Min 200kHz
Company Introduction
Zhuhai CHIPSENSE Electronic Technology Co., Ltd
(hereinafter referred to as
CHIPSENSE
) is an innovative high-tech enterprise jointly built by CHIPSENSE Electronic and the Zhuhai Municipal Government. CHIPSENSE focuses on the research and development, production, sales, and service of industrial grade current and voltage sensors, establishes a large-scale production base in accordance with international standards, and is committed to meeting the large-scale application needs in fields such as photovoltaic, automobiles, power, rail transit, and artificial intelligence.
R&D capability : Relying on the CHIPSENSE Electronic technology team and collaborating with Institute of Intelligent Sensing Technology Innovation and Application at North China Electric Power University (NCEPU), we efficiently complete the forward research and development of sensors.
Automated production : Referring to international advanced standards, independently developed automated production lines, achieving a production scale of 20 million units per year and this quantity is increasing every year.
System construction : In accordance with the quality system standards of IATF16949, adopting the management concept of lean production, promoting full quality management, and improving quality control capabilities.
CHIPSENSE is committed to providing customers with independently developed sensors, as well as diversified customized products and solutions (OEM & ODM)
R&D capability : Relying on the CHIPSENSE Electronic technology team and collaborating with Institute of Intelligent Sensing Technology Innovation and Application at North China Electric Power University (NCEPU), we efficiently complete the forward research and development of sensors.
Automated production : Referring to international advanced standards, independently developed automated production lines, achieving a production scale of 20 million units per year and this quantity is increasing every year.
System construction : In accordance with the quality system standards of IATF16949, adopting the management concept of lean production, promoting full quality management, and improving quality control capabilities.
CHIPSENSE is committed to providing customers with independently developed sensors, as well as diversified customized products and solutions (OEM & ODM)
Our Services & Strength
CHIPSENSE designs and manufacturers wide range of current & voltage sensors with excellent accuracy and could be alternative to all world top brand sensors with high compatibility, high quality and reasonable prices. We have high level technical team to provide OEM & ODM service.
Product Paramenters
|
Parameter
|
Min
|
Typ
|
Max
|
comment
|
|
Supply voltage (
V
C
)
|
±12V
|
|
±15V
|
@±5%
|
|
Current consumption (
I
C
)
|
|
20+
I
S
mA
|
|
|
|
Accuracy @
I
PN
(X)
|
-0.5% of
I
PN
|
|
0.5% of
I
PN
|
Exclusive of
V
OE
|
|
Frequency bandwidth(-3dB)
|
200kHz
|
|
|
|
Packing&Shipping
CHIPSENSE provides standard packing & customized packing. All kinds of shipping are acceptable.
FAQ
1.What is your product range?
We are specialized in sensor manufacturing, including current sensors, voltage sensors, current sensor rang is 10A, 16A, 20A, 30A, 32A, 40A, 50A, 80A, 100A, 120A, 150A, 200A, 300A, 400A, 500A, 600A, 700A, 800A, 1000A, 2000A, 3000A, etc, from 5mA to 5000A; Voltage sensor from 10V to 6400V.
2. What is your product advantage?
CHIPSENSE current sensors and voltage sensors are different from traditional current or voltage transducers, our products are high speed, high precision, low temperature drift, excellent linearity, excellent zero drift with intelligentization.
3. What is your product applications?
CHIPSENSE sensors could be widely used in
AC variable speed and servo motor drives, Uninterruptible Power Supplies (UPS), Static converters for DC motor drives, Switch Mode Power Supplies (SMPS), Power supplies for welding applications, Power management, Battery management, Wind energy inverter, Test and detection devices,
New energy electric vehicles,
energy storage applications, PCS and BMS, photovoltaic combiner boxes, inverters, battery panel health management, circuit breakers,
smart appliances, various air switches, leakage protectors, air conditioners, refrigerators,
photovoltaic power generation, wind power generation, energy storage systems, fault recorder, DC screens, active power filters,
new energy vehicles, motor drives, battery management BMS, on-board charging (OBC), DC-DC modules, charging stations, power modules.
4. Are you a factory?
Yes, we are a factory with high level R&D team.
5. Are you able to provide OEM or ODM?
Yes, this is our advantage, we can design according to your demand.
6. How about your aftersale service?
We provide 5 years warranty.
7. Could you provide a detail quotation when quantity is enough?
Sure, we will make customized quotation for you.
8. Could you make instruction during our installation?
Yes, we will support at any time.
5. Are you able to provide OEM or ODM?
Yes, this is our advantage, we can design according to your demand.
6. How about your aftersale service?
We provide 5 years warranty.
7. Could you provide a detail quotation when quantity is enough?
Sure, we will make customized quotation for you.
8. Could you make instruction during our installation?
Yes, we will support at any time.
