Quick Details
-
Type:
-

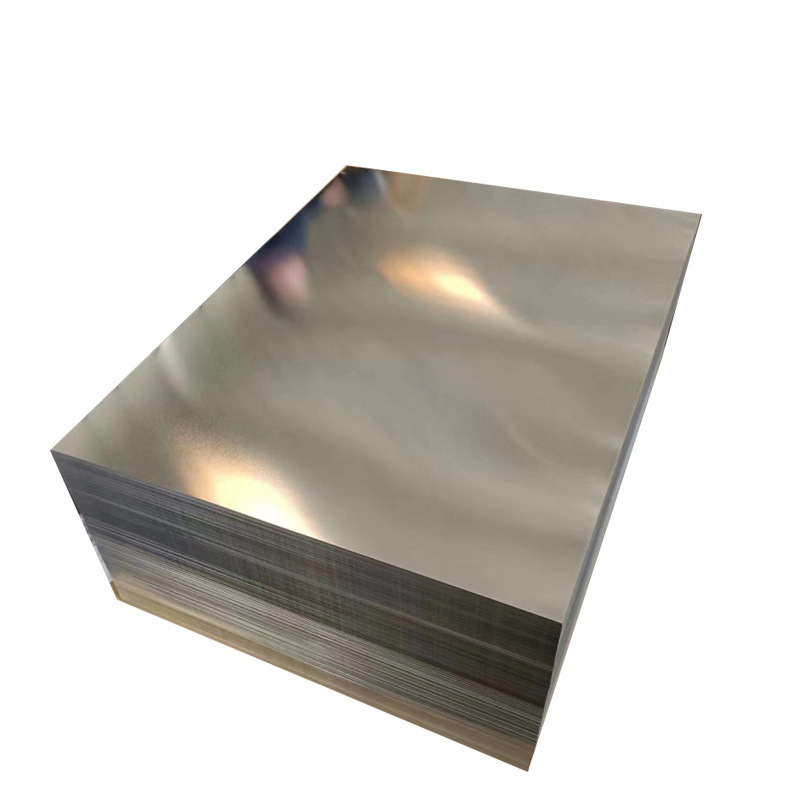

Tinplate Coil (ETP Coil)
-
Tolerance:
-
+/-10%
-
Width:
-
600 - 1050mm
-
Place of Origin:
-
Tianjin, China
-
Application:
-
Food can, industrial can and general packaging
-
Delivery Time:
-
20-45 days
-
Annealing:
-
BA (Batch Annealed), CA (Continuously Annealed)
-
Coating:
-
1.1-15.6 (g/m2)
-
Surface:
-
Bright, Stone, Fine Stone, Sliver, Matt
-
Post Treatment:
-
Passivation, Dos Oil
-
Shape:
-
Coil, Sheet
-
Coil ID:
-
420mm, 508mm
-
Coil Weight:
-
12MT Max, or as per customer request
-
Bundle Weight:
-
2MT Max
-
Processing service:
-
Cut to sheet, scroll cut, lacquer and print service
-
MOQ:
-
25MT per size
Quick Details
-
Standard:
-
EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
-
Grade:
-
MR, SPCC
-
Thickness:
-
0.14 - 0.50mm
-
Type:
-
Tinplate Coil (ETP Coil)
-
Tolerance:
-
+/-10%
-
Width:
-
600 - 1050mm
-
Place of Origin:
-
Tianjin, China
-
Application:
-
Food can, industrial can and general packaging
-
Delivery Time:
-
20-45 days
-
Annealing:
-
BA (Batch Annealed), CA (Continuously Annealed)
-
Coating:
-
1.1-15.6 (g/m2)
-
Surface:
-
Bright, Stone, Fine Stone, Sliver, Matt
-
Post Treatment:
-
Passivation, Dos Oil
-
Shape:
-
Coil, Sheet
-
Coil ID:
-
420mm, 508mm
-
Coil Weight:
-
12MT Max, or as per customer request
-
Bundle Weight:
-
2MT Max
-
Processing service:
-
Cut to sheet, scroll cut, lacquer and print service
-
MOQ:
-
25MT per size
Product Description
Specification
|
Thickness
|
0.14 - 0.50mm
|
|
Width
|
600 - 1050mm
|
|
Steel Type
|
MR, SPCC
|
|
Annealing
|
BA (Batch Annealed), CA (Continuously Annealed)
|
|
Standard
|
EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
|
|
Temper
|
T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
|
|
Coating for ETP
|
Euqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2)
Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6) |
|
Surface
|
Bright, Stone, Fine Stone, Sliver, Matt
|
|
Post treatment
|
Passivation, Dos Oil
|
|
Shape
|
Coil, Sheet
|
|
Coil ID
|
420mm, 508mm
|
|
Coil Weight
|
12MT Max, or as per customer request
|
|
Bundle Weight
|
2MT Max
|
|
Application
|
A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. )
B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers) C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.) |
|
Processing service
|
Cut to sheet, scroll cut, lacquer and print service
|
|
Delivery Tolerance
|
+/-10%
|
|
Country of Origin
|
China
|
|
Delivery time
|
20-45 days
|
|
MOQ
|
25MT per size
|
Typical Application
|
Temper
|
Typical Application
|
|
T-1
|
Drawn and ironed cans, nozzles, spouts, closures, mounting cup, oil filter.
|
|
T-2
|
Ring and plugs, dome tops, closures, shallow drawn parts. Drawing can, body, end for large can.
|
|
T-2.5
|
Battery shells, small can ends and bodies.
|
|
T-3
|
Top and bottom of cans, can ends and bodies, large diameter closures, crown caps.
|
|
T-3.5
|
General use, pail, 18L, 4L.
|
|
T-4
|
Can bodies and ends, crown caps, closures. Body and end for small can.
|
|
T-5
|
Can ends and bodies requiring intensity. Body and end for small can.
|
|
DR-7M
|
DRD bodies, dome, Lug cap & 3 piece bodies.
|
|
DR-8
|
DRD bodies, end, Lug cap & 3 piece bodies.
|
|
DR-8M
|
DRD bodies, end, Lug cap & 3 piece bodies.
|
|
DR-9
|
DRD bodies, Lug cap & 3 piece bodies Thinner guage body, end, DRD cans, caps.
|
|
DR-9M
|
DRD bodies, Lug cap & 3 piece bodies Thinner guage body, end, DRD cans, caps.
|
|
DR-10
|
DRD bodies, Lug cap & 3 piece bodies. Thinner guage body, end, DRD cans, caps.
|
