FOB Reference Price: Get Latest Price
≥1 Sets
US $130800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
1000V*2
Weight (T):
18 T
Power (kW):
5000
Applicable Industries:
Melting Casting
Rated frequency:
300Hz
Melting speed:
55min
Output dc voltage:
2700V
Output dc current:
1850A
Input dc current:
1520A
Power consumption:
<500KWH/T
Max output voltage:
3500V
The power factor:
0.95
Certification:
ISO9001,CE

Quick Details

Place of Origin:
Henan, China
Marketing Type:
Melting furnace
Brand Name:
SHENNAI
Voltage:
1000V*2
Weight (T):
18 T
Power (kW):
5000
Applicable Industries:
Melting Casting
Rated frequency:
300Hz
Melting speed:
55min
Output dc voltage:
2700V
Output dc current:
1850A
Input dc current:
1520A
Power consumption:
<500KWH/T
Max output voltage:
3500V
The power factor:
0.95
Certification:
ISO9001,CE
We are a factory, we can produce 20kg-20ton metal smelting furnace. We can also provide turnkey engineering services.
new technology
Application of New Technology of Intermediate Frequency Melting Furnace :
1. Remote monitoring, you can view the device operating data on your mobile phone or computer.
2. Real-time data, we add sensors to the equipment, and the equipment operating data is transmitted and recorded in real time.
3. Automatic early warning. During the operation of the equipment, the data of the past six months will be compared. Once an abnormality or fluctuation occurs, an alarm will be automatically sent to the computer and mobile phone.
4. View various data, melting time, power, speed, etc. in real time.
5. Equipment aging diagnosis, fault warning.
Product Details

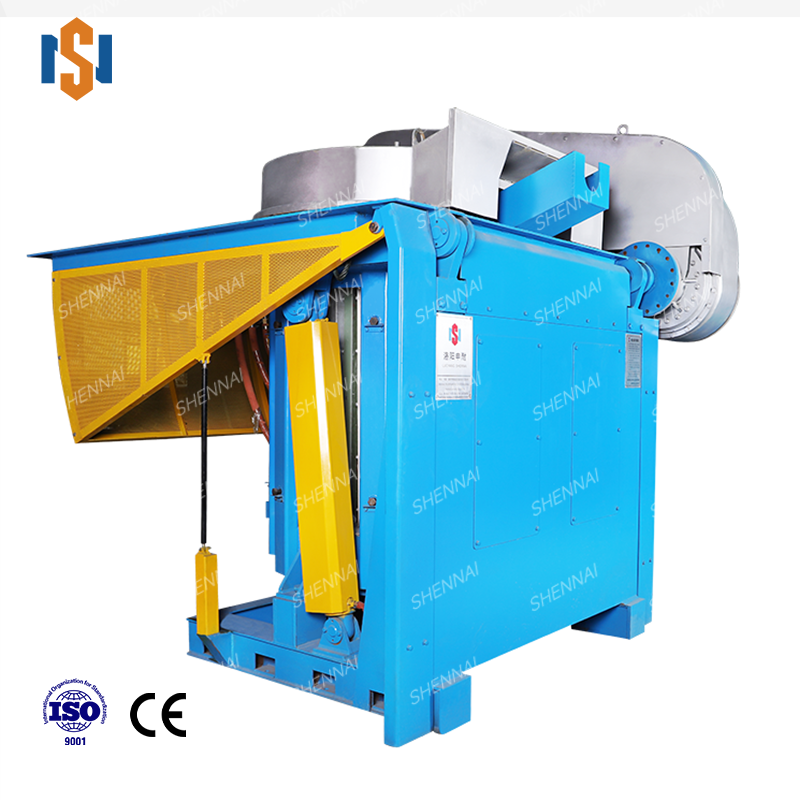

The medium frequency smelting furnace mainly used for melting and refining all kinds of scrap metal, iron, stainless steel,copper, aluminum. This furnace can smelting the scrap iron, like scrap auto parts, scrap steel bars, scrap screws, iron leftover,materials etc.

Product Features:

1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot.
2. Have self-test function, real-time supervise.
3. Have leaking alarm device, PLC control, easy to operate.
4.The control cabinet is standard of the automobile line, easy to maintain.
5. The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
6.Can meet 24 hours continuous work.
7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.
Induction Melting Furnace:
It has the bottom of the oxygen blowing, reducing carbon, slagging function.
Cyclone type smoke hood has excellent dust absorption , thermal insulation effect and take up a small space.
Long service life.
Power Supply:
The utility model has the advantages of obvious energy saving effect and 20% saving compared with common equipment.
It can achieve that one power supply cabinet for two furnaces.Transformer utilization rate is high.
The two furnaces can cast simultaneously and also can supply continuously molten steel casting.
Arbitrary power allocation, starting rate of 100%
Closed type cooling tower:
Heat exchanger:The materials of coil group is high quality of T2 depickling copper tube or stainless steel pipe .Set water tank and the tower body is made of aluminum zinc steel plate plate and the service life is over 15years.
Hydraulic pressure station:
Including hydraulic pump station and tilting furnace operating table.
The hydraulic pump station is used to provide power to the tilting furnace.The rated working pressure of the pump station is 11Mpa.
Capacitor Bank :
The double-layer mica insulation technology is used for the insulation treatment of the capacitor.
Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
