Quick Details
-
Brand Name:
-
Wadley
-
Voltage:
-
380/440/415V
-
Dimension(L*W*H):
-
4166*2037*1584mm
-
Weight (KG):
-
6500
-
Power (kW):
-
9.2
-
Product name:
-
Crank Shaft Grinding Machine
-
Max. Work swing diameter:
-
580mm
-
Max work length:
-
1600mm
-
Throw of crankshaft:
-
110mm
-
Max. workpiece weight:
-
120kg
-
Center height:
-
300mm
-
Spindle speed:
-
25,45,95r/min
-
Total power:
-
9.82kw
-
Grinding diameter on the center frame:
-
30~100mm
-
Max. Cross movement:
-
185mm
Quick Details
-
Wheel Size(mm):
-
900*32*305
-
Year:
-
2024
-
Place of Origin:
-
China
-
Brand Name:
-
Wadley
-
Voltage:
-
380/440/415V
-
Dimension(L*W*H):
-
4166*2037*1584mm
-
Weight (KG):
-
6500
-
Power (kW):
-
9.2
-
Product name:
-
Crank Shaft Grinding Machine
-
Max. Work swing diameter:
-
580mm
-
Max work length:
-
1600mm
-
Throw of crankshaft:
-
110mm
-
Max. workpiece weight:
-
120kg
-
Center height:
-
300mm
-
Spindle speed:
-
25,45,95r/min
-
Total power:
-
9.82kw
-
Grinding diameter on the center frame:
-
30~100mm
-
Max. Cross movement:
-
185mm
Specification
|
Product name
|
Crankshaft Grinding Machine
|
|
Wheel Size(mm)
|
900*32*305
|
|
Power (kw)
|
9.2
|
|
Max. Cross movement
|
185mm
|
|
Max. Work swing diameter
|
580mm
|
|
Max work length
|
1600mm
|
|
Throw of crankshaft
|
110mm
|
|
Max. workpiece weight
|
120kg
|
|
Center height
|
300mm
|
|
Spindle speed
|
25,45,95r/min
|
|
Total power
|
9.82kw
|
|
Grinding diameter on the center frame
|
30~100mm
|
Product Description
Crankshaft Grinding Machine mainly suitable for grinding the main and connecting rod necks of crankshafts in automobiles,tractors, and diesel engine repair shops, and can also be used for outer circle grinding of various shaft parts (cut in grinding,longitudinal grinding)

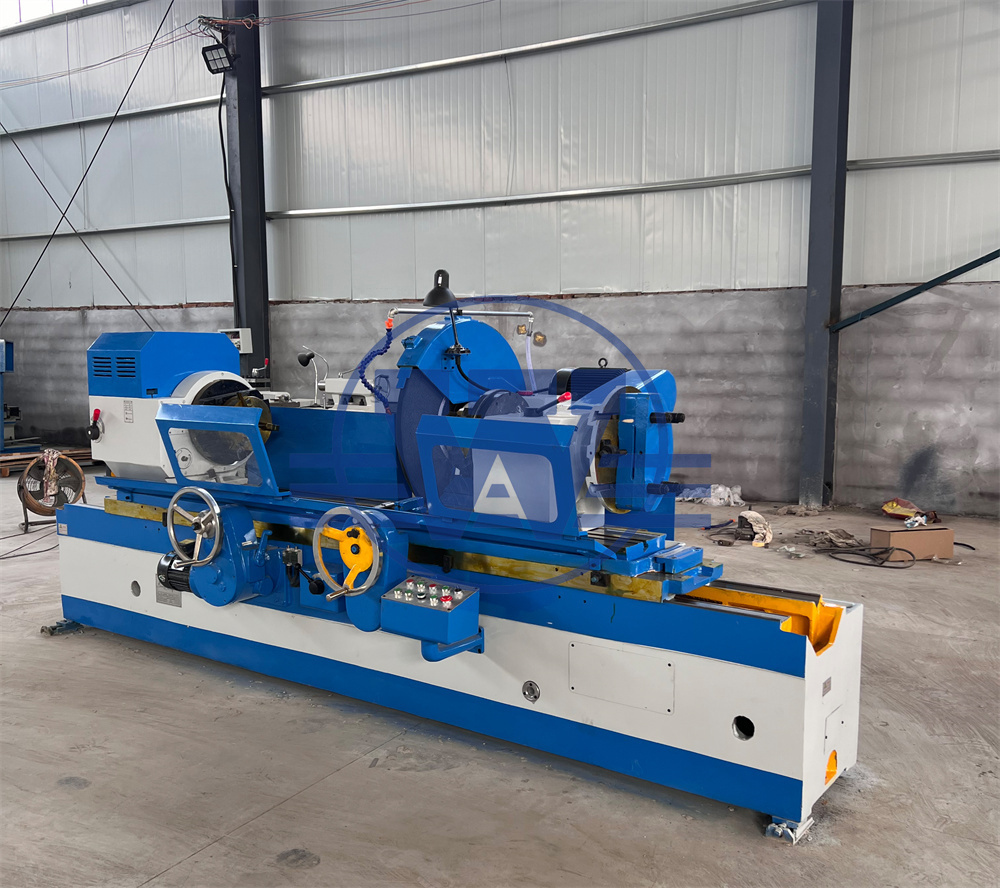

Crankshaft Grinding Machine
1. The headstock adopts a belt variable speed, which can achieve three different speeds;
2. The head and tail frame chucks can use a cross chuck structure.
3. The transmission chain of the head frame adopts a friction clutch, which is easy to adjust and operate.
Crankshaft Grinding Machine
1.Vertical movement of the workbench, separation of movement and maneuverability.
2.The lubrication of the bed guide rail and grinding wheel frame is automatically circulated through the oil pump.
The longitudinal movement of the workbench can be done manually or hydraulically. Hydraulic drive is mainly used for longitudinal grinding of outer circles and facilitates faster movement when grinding the next curved shaft neck;
Crankshaft Grinding Machine
1. The grinding wheel holder moves forward and backward quickly, controlled by a hydraulic device.
2.. The grinding wheel holder moves forward and backward quickly, controlled by a hydraulic device.
3. The grinding wheel shaft adopts Φ 80mm, with sufficient rigidity and good rigidity.
4. The grinding wheel holder adopts a rolling guide rail.
The fast forward and backward movement of the grinding wheel holder is completed by hydraulic pressure. The fast forward speed can be adjusted to adjust the speed of the grinding wheel when repairing the end face of the grinding wheel;
