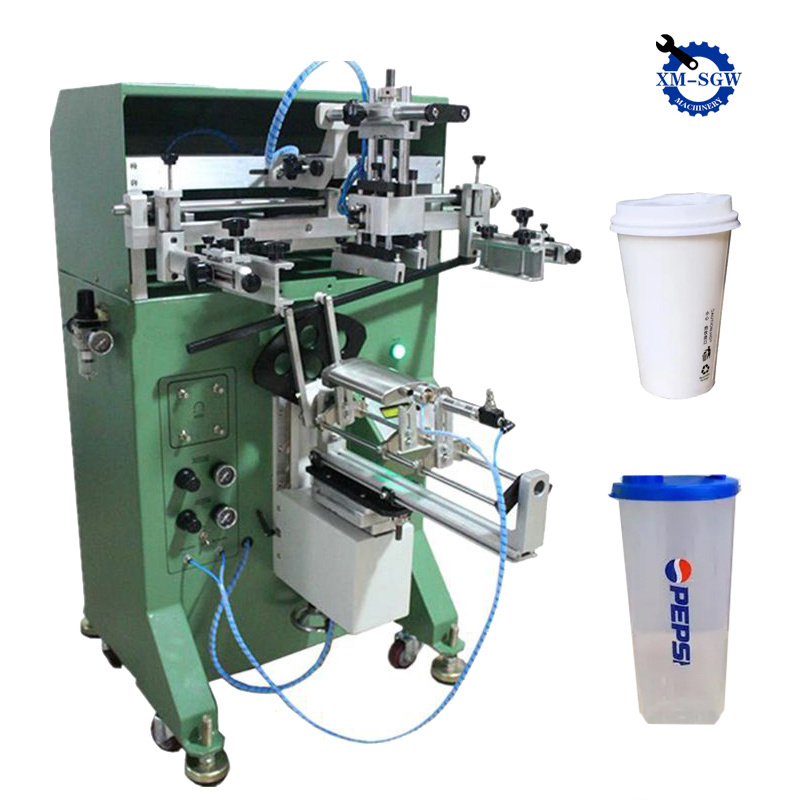

Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine
Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine

Manual Cylindrical Round Cup Silk Printer Pen Mug Bottle Rotate Screen Printing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1523
≥6 Sets
US $1223
≥10 Sets
US $923
≥1000 Sets
US $323
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Fujian, China
Brand Name:
SGW
Dimensions(L*W*H):
923*780*1344 mm
Weight:
135 KG, 135KG
Certification:
CE
Max. Print Area:
95 * 200mm
Power supply:
220v/110V 50/60HZ
Horizontal Stroke:
300 mm
Up/Down Worktable:
100 mm
Vertical Stroke:
75 mm
Air Pressure:
4-6 bar
Air Consumption:
42L/min
Printing Speed:
1000pcs/hr
Printing Area:
95 * 200mm
Main body size of machine:
940*780*1344mm

Quick Details

Condition:
New
Color & Page:
single color
Voltage:
220V/50HZ
Place of Origin:
Fujian, China
Brand Name:
SGW
Dimensions(L*W*H):
923*780*1344 mm
Weight:
135 KG, 135KG
Certification:
CE
Max. Print Area:
95 * 200mm
Power supply:
220v/110V 50/60HZ
Horizontal Stroke:
300 mm
Up/Down Worktable:
100 mm
Vertical Stroke:
75 mm
Air Pressure:
4-6 bar
Air Consumption:
42L/min
Printing Speed:
1000pcs/hr
Printing Area:
95 * 200mm
Main body size of machine:
940*780*1344mm
Recommend Products

Product Application

It is suitable for printing cosmetics, household goods, sporting goods, stationery supplies, etc. It is widely used and
essentialin daily life.
Regardless of what material the substrate is and how large it is, we can target to customize the container and make printing easy.
(1) Not limited by the size and shape of the substrate General printing, can only be carried out in the plane, and screen printing can not only be printed on the plane can also be printed on special shapes of molded objects, such as spherical curved surface, there are shapes of things can be screen printing to carry out. (2) Soft surface and small printing pressure The screen is soft and flexible. (3) Strong ink coverage Pure white printing is possible on all black paper with a strong sense of three-dimensionality. (4) Suitable for various types of ink. (5) Strong spin resistance It can keep the gloss of the printed matter unchanged. (Temperature and sunlight have no effect). This makes it possible to print some self-adhesives without additional lamination and other processes. (6) Flexible and diverse printing methods (7) easy plate making, inexpensive, easy to master the technology (8) strong adhesion (9) can be purely manual screen printing, can also be machine printing
Product Paramenters
Machine Model
SGW300A
SGW400A
SGW600A
SGW1200A
Max. Printing Size
Φ800x250mm
Φ120x250mm
Φ180x250mm
Φ360x250mm
Speed(pcs/h)
1250
1150
950
750
Weight
135KG
150KG
220KG
400KG
Machine Size
830*580*1280mm
950*800*1280mm
1300*1200*1450mm
1500*1000*1550mm
Power Supply
110/220V 50/60hz
Products Description

Machine Features

1. Microcomputer control each function action, high degree of automation, easy and convenient operation, built-in four-digit automatic counter. 2. With round, flat, cone, plane printing function, printing stroke and speed adjustable to meet different printing requirements. 3. The working table can be adjusted up and down, left and right, and the plane swing angle fine-tuning, convenient and quick adjustment. 4. Pneumatic printing scraper control and with pressure adjustment system. 5. Stable and reliable microcomputer system controller. 6. Bright and clear blue display, showing the working status of the machine at any time. 7. Excellent quality AUTONICS sensor and perfect fault alarm system. 8. Convenient foot switch, easy to operate and maintain. 9. Light but strong alloy die-casting parts and wear-resistant imported bearing bushings. 10. International famous brand SMC, FESTO and other pneumatic components, independent printing and ink return speed control.
Details Images
Marketing Campaign
Why Choose Us
XiamenSengangwei Machinery Equipment Co., Ltd. integrates printing machinery design, research and development, production, sales, and service marketing , providing various types of mechanical equipment and customized services to Chinese and foreign customers to solve the problems of customers in different countries.
The company adheres to the principle of giving priority to quality and provides customers with free proofing, free test machine and other services. Based on the original classic machinery series, the company has successfully developed its own patented machinery. Eliminate middleman fees and truly pass on profits to consumers.
The company adheres to the quality policy line of " star quality, pragmatism and innovation " and develops machinery direct sales business. The quality of the company's products and services are much higher than those of its peers. With the continued support of customers, the company's sales continue to rise and it has become one of the local star companies.
In order to repay the trust and love of consumers, the company reduces production costs by setting up its own factories, and adopts strict and high standards in material selection to truly benefit the people and put quality first .
