Quick Details
-
Capacity:
-
1kVA-1000kVA
-
Input:
-
AC input
-
Output:
-
AC output
-
Application:
-
wind hydro generator
-
Waveform:
-
pure sine wave
-
circuit mode:
-
IGBT/SPWM pulse width modulation method
-
Display:
-
Touch screen display and operation
-
cooling device:
-
Forced fan cooling
-
Working temperature:
-
-10 ℃~45 ℃
-
Altitude:
-
1500 meters
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
China
-
Capacity:
-
1kVA-1000kVA
-
Input:
-
AC input
-
Output:
-
AC output
-
Application:
-
wind hydro generator
-
Waveform:
-
pure sine wave
-
circuit mode:
-
IGBT/SPWM pulse width modulation method
-
Display:
-
Touch screen display and operation
-
cooling device:
-
Forced fan cooling
-
Working temperature:
-
-10 ℃~45 ℃
-
Altitude:
-
1500 meters
|

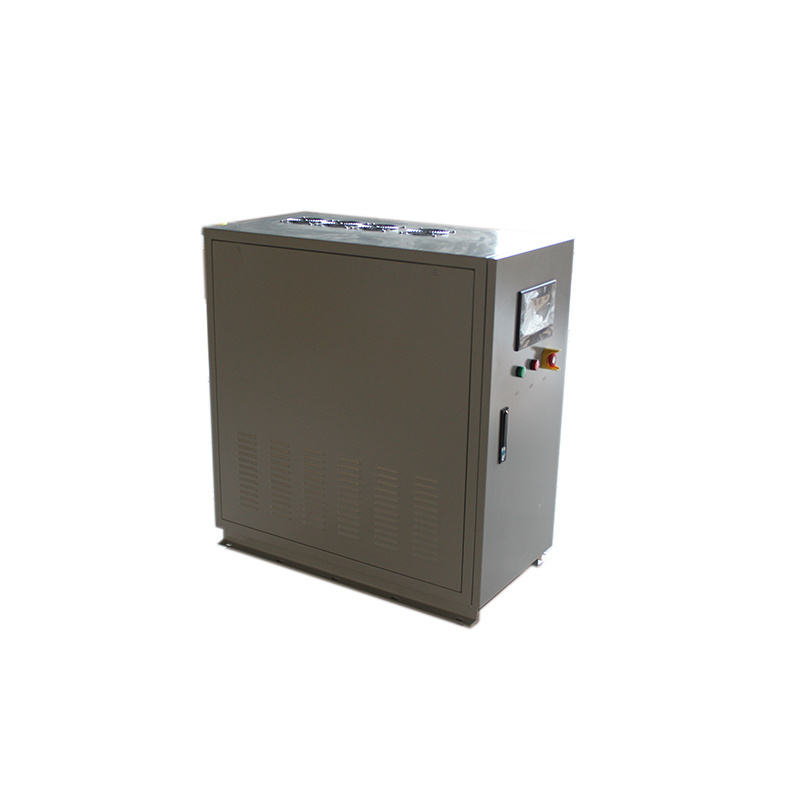

Capacity |
35KVA |
||
|
Circuit method |
IGBT/SPWM pulse width modulation method |
||
|
AC input |
Phases |
Three phase four wire |
|
|
Voltage |
260V - 480V |
||
|
Frequency |
30Hz-70Hz |
||
|
AC output |
Phases |
Three phase four wire |
|
|
Voltage |
400V |
||
|
Frequency |
50Hz |
||
|
Frequency stability |
≤±0.01% |
||
|
Voltage Stability |
≤1% |
||
|
Waveform distortion |
≤3% |
||
|
Reaction time |
2ms |
||
|
Indication/resolution |
Frequency |
0.1Hz |
|
|
Voltage |
0.1V |
||
|
Current |
0. 1A |
||
|
Power |
0.1W |
||
|
Show |
Touch screen display and operation |
||
|
Work efficiency |
High efficiency of more than 90%, applicable to a wide range of inductive, capacitive, resistive and mixed loads |
||
|
Protective devices |
Input fuseless switch, output fuseless switch, electronic circuitry to quickly detect overvoltage, overcurrent, overload, overtemperature and short circuit and automatically trip off for protection and alarm |
||
|
Insulation reactance |
500Vdc 20MΩ |
||
|
Voltage resistant insulation |
1500Vac/5mA/1min |
||
|
Cooling units |
Forced fan cooling |
||
|
Environment |
Operating temperature |
-10 °C to 45 °C |
|
|
Relative humidity |
0-90% (non-condensing state) |
||
|
Elevation |
1500 metres |
||
|
Dimensions (mm) |
D*W*H |
500*1100*1200 |
|
|
Weight (Kg) |
300 |
||
