Quick Details
-
Brand Name:
-
RIGHT
-
Model Number:
-
RT-827
-
Product name:
-
water vapour permeability tester
-
Testing box temp. control range:
-
20~45℃;distinguishability 0.1℃
-
Testing box temp. control accuracy:
-
±0.5℃
-
Testing box humidity control:
-
40%RH~95%RH±2%RH
-
Testing box humidification:
-
≥300ml/h
-
Drying box temp.control range:
-
interior temp.~199℃
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~1.5m/s
-
Number of moisture permeability cups:
-
6 pieces
-
Drying box size:
-
490*400*215mm
Quick Details
-
Warranty:
-
2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RIGHT
-
Model Number:
-
RT-827
-
Product name:
-
water vapour permeability tester
-
Testing box temp. control range:
-
20~45℃;distinguishability 0.1℃
-
Testing box temp. control accuracy:
-
±0.5℃
-
Testing box humidity control:
-
40%RH~95%RH±2%RH
-
Testing box humidification:
-
≥300ml/h
-
Drying box temp.control range:
-
interior temp.~199℃
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~1.5m/s
-
Number of moisture permeability cups:
-
6 pieces
-
Drying box size:
-
490*400*215mm

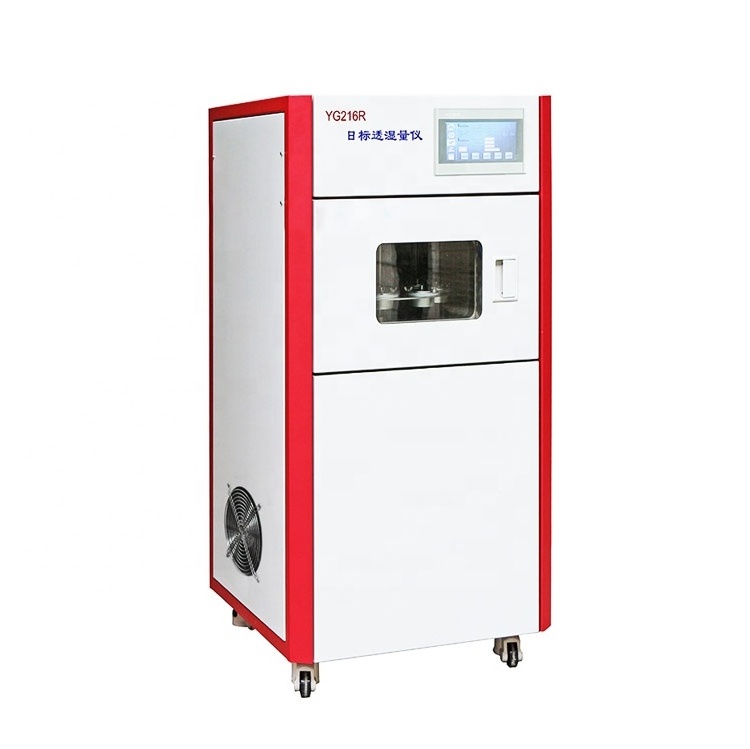

ASTM E96 Water Vapor Permeability Analyzer, Fabric Vapour Barrier Transmission Permeability (WVTR) Tester
1.
Applicable Range
:
RT-82 7A Fabric Vapor Permeability Tester
used for testing the moisture permeability of all
kinds of fabrics, including moisture-permeable coated fabrics and nonwoven fabrics.
2.
Relevant Standards
:
RT-82
7A Fabric Vapor Permeability Tester meet:
GB/T12704 ASTM E96 JIS L1099 BS 7209
3.
I
nstrument characteristics
:
3.
1
Integrated structure of Baking box and constant temperature and humidity box
3.
2
Computer controlled, LCD Chineese menu operation
3.
3
Flow cycle wind speed 0.02-1.5m/s, digital set
3.
4
Imported high-precision temperature and humidity sensor, imported motor driver, ceramic pipe heating
4.
Technical parameters
:
|
Working pattern |
Computer control, LCD Chinese menu operation,testing environment monitoring |
|
Testing box temp. control range |
20~ 45℃;distinguishability 0.1℃ |
|
Testing box temp. control accuracy |
±0.5℃ |
|
Testing box humidity control |
40%RH~ 95%RH±2%RH |
|
Testing box humidification |
≥300ml/h |
|
Drying box temp.control range |
interior temp.~ 199℃ |
|
Testing time |
1min~ 999h59min |
|
Circulating air speed |
0.02~ 1.5m/s |
|
Permeability area |
2827mm2 ( 60mmGB ) optional 3848mm2 ( 70mmASTM ) |
|
Number of moisture permeability cups |
6 pieces |
|
Drying box size |
490 * 400 * 215mm |
|
Power source |
AC220V 50Hz 4kW |
|
External dimension |
720 * 560 * 1570mm |
|
Weight |
100kg |
*Shippment
-By sea
-By plane
-By couriers, TNT, DHL, FEDEX, UPS, etc.
*Standard Export carton
1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
