Quick Details
-
Model Number:
-
RBS200110
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OncQue
-
Theory:
-
Ball Contact, Tilt Ball Contact
-
Brand:
-
Roll Ball Switch
-
Operating Temperature:
-
-25°C ~ 85°C
-
Features:
-
An ideal substitute for mercury switch
-
Current:
-
10mA
-
Humidity Range:
-
40°C / 95%RH
-
Size:
-
DIP Normal Open
-
Size / Dimension:
-
4.5*9.58*4.5
-
Measuring Range:
-
45° for 4 directions in vertical mode.
-
Sensing Range:
-
45° for 4 directions in vertical mode.
-
Function:
-
Simple ON and OFF signals
-
Sensing Object:
-
Ball-Contact
-
Application:
-
Automatically shut off for home appliances, Filter Kettle
-
Certificate:
-
ROSH
-
Specification:
-
Horizontal PCB
-
Type:
-
DIP
-
Switch State:
-
Normal Open
-
Operation Angle:
-
45±25 degree
-
Package:
-
PE Bag
-
Output:
-
Digital Sensor
Quick Details
-
Usage:
-
Tilt Detect Sensor
-
Mounting Type:
-
DIP, Soldering
-
Description:
-
Roll Ball Switch
-
Model Number:
-
RBS200110
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OncQue
-
Theory:
-
Ball Contact, Tilt Ball Contact
-
Brand:
-
Roll Ball Switch
-
Operating Temperature:
-
-25°C ~ 85°C
-
Features:
-
An ideal substitute for mercury switch
-
Current:
-
10mA
-
Humidity Range:
-
40°C / 95%RH
-
Size:
-
DIP Normal Open
-
Size / Dimension:
-
4.5*9.58*4.5
-
Measuring Range:
-
45° for 4 directions in vertical mode.
-
Sensing Range:
-
45° for 4 directions in vertical mode.
-
Function:
-
Simple ON and OFF signals
-
Sensing Object:
-
Ball-Contact
-
Application:
-
Automatically shut off for home appliances, Filter Kettle
-
Certificate:
-
ROSH
-
Specification:
-
Horizontal PCB
-
Type:
-
DIP
-
Switch State:
-
Normal Open
-
Operation Angle:
-
45±25 degree
-
Package:
-
PE Bag
-
Output:
-
Digital Sensor
Function
45° Tilt Detecting for 4 directions in horizontal mode
Specification
Operation Angle: θ = 45°±25°
Type : DIP
Suitable to use for Horizontal PCB
Switch State : Normal Open
Description: Ball-Contact
Feature
● Tiny size, suitable for small space.
● Gold-plated ball and terminals, low possibility of oxidization.
● Housing made of high insulation plastic material, free from electric conduction and rust problem.
● All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
● Simple ON and OFF signals, easy for design.
● RoHS compliance, an ideal substitute for mercury switch.
● A more economical tilt and vibration detection option than IC design solution.
● All made in Taiwan and examined before shipment
Current / Voltage Suggested
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5
|
--
|
Electrical Characteristics
|
Contact Rating
|
10 mA, 5 VDC
|
|
Contact Resistance
|
10 Ω max.
|
|
Insulation Resistance
|
1000 MΩ min., 100 VDC
|
|
Dielectric Strength
|
500 VDC min., 1 minute
|
|
Capacitance
|
5 pF max.
|
|
Conductive Rate
|
98% min.
|
Mechanical Characteristics
|
Operating Temperature
|
-25°C to 85°C
|
|
Operating Temperature
|
-40°C to 85°C
|
|
Humidity
|
40°C / 95% RH
|
|
Mechanical Life
|
2 Hz, horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

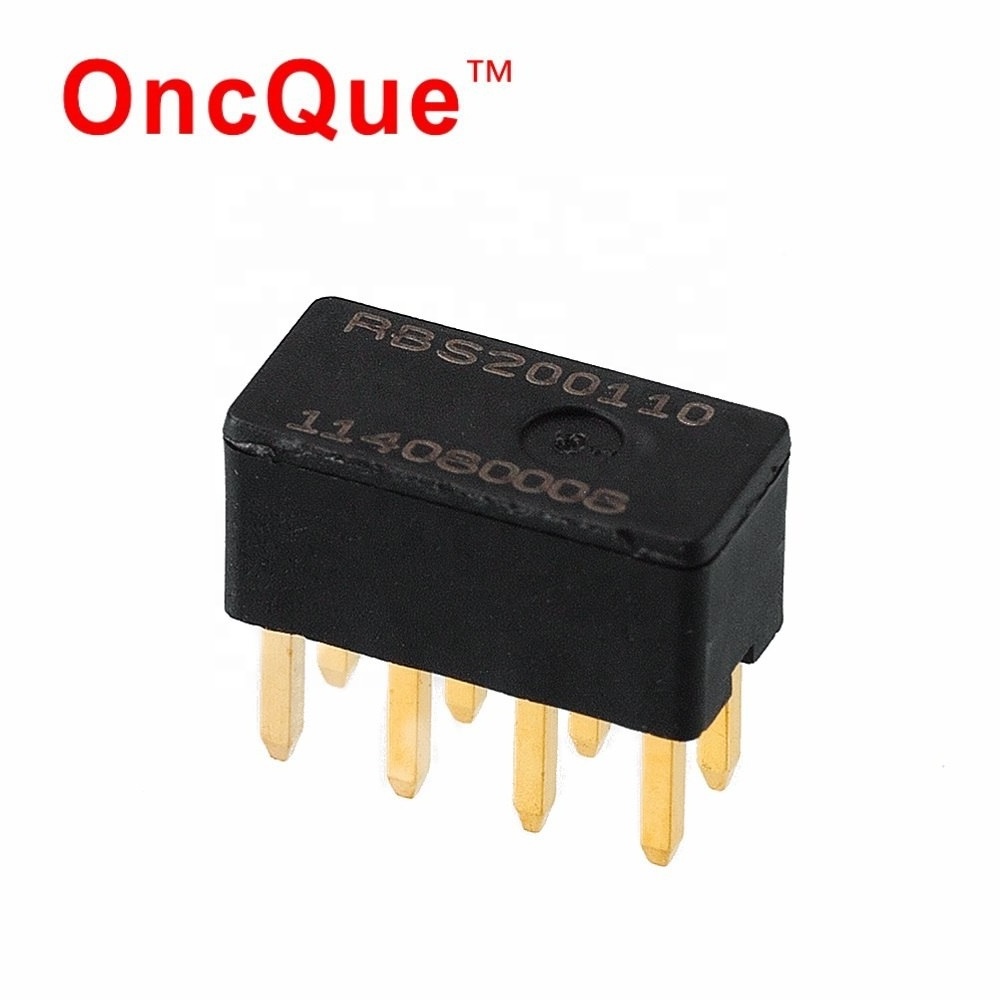

Dimension of RBS200110
All MADE IN TAIWAN and EXAMINED before shipment
Packing of RBS200110
All made in TAIWAN and Examined before shipment
|
Package
|
Quantity
|
Total Quantity
|
Dimension(mm)
|
|
PE bag
|
500 pcs
|
500 pcs
|
127L*178W
|
|
Inner box
|
10 PE bags
|
5,000 pcs
|
348L*191W*85H
|
|
Carton
|
3 Boxes
|
15,000 pcs
|
364L*278W*213H
|
Taiwan
TAIWAN Patent No. I 239025
U.S.A
U.S.A. Patent No. US 7,045,724 B1
China
Application of RBS200110
1. Automatically shut off for home appliances
2. Automatically shut off for Sporting equipment
3. Alarm system
4. Anti-theft / Anti-tamper devices
5. Being motion detection (personal locator)
What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.
