Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KCGF
-
Voltage:
-
380V
-
Weight:
-
610 KG
-
Product:
-

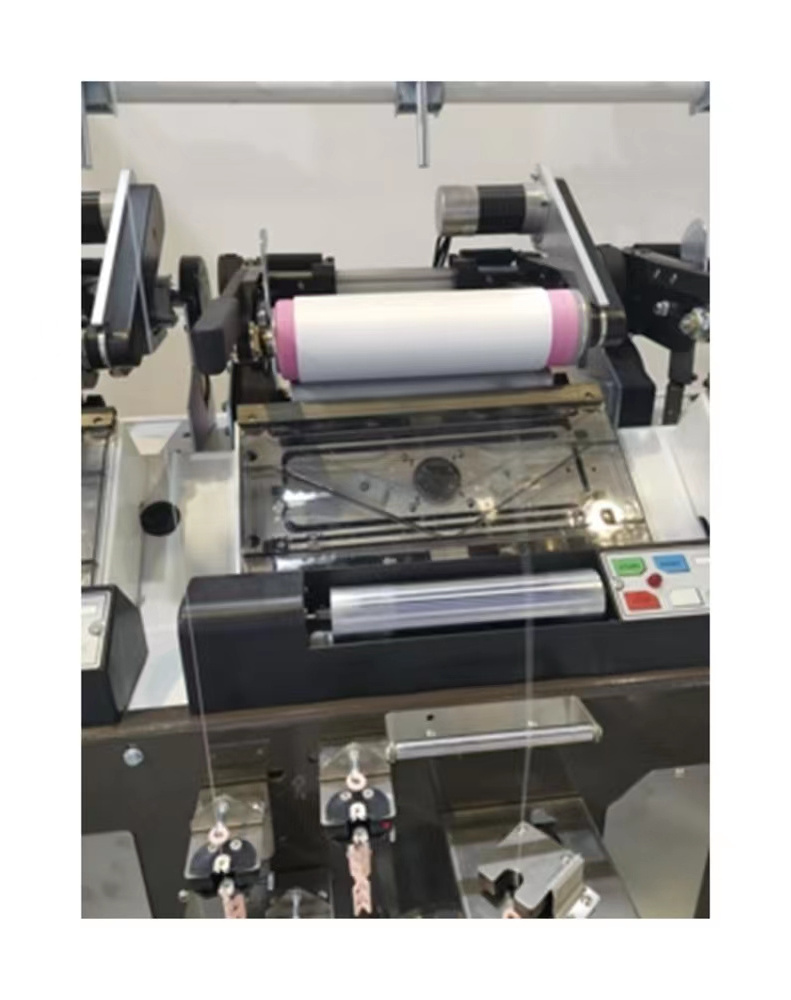

air covering yarn cone winding high efficiency covering machine KC215B
-
Application Field:
-
Spandex covering yarn,air covering yarn
-
Take Up Bobbin:
-
cylindrical cone
-
Spindle gauge:
-
485mm
-
Speed:
-
Up to 1100m/min
-
traverse:
-
130mm-250mm
-
actual power cunsumption:
-
25%-50%
-
Type of Tension:
-
Electronic tension
-
Type of winding:
-
Digital precision winding
-
Min Unit:
-
4 Spindles per set
Quick Details
-
Marketing Type:
-
Hot Product
-
Application:
-
for winding machine
-
Production Capacity:
-
80%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KCGF
-
Voltage:
-
380V
-
Weight:
-
610 KG
-
Product:
-
air covering yarn cone winding high efficiency covering machine KC215B
-
Application Field:
-
Spandex covering yarn,air covering yarn
-
Take Up Bobbin:
-
cylindrical cone
-
Spindle gauge:
-
485mm
-
Speed:
-
Up to 1100m/min
-
traverse:
-
130mm-250mm
-
actual power cunsumption:
-
25%-50%
-
Type of Tension:
-
Electronic tension
-
Type of winding:
-
Digital precision winding
-
Min Unit:
-
4 Spindles per set
Applied range: mainly apply to wind FDY+FDY, FDY+DTY, DTY+DTY with air jet; FDY or DTY air pocket winding with spandex and so on.
Features
①Computer intelligent control system, ensure convenient process adjustment and unlimited combination；
②Intelligent electronic guide yarn, double increase production efficiency and reduce cost;
③Winding and overfeeding systems, all adopt 36V safety voltage brushless DC motor, reduce power consumption cost;
④All motors are controlled by digital system, ensure high precision motor revolution and product consistency and stability.
Features
①Computer intelligent control system, ensure convenient process adjustment and unlimited combination；
②Intelligent electronic guide yarn, double increase production efficiency and reduce cost;
③Winding and overfeeding systems, all adopt 36V safety voltage brushless DC motor, reduce power consumption cost;
④All motors are controlled by digital system, ensure high precision motor revolution and product consistency and stability.
|
No
|
Item
|
Details
|
|
1
|
Machine structure
|
Single sided, single layer, 4 spindles per sections, 10 sections, 40spindles/set
|
|
2
|
Spindle gauge
|
485mm
|
|
3
|
Type of winding
|
Digital winding or precision winding
|
|
4
|
Linear speed
|
Up to 1100m/min (depend on the process parameters)
|
|
5
|
Type of tension
|
Electronic Gate tension
|
|
6
|
Take-up tube
|
Cylindrical
|
|
7
|
Package shape
|
Straight edge or tapered edge shape (The taper angle can be adjusted)
|
|
8
|
Traverse length
|
130mm-250mm(It can be changed according to the actual situation
|
|
9
|
Take-up package diameter
|
Up to 280mm(depend on the tank size, there are certain limitations)
|
|
10
|
Rated power
|
580W/spindle
|
|
11
|
Compression air
|
6Pa(depend on the process parameters)
|
