- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
DC-DZ-1220S
-
Load capacity:
-
2kg, 5kg, 20kg, 50kg
-
Unit switch over:
-
gf,kgf,lbf,N
-
Resolution:
-
0.001kg
-
Speed:
-
0~200mm/min
-
X axis movement:
-
0~75mm
-
Y axis movement:
-
0~75mm
-
Dynamical System:
-
Panasonic servo motor
-
Max travel:
-
150mm
-
Weight:
-
67Kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
220V/50HZ
-
Brand Name:
-
DECCA
-
Model Number:
-
DC-DZ-1220S
-
Load capacity:
-
2kg, 5kg, 20kg, 50kg
-
Unit switch over:
-
gf,kgf,lbf,N
-
Resolution:
-
0.001kg
-
Speed:
-
0~200mm/min
-
X axis movement:
-
0~75mm
-
Y axis movement:
-
0~75mm
-
Dynamical System:
-
Panasonic servo motor
-
Max travel:
-
150mm
-
Weight:
-
67Kg

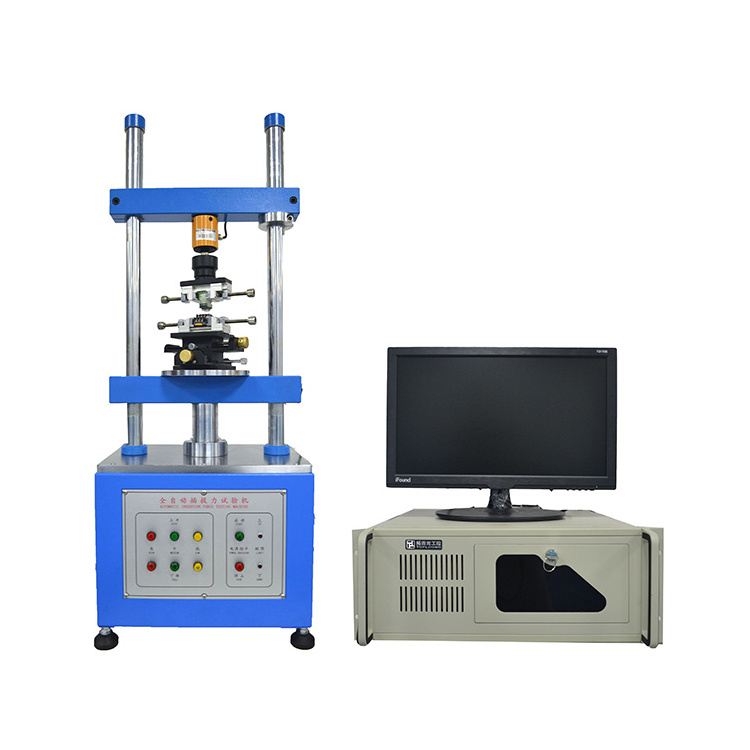

Most popular servo system automatically equipment push pull testing socket insertion force test machine
Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test
1. All the testing informations are setting by the computer and it can automatically store: testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.
2. High precise:Load resolution:0.01gf,Displacement:0.001mm
3. Adopting high precision explosion Load Cell,Repeated errors:0.01%
4. High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can eliminate noise and resonance.
5.Can enter the upper and lower limit conditions and automatically rebel the test results Passed or Fail, the maximum, minimum, average and standard deviation, etc.
Specifications:
| Load capacity | 2kg, 5kg, 20kg, 50kg(optional) |
| Unit switch over | gf, kgf, lbf, N |
| Resolution | 0.001kg |
| Load precision | ±0.2% |
| Maximum travel | 150mm |
| Test speed | 0~200mm/min |
| Speed precision | 0.50% |
| X,Y axis movement range | 0~75mm |
| Displacement resolution | 0.01mm |
| Dynamical System | Panasonic servo motor |
| Size | 360*260*940mm |
| Weight | 70kg |
| Power | 220V,50HZ / Customized |
1. Are your company a trading one or a factory ?
Factory + trade (integration),12 years focusing on test instruments field,5 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
