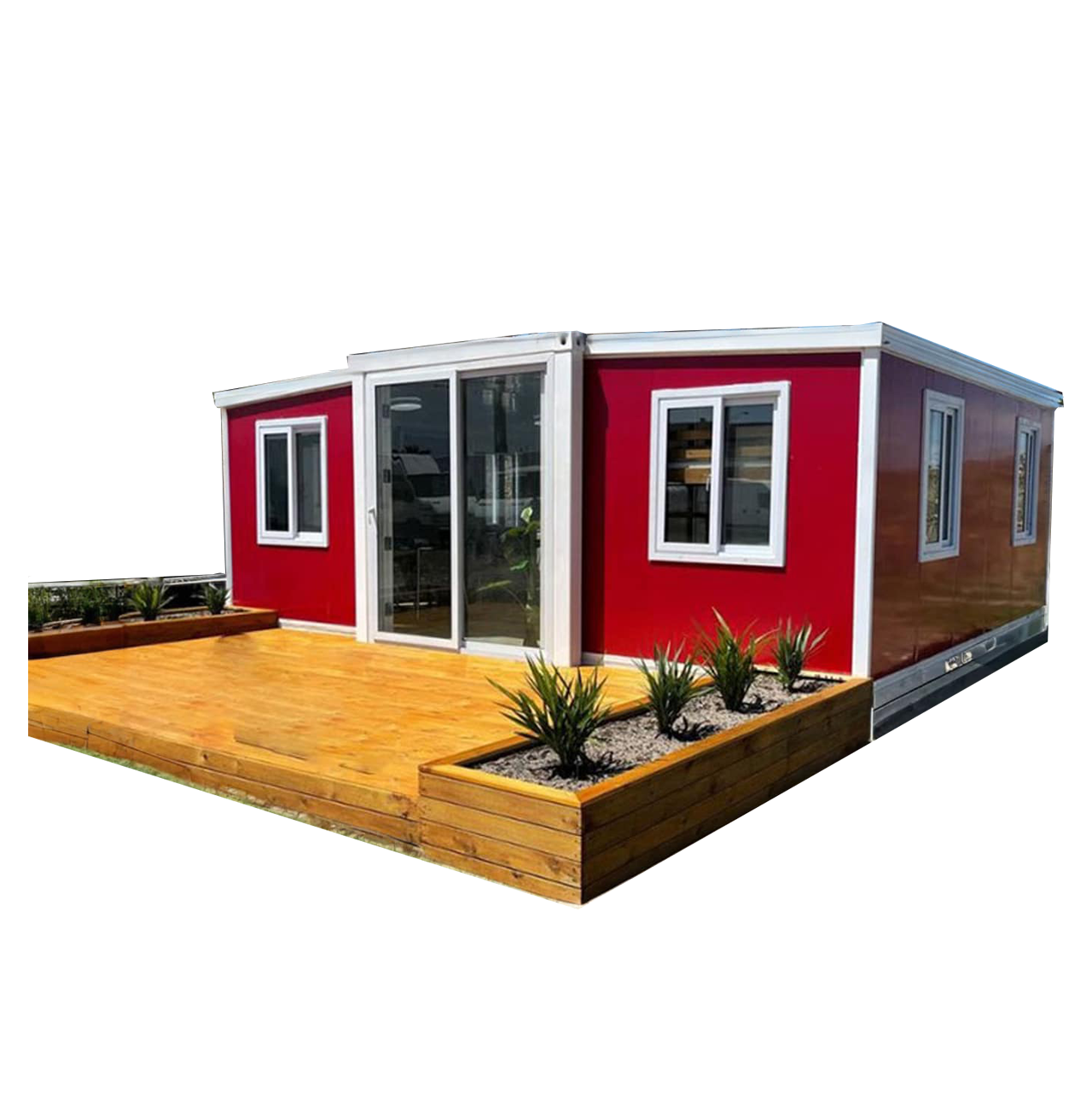

Prefab Modular Home House /Porta Cabin / Casa Australia 20 Ft And 40 Ft Folding Expandable Container House For Sale

Prefab Modular Home House /Porta Cabin / Casa Australia 20 Ft And 40 Ft Folding Expandable Container House For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $7500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Red,blue,white,and can be customized

Roof:: 50mm/75mm/100mm/120mm EPS/rockwool/glass fiber

Wall:: 50mm/75mm/100mm/120mm EPS/rockwool/glass fiber

More material:: Hot galvanized square tube

Size and layout:: Can be customized

Lifetime:: More than 30 years

Certification:: We can provide the certification you need

Frame:: Hot galvanized square tube+C purline

Quick Details

Place of Origin:: China

Product name:: Expandable Container House

Keyword:: Expandable Container House

Color:: Red,blue,white,and can be customized

Roof:: 50mm/75mm/100mm/120mm EPS/rockwool/glass fiber

Wall:: 50mm/75mm/100mm/120mm EPS/rockwool/glass fiber

More material:: Hot galvanized square tube

Size and layout:: Can be customized

Lifetime:: More than 30 years

Certification:: We can provide the certification you need

Frame:: Hot galvanized square tube+C purline

Project Introduction

Expandable box-type modular house, which includes a box module, foldable roof module; said box module includes a box-type steel structure frame, a base plate set on the steel structure frame, a first hill wall, a second hill wall located on both sides of the steel structure frame and set on opposite sides and corresponding pre-designated doors, windows and pre-built pipelines; the first and second expandable box modules, respectively, are set on both sides of said box module; said foldable roof module includes the first roof panel, the second roof panel; the upper end of the first roof panel, the second roof panel is hingedly connected through the ridge connector; the lower end of the first roof panel, the second roof panel are connected to the longitudinal beams on both sides of the top of the steel structure frame through the hinged connector. The utility model of the box-type movable modular house can be folded during transportation and unfolded during use, which solves the problems of traditional modular buildings with low floor height, limited use area, single roof form and poor user experience.

Product Paramenters

20' Expandable House

Legend Dimensions: 20' extension room spreads 6360mm in width, 5900mm in length and 2480mm in height.

Interior: can be used as a variety of functional areas, bedroom, living room, bathroom, kitchen, etc.

Application: can be used for office, home, living, flat, etc.
Material: Exterior wall panels available in a variety of colours, patterns and materials!

40' Expandable House

Legend Dimensions:

Expanded: L11800*W6470*H2530mm Folded:L11800*W2290*H2530mm

Indoor net height:2140-2260mm

Interior： can be used as a variety of functional areas, bedroom, living room, bathroom, kitchen, etc.
Application: can be used for office, home, living, flat, etc.
Material: Exterior wall panels available in a variety of colours, patterns and materials!

ITEM	SPECIFITIONS
Size	According to your requirement
Frame material	Light steel Q235B,Q345B
Wall material	50-150mm EPS/PU/rock wool/glass wool sandwich pane
Roof material	50-150mm EPS/PU/rock wool/glass wool sandwich pane
Color	Red/blue-sea/off-white or according to your requirement
Window	Aluminum alloy sliding window
Door	Aluminum alloy sliding door/steel door/PVC door/fire door
