Quick Details
-
Power Consumption::
-
<2.5W
-
Video format::
-
NTSC or PAL
-
Audio Subcarrier::
-
6.5 MHz & 6.0MHz
-
RF Connector::
-
SMA
-
Weight::
-
9g
-
Size: board:
-
36*21.5mm
-
Receiving frequency::
-
9CH
-
RX Sensitivity::
-
-95dBm
-
Band-pass filter:
-
950MHz~1450MHz
-
Dual input options::
-
4~5V
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Matek
-
Model Number:
-
VRX-1G3-V2, VTX-1G3
-
Power Consumption::
-
<2.5W
-
Video format::
-
NTSC or PAL
-
Audio Subcarrier::
-
6.5 MHz & 6.0MHz
-
RF Connector::
-
SMA
-
Weight::
-
9g
-
Size: board:
-
36*21.5mm
-
Receiving frequency::
-
9CH
-
RX Sensitivity::
-
-95dBm
-
Band-pass filter:
-
950MHz~1450MHz
-
Dual input options::
-
4~5V
Features
Features & Specifications
9CH_INTL version (1080MHz to 1360MHz)
RF power output 28dBm (630mW)
6-36V DC IN (2-8S LiPo)
Button control and LED indicators
Built-in AGC microphone
Power Consumption: <2.5W
Video format: NTSC or PAL
Audio Subcarrier: 6.5 MHz & 6.0MHz
RF Connector: SMA
Weight: 9g ( w/o antanna)
Size: board 36*21.5mm
Pads
+ IN-: 6-36V DC input with reverse polarity protection
VID: Video input
G: Ground
5V: onboard regulator output, Max. 1.5A load on this pad
Aud: Audio 6.5MHz input, onboard microphone shares this rail.
TX & RX: UART for firmware update
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, no RF output on this frequency.
New frequency and output will be enabled if no button action within 3 seconds
*** CMS control is not supported for now
Features & Specifications
Receiving frequency: 9CH (1080MHz to 1360MHz)
RX Sensitivity: -95dBm
Band-pass filter 950MHz~1450MHz
Dual input options: 4~5V via pins or 6-30V via pads
Button control and LED indicators
On board regulator output: 5V 2A @ input voltage 6~30V
Current Consumption: 0.3A @5V
Video format: NTSC or PAL
Video Output impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
ANT. input impedance: 50Ω, Typ.
RF Connector: SMA
Weight: 14g ( w/o antanna)
Size: board 43*27mm
2.54mm pins and PCB size are compatible with FS module
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, RF input is enabled on this frequency.
New frequency will be saved if no button action within 3 seconds
Package Included

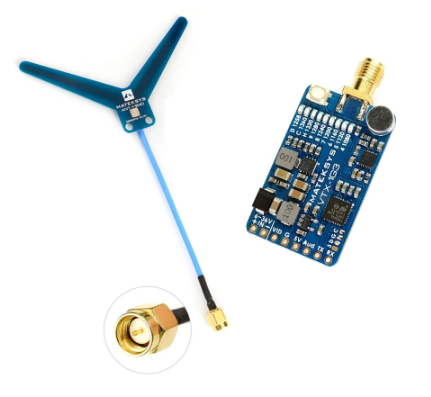

1x 1.2/1.3G Video transmitter VTX-1G3-9 or 1 x 1.2/1.3G Video receiver VRX-1G3
1x Dipole antenna_SMA, center freq 1240MHz( the module comes with antenna, if you need buy more, you can choose antenna option)
9CH_INTL version (1080MHz to 1360MHz)
RF power output 28dBm (630mW)
6-36V DC IN (2-8S LiPo)
Button control and LED indicators
Built-in AGC microphone
Power Consumption: <2.5W
Video format: NTSC or PAL
Audio Subcarrier: 6.5 MHz & 6.0MHz
RF Connector: SMA
Weight: 9g ( w/o antanna)
Size: board 36*21.5mm
Pads
+ IN-: 6-36V DC input with reverse polarity protection
VID: Video input
G: Ground
5V: onboard regulator output, Max. 1.5A load on this pad
Aud: Audio 6.5MHz input, onboard microphone shares this rail.
TX & RX: UART for firmware update
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, no RF output on this frequency.
New frequency and output will be enabled if no button action within 3 seconds
*** CMS control is not supported for now
Features & Specifications
Receiving frequency: 9CH (1080MHz to 1360MHz)
RX Sensitivity: -95dBm
Band-pass filter 950MHz~1450MHz
Dual input options: 4~5V via pins or 6-30V via pads
Button control and LED indicators
On board regulator output: 5V 2A @ input voltage 6~30V
Current Consumption: 0.3A @5V
Video format: NTSC or PAL
Video Output impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
ANT. input impedance: 50Ω, Typ.
RF Connector: SMA
Weight: 14g ( w/o antanna)
Size: board 43*27mm
2.54mm pins and PCB size are compatible with FS module
Settings
Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
Press the button to select the frequency
When the LED blinks at new frequency, RF input is enabled on this frequency.
New frequency will be saved if no button action within 3 seconds
Package Included
1x 1.2/1.3G Video transmitter VTX-1G3-9 or 1 x 1.2/1.3G Video receiver VRX-1G3
1x Dipole antenna_SMA, center freq 1240MHz( the module comes with antenna, if you need buy more, you can choose antenna option)
