- Product Details
- {{item.text}}
Quick Details
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
4mm-20mm, 100mm-900mm
-
Application:
-
Steel Structure warehouse, Industrial structure
-
Length:
-
100mm-900mm
-
Flange Width:
-
100mm-900mm
-
Flange Thickness:
-
100mm-900mm
-
Web Width:
-
100mm-900mm
-
Web Thickness:
-
100mm-900mm
-
Brand Name:
-
Tianxinda
-
Model Number:
-
A36 A572 A992
-
Product name:
-
Stainless Steel H Section
-
Usage:
-
Stone Cladding System
-
Type:
-
Cold Rolled Steel Sheet
-
Shape:
-
Round
-
Material:
-
304/316
-
Width:
-
Requested
-
Item Type:
-
Bolt Sets
-
MOQ:
-
1 Tons
Quick Details
-
Grade:
-
Q235
-
Standard:
-
ASTM
-
Tolerance:
-
±1%
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
4mm-20mm, 100mm-900mm
-
Application:
-
Steel Structure warehouse, Industrial structure
-
Length:
-
100mm-900mm
-
Flange Width:
-
100mm-900mm
-
Flange Thickness:
-
100mm-900mm
-
Web Width:
-
100mm-900mm
-
Web Thickness:
-
100mm-900mm
-
Brand Name:
-
Tianxinda
-
Model Number:
-
A36 A572 A992
-
Product name:
-
Stainless Steel H Section
-
Usage:
-
Stone Cladding System
-
Type:
-
Cold Rolled Steel Sheet
-
Shape:
-
Round
-
Material:
-
304/316
-
Width:
-
Requested
-
Item Type:
-
Bolt Sets
-
MOQ:
-
1 Tons
Product information

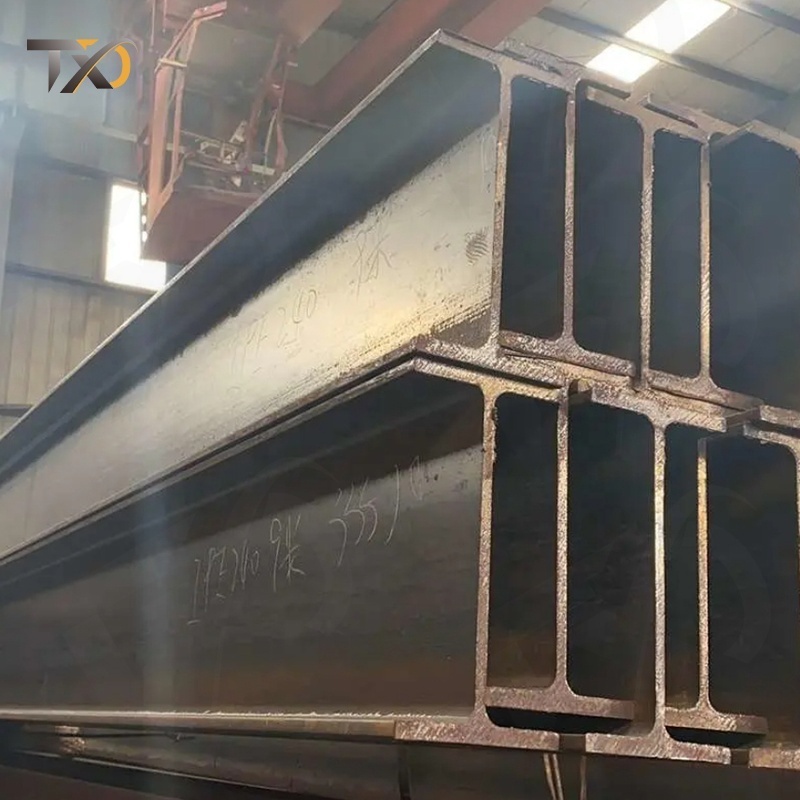

H-beam steel
is an economical and efficient profile with more optimized section area distribution and more reasonable strength-to-weight ratio, so it is named because its section is the same as the English letter "H". Because all parts of H beam are arranged at right angles, H beam has been widely used for its advantages of strong bending resistance, simple construction,cost saving and light structural weight in all directions.
|
Product Name
|
high quality structural carbon steel h beam profile h iron beam hot rolled mild steel q235b h beam
|
|
Size
|
1.Web Width (H): 100-900mm
2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm |
|
Length
|
1m - 12m , or according to your requests.
|
|
Standard
|
GB ASTM, JIS, SUS, DIN, EN etc
|
|
Material
|
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
|
|
Technique
|
Cold Rolled,Hot Rolled or Welded
|
|
Application
|
Industry,Construction,Decoration,Shipbuilding,Bridging,etc.
|
|
Price Item
|
FOB,CIF,DDU,FCA,EXW ,.etc
|
|
Packing
|
Export standard packing or according to customers' requirement
|
|
Supply Ability
|
Within 7-10 workdays,25-30days when the quantity beyond 1000tons
|
|
H beam detail size
|
|
|
|
|
|
|||||
|
H Type Steel Size and Theoretical Weight
|
|
|
|
|
|
|||||
|
Size
(mm) |
Theoretical Weight
(kg/m) |
Size
(mm) |
Theoretical Weight
(kg/m) |
Size
(mm) |
Theoretical Weight
(kg/m) |
|||||
|
100*50*5*7
|
9.3
|
250*125*6*9
|
29
|
446*199*8*12
|
65.1
|
|||||
|
100*100*6*8
|
16.9
|
250*250*9*14
|
71.8
|
450*200*9*14
|
74.9
|
|||||
|
125*60*6*8
|
13.1
|
294*200*8*12
|
55.8
|
482*300*11*15
|
110.8
|
|||||
|
125*125*6.5*9
|
23.6
|
298*149*5.5*8
|
32
|
488*300*11*18
|
124.9
|
|||||
|
148*100*6*9
|
31.1
|
340*250*9*14
|
36.7
|
496*199*9*14
|
77.9
|
|||||
|
150*75*5*7
|
14
|
300*150*6.5*9
|
93
|
500*200*10*16
|
88.1
|
|||||
|
150*150*7*10
|
20.7
|
300*300*10*15
|
78.1
|
582*300*12*17
|
132.8
|
|||||
|
175*90*5*8
|
18
|
346*174*6*9
|
41.2
|
588*300*12*20
|
147
|
|||||
|
175*175*7.5*11
|
40.4
|
350*175*7*11
|
49.4
|
596*199*10*15
|
92.4
|
|||||
|
194*150*6*9
|
29.9
|
350*350*12*19
|
134.9
|
600*200*11*17
|
103.4
|
|||||
|
198*99*4.5*7
|
17.8
|
390*300*10*16
|
104.6
|
700*300*13*24
|
181.8
|
|||||
|
200*100*5.5*8
|
20.9
|
396*199*7*11
|
56.1
|
800*300*14*26
|
206.8
|
|||||
|
200*200*8*12
|
49.9
|
400*200*8*13
|
65.4
|
900*300*16*28
|
240.1
|
|||||
|
244*175*7*11
|
43.6
|
400*400*13*21
|
171.7
|
|
|
|||||
|
248*124*5*8
|
25.1
|
440*300*11*18
|
120.8
|
|
|
|||||
|
Length=6-12meters
|
|
|
|
|
|
|||||
Main application of H-beam steel:
Various civil and industrial building structures; various long-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large bridges that require large bearing capacity, good section stability, and large spans
Various civil and industrial building structures; various long-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large bridges that require large bearing capacity, good section stability, and large spans
Production Process
We have multiple high-quality production lines and can supply large quantities of orders. We can provide different specifications according to your requirements and we can integrate all resources, provide excellent service, help you save time in purchasing,and provide each customer with the best quality products and services.
Packing and shipping
1. Package with 20 ft or 40 ft container, fixing spiral steel pipe in the container with steel cable;
2. Package in bulk;
3. Pieces per container depending on the diameter of spiral steel pipes.
4.According to customers' requirement.
2. Package in bulk;
3. Pieces per container depending on the diameter of spiral steel pipes.
4.According to customers' requirement.
