Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
5000*2200*2000 mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2022
-
Blade tilt:
-
45°
-
Guide Rail:
-
Hiwin linear guide
-
Nesting:
-
manual or automatic
-
Lubrication:
-
automatic
-
Certification:
-
CE
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
16 KW
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
high
-
Place of Origin:
-
China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
5000*2200*2000 mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2022
-
Blade tilt:
-
45°
-
Guide Rail:
-
Hiwin linear guide
-
Nesting:
-
manual or automatic
-
Lubrication:
-
automatic
-
Certification:
-
CE

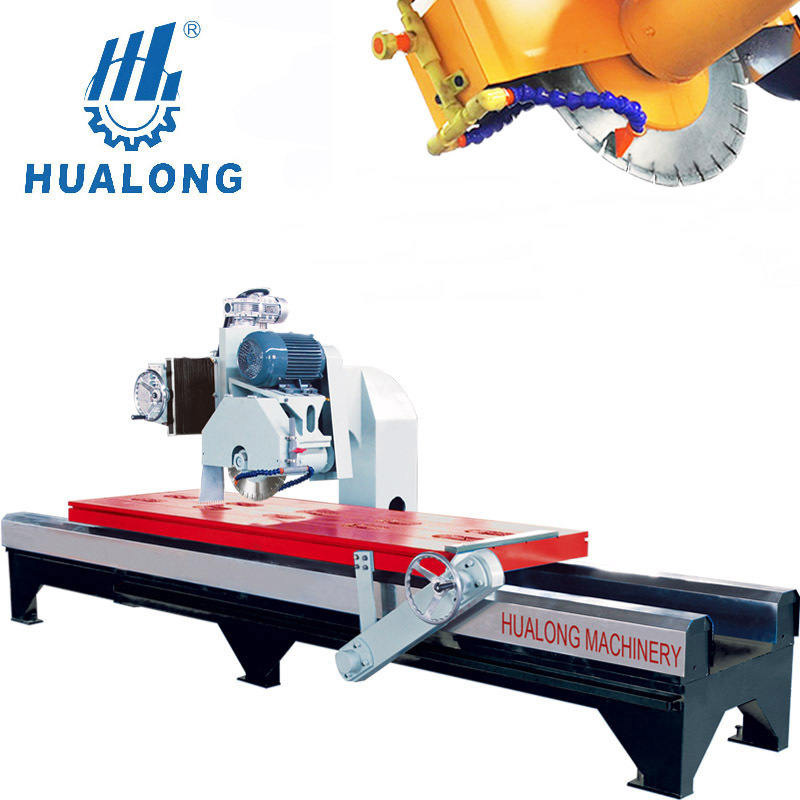

Manual Stone Edge Cutting Machine
HSQ-2800 with the design of man-machine integration mode of operation, is specially for an easy and high efficiency processing for the edge cutting and trimming of small slates, tile, lath or even thick slab.
Main Features:
1) Cutting head can rotate 0-90 degree and be electrically moving up and down.
2) Workbench drived by hand.
3) Strong constructure, stable performance and fine appearance.
|
Technical Data for HSQ-2800
|
|
|
|
|||
|
Configuration
|
Dimension of working platform
|
mm
|
3000 x 900
|
|||
|
|
Diameter of blade
|
mm
|
350 - 600
|
|||
|
Main Performance Parameters
|
Processing extent of cutter
|
mm
|
3000x1200x180
|
|||
|
|
Rotation angle of cutter
|
o
|
0-90
o
|
|||
|
|
Power of main motor
|
kw
|
11/15
|
|||
|
|
Gross Power
|
kw
|
16
|
|||
|
Appearance
|
Gross weight
|
kg
|
2000
|
|||
|
|
Dimensions (L x W x H)
|
mm
|
5000 x2200 x 2000
|
|||
Quality Fabrication Equipment
* Many machines available to order
* Experienced techs for all your questions
* Customization available
Pre-Sales Service
* Inquiry and consulting support.
* Technical cooperation.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
