Quick Details
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
45
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
45000
-
Warranty(Year):
-
2 years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
≤85℃
-
Rate Power:
-
3KW
-
Continuous Running Time:
-
12hours
-
Mast Height:
-
3 meters
-
Assembly Size:
-
1500mm*900mm*2500mm
-
Weight:
-
857kgs
-
mast lift systems:
-
manual
-
Alternator:
-
brushless
-
wheels:
-
4x6" with lock
-
Engine:
-
178F
-
Type:
-
movable
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Perfectotal
-
Model Number:
-
PT-3LT
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
45
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
45000
-
Warranty(Year):
-
2 years
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
≤85℃
-
Rate Power:
-
3KW
-
Continuous Running Time:
-
12hours
-
Mast Height:
-
3 meters
-
Assembly Size:
-
1500mm*900mm*2500mm
-
Weight:
-
857kgs
-
mast lift systems:
-
manual
-
Alternator:
-
brushless
-
wheels:
-
4x6" with lock
-
Engine:
-
178F
-
Type:
-
movable

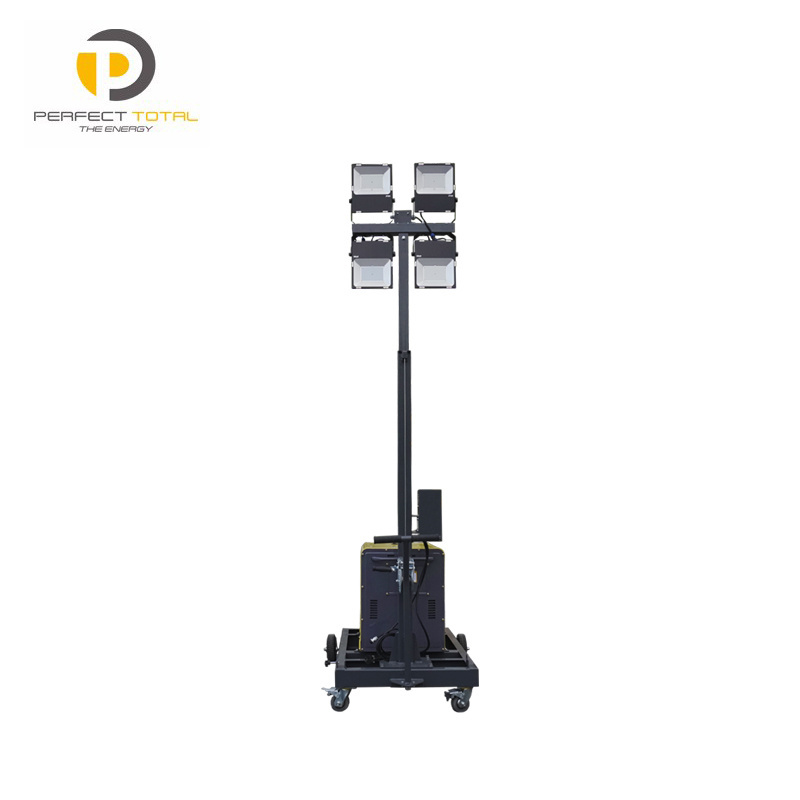

Mini Portable Construction Mobile Diesel led Light Tower
| Fuel | Diesel Generator |
| Rate Power | 3KW |
| Mast Height | 3 meters, 2 sections ( Options : 4.5m, 6m , 9m) |
| Continuous Running Time | 12hours |
| Price | 1*** USD |
PT-3LT
- High-output LED lamps
- Easy to operate and maintain
- Heavy-duty hand-winch with safety brake allows one person to raise the mast
- Energy-efficient operation results in long run times
- Electric start motor
- Durable powder-coat finish resists the elements
- Compact and narrow body design for easy transport
- Lockable wheels x2 for security
- A long handle for easy moving from one place to another
Power System
Air-cooled and Diesel-powered
Rate Power 3KW
Rated Voltage 220V
Frequency 60Hz ( 50Hz)
Phase Number Single
Continuous Running Time 12hours
Mast
Height 3 meters, 2 sections (Options: 4.5m, 6m , 9m)
With 2000LBS hand-winch with safety brake
Lamps
75W x4 LED, AC220V
Dimension
Weight 857kgs
Assembly Size 1500mm x900mm x2500mm
32AMP 250V 50HZ IP66 socket x1
DC12V 8.3AMP output x1
Accessories Package
Extra 8 inch wheels x2
Rings x2
Manual x1
Options
The frequency can be 50Hz, 60Hz
The mast height can be 3m, 4.5m, 6m, 9m etc.
Rated Power of diesel generator
Watts of lamps
