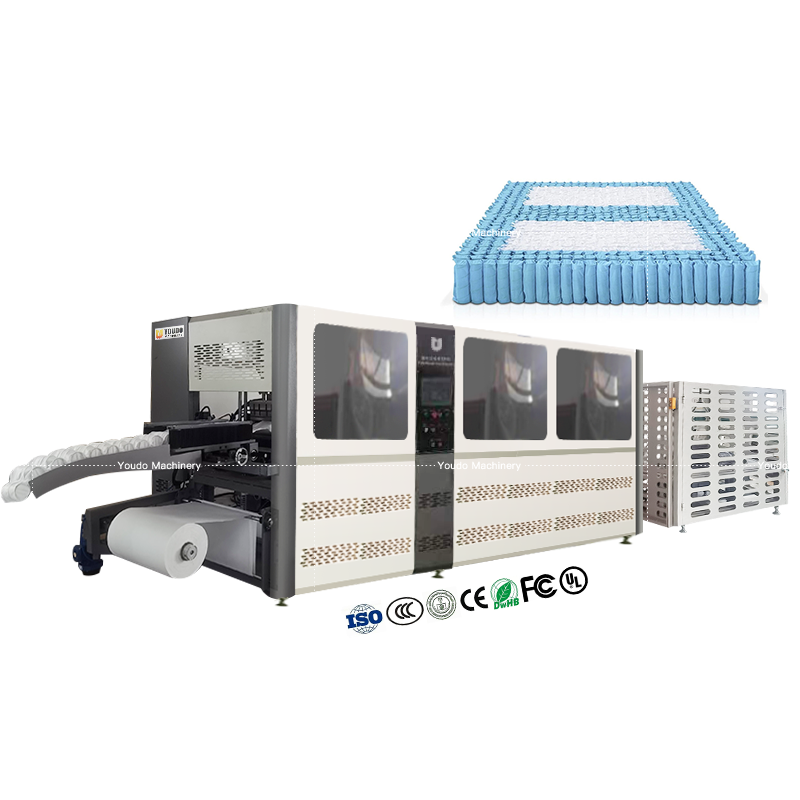

130-160 pcs/min Automatic Pocket Spring Making Machine Pocket Spring Mattress Making Machine

130-160 pcs/min Automatic Pocket Spring Making Machine Pocket Spring Mattress Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $40000

≥3 Sets

US $38000

≥6 Sets

US $36000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: New Product 2024

Voltage:: 380V

Power:: 8.5kw

Dimension(L*W*H):: 3200*1600*1900mm

Weight:: 2600

Dimension:: 3100*1500*1800mm

Applicable non woven width:: 320mm-560mm

Applicable non woven weight:: 45-90g/m2

Wire diameter:: 1.6-2.3mm

Spring core diameter:: 60-72mm

Speed:: 65-70PCS/min

Air source:: 0.2m3/min (0.8Mpa)

Application:: Mattress

Product name:: Pocket Spring Making Machine

Type:: Automatic

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: UD

Applicable Industries:: Mattress

Marketing Type:: New Product 2024

Voltage:: 380V

Power:: 8.5kw

Dimension(L*W*H):: 3200*1600*1900mm

Weight:: 2600

Dimension:: 3100*1500*1800mm

Applicable non woven width:: 320mm-560mm

Applicable non woven weight:: 45-90g/m2

Wire diameter:: 1.6-2.3mm

Spring core diameter:: 60-72mm

Speed:: 65-70PCS/min

Air source:: 0.2m3/min (0.8Mpa)

Application:: Mattress

Product name:: Pocket Spring Making Machine

Type:: Automatic

Product introduction

CNC Pocket spring making machine

130 pcs spring/min

80 pcs mattress/8 hour
The average number of springs required to make a mattress in 6 minutes.

No cylinder structure, low maintenance cost. The task mode can be set to automatically stop after completing the task, effectively
reducing waste.

Modle	UDZD-DZJ-130A
Machine efficiency	9600 units/hour;
Gas source demand	0.6MPA;
Machine maximum power	15 KW/h;
Applicable spring diameter	Ø 60- Ø 75mm;
Height of the spring after entering the bag	60-180mm
Spring steel wire diameter	Ø 1.6- Ø 2.2mm;
Applicable non-woven fabric width	280-600mm;
Voltage	3AC380-400V, 50/60HZ
Body size	L7350 × W 1420 × H1930mm，
Body weight	3500kg

Finished product display

Working principle

1. The transmission of the wire rack is controlled by a frequency converter, which automatically adjusts the speed of the transmission line. The maximum transmission weight reaches 1000KG

2. Mature mechanical spring winding machine head, simple spring adjustment and easy operation.

3. Mechanical conveying is controlled by a servo system, with precise movements.

4. The frequency converter is used for fabric feeding, effectively reducing the edge burst rate, and equipped with fabric feeding function, saving time and materials.

5. Titanium alloy ultrasonic mold, sturdy and durable.

6. Fully intelligent real-time fault monitoring, safe and reliable.

7. No cylinder structure, low maintenance cost.

8. The task mode can be set to automatically stop after completing the task, effectively reducing waste.

Product detail

High power electrical appliances with faster heat treatment speed and temperatures up to 1200 ℃

High speed no-cam spring maker
Stable production 130pcs/min

Titanium alloy ultrasonic mold, sturdy and durable.

Product real photo

After Sales Service

Quality assurance

We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.

We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.

We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.

Test and tear down

We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.

Package

We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.

Transportation

We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.

Installation and commissioning

After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging.
After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers'
round-trip air tickets and accommodation, as well as salary.

FAQ

Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 20 years.

Q: Can we visit your factory?
A: Warmly welcome, my friends! Once we have your schedule, we will arrange professional sales team to follow up.

Q: Can you provide me with some samples?

A:Yes, we can provide you with samples free of charge, but the freight needs to be borne by you.

Q: I'm a small wholesaler. Do you accept small orders?
A: If you are a small wholesaler, no problem, we are willing to grow with you.

Q: How are you doing in quality control?
A: we have the inspection of the quality supervision department every year and issue the inspection report. Each batch of goods will be strictly controlled Controlled, there will be quality regulations within the company to ensure that each batch of products are qualified and of the best quality.

Q: How long is the delivery date of the machine?
A: Normal in 20-25 days

Q: How long is the warranty period of your machine?
A:1-year free maintenance and lifelong warranty

Q: How to ship your machines to my country?
A:We have more than 16 years of foreign trade experience and can provide you with a variety of ways to choose, cheap, fast and safe
