Quick Details
-
type:
-
synchronous motor
-
color:
-
grey
-
Speed:
-
1-100rpm
-
Insulation:
-
B
Quick Details
-
AC Voltage:
-
12-240V
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
CCC, RoHS
-
type:
-
synchronous motor
-
color:
-
grey
-
Speed:
-
1-100rpm
-
Insulation:
-
B

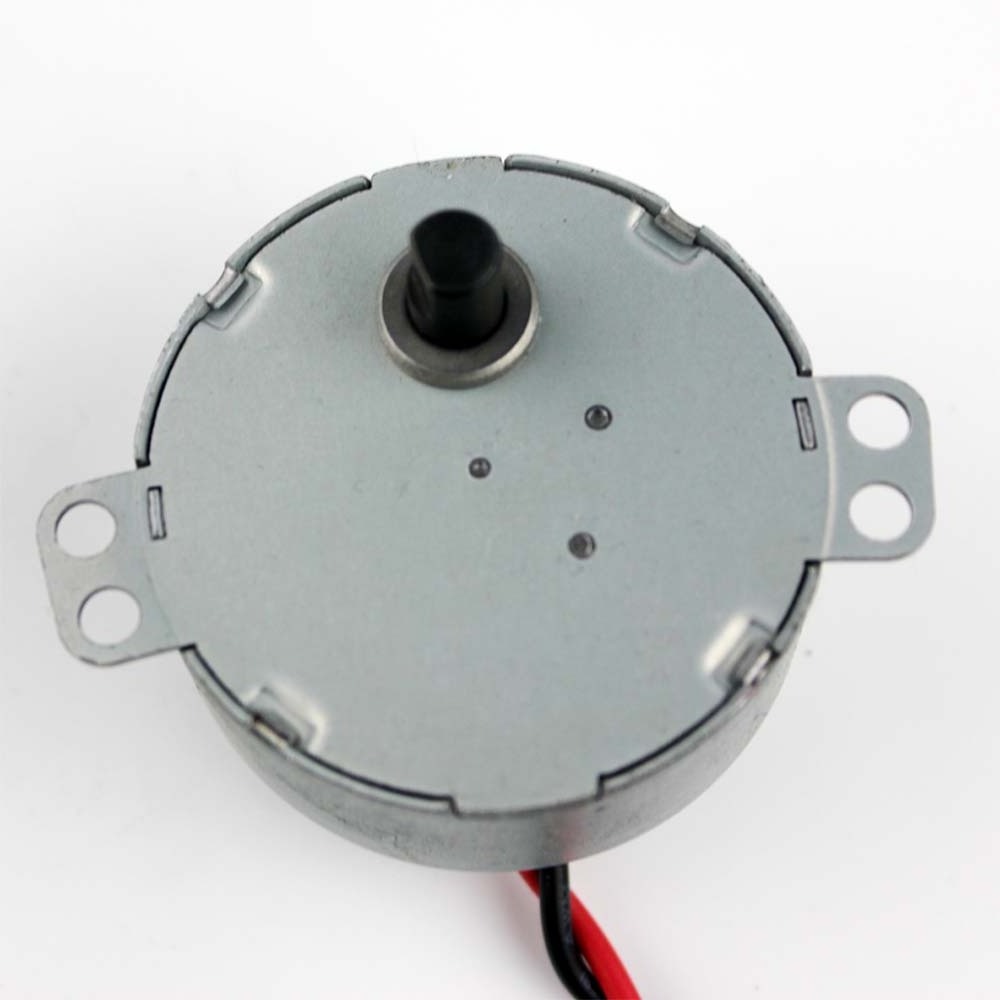

Ac Synchronous Electric Motor Model Trains Motor
1.APPLICATIONS: Electric fan \ Heater \Laminator \ Healthful instrument \ Video games \ Spotlights \
Air Conditioner \ Other
2.TYPE: Synchronous motor
3.MOQ: 2000pcs
4.LEAD TIME: 25-30 days
5.CERTIFICATION: CCC; ROHS; UL; VDE
Product Specifications
| Item | Specifications | Unit | ||||||
| Raged Voltage | 12 | 24 | 100 | 110 | 120 | 220 | 240 | VAC |
| Power Frequency | 50/60 | HZ | ||||||
| Rotation | CW,CCW,CW/CCW | |||||||
| Speed | 1/1.2 | 2/2.5 | 2.5/3 | 3.3/4 | 4.2/5 | 5/6 | 6/7 | R.P.M |
| 7.5/9 | 10/12 | 15/18 | 20/24 | 30/36 | 60/72 | 83/100 | ||
| Stall Torque | 16.0 | 16.0 | 16.0 | 10.0 | 10.8 | 9.0 | 7.0 | kgf-cm |
| 6.0 | 4.5 | 2.5 | 2.2 | 1.5 | 0.75 | 0.5 | ||
| Frictional Torque | 7~10 | kgf-cm | ||||||
| Number of Poles | 10 | Pole | ||||||
| Input Power | 3.8 , 4.0 | W | ||||||
| Insulation Strength | AC 1500V-1min Cut-Off Current :10mA | |||||||
| Insulation Class | A , E | Class | ||||||
.
Service:
With a professional engineer team, we can offer the professional opinions when you want to
make OEM products. With active and enthusiastic Sales team, they will be the bridge of you
and factory. Once inquiry received, we promise reply in less than 24 hours. Our mission is try
our best to offer a reliable product with reasonable cost to our valuable customers.
Warranty:
12months after delivery.
Introduction: Ningbo Mingjong Electric Industry Co., Ltd. was established in 1993 in Ningbo, China. In order to provide the best services and products for worldwide customers, we continuously carry out innovations with our core competence.
Main product: Mini Motors, timer switch, RF control...
