Quick Details
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
390 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V /380V
-
Weight (T):
-
0.12 T
-
Boring Range:
-
55-300mm
-
Feed Stroke (Standard):
-
260mm (support customization)
-
Boring Bar (Standard):
-
50*1600mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-390 r.p.m(stepless speed regulation)
-
Power Type:
-
Servo Motor
-
End Face Device Feed:
-
0.1/0.15 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
-
Feed Rate:
-
0-3mm (stepless speed regulation)
Quick Details
-
Table Travel (X) (mm):
-
260 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
390 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V /380V
-
Weight (T):
-
0.12 T
-
Boring Range:
-
55-300mm
-
Feed Stroke (Standard):
-
260mm (support customization)
-
Boring Bar (Standard):
-
50*1600mm (support customization)
-
Accessories:
-
Optional
-
Boring Bar Speed:
-
0-390 r.p.m(stepless speed regulation)
-
Power Type:
-
Servo Motor
-
End Face Device Feed:
-
0.1/0.15 mm
-
Operation Method:
-
Automatic / Manual
-
After-sales Service:
-
Online Support/Video Support
-
Feed Rate:
-
0-3mm (stepless speed regulation)
Products Description
Specification
|
Name
|
Ltdhs-50 High-Speed Boring And Welding Machine
|
|
Model
|
Ltdhs-50
|
|
Max Bore Diameter Mm
|
300
|
|
Min Bore Diameter Mm
|
55
|
|
Feed Stroke Mm (Standard)
|
260 (Support Customization)
|
|
Boring Bar Mm(Standard)
|
50 × 1600 Mm (Customized)
|
|
Boring Bar Speed Rpm
|
0 – 390R/Min (Stepless Speed Regulation)
|
|
Motor Power Kw
|
3Kw
|
|
Power Type
|
Servo Motor
|
|
Feed Rate Mm
|
0-3Mm (Stepless Speed Regulation)
|
|
End Face Device Feed
|
0.1/0.15
|
|
Depth Of Cut On One Side Mm
|
≥ 3Mm
|
|
Roughness
|
Ra3.2
|
|
Roundness Mm
|
≤0.02Mm
|
|
Operation Method
|
Automatic / Manual
|
|
Host Weight Kg
|
120
|
|
Package
|
Fumigation Disinfection Plywood Packing Box
|

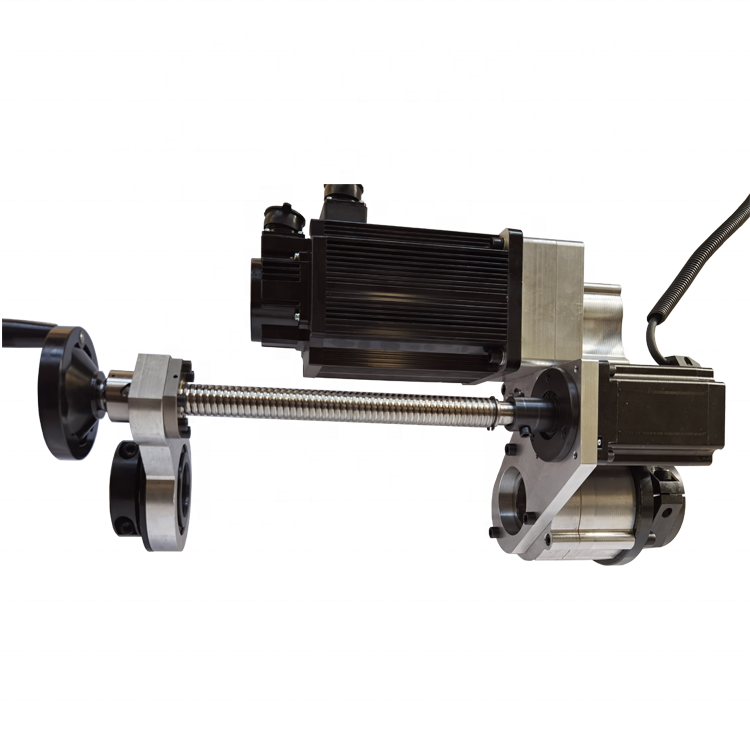

LTDHS-50 Portable Boring Machine is widely used in the processing and repairing of shaft pin holes such as ship, pipeline inner hole, construction machinery, small rudder hole, stern shaft hole, rudder blade hole, etc.; pump body, valve body, turbine set hole With its portability and powerful processing capabilities, it serves mining, marine engineering, shipbuilding, petrochemical, metallurgy, electric power and other industries.
◆Pre-sale supply project design, process design. Help you choose the right machine. Manufacture the machine according to your requirements.
◆After-sale warranty for one year. Quality problem, we will send you accessories. Free maintenance for life (excluding shipping and accessories).
◆CE standard, stable performance, safe, quiet, simple and convenient maintenance, small footprint, and operation can be completed by only one person.
◆The drive motor provides enough torque to ensure strong and stable cutting process.
◆You can fix the tool holder on any position of the boring bar.
◆Using PLC automatic controller to realize common boring, fixed length boring, spiral welding and weaving welding. Precise control and easy operation!
◆The 2-in-1 wire boring and welding machine can perform wire boring and automatic welding at the same time by changing different mechanisms.
◆Processing and repairing concentric holes, multi-row holes, excavator, loader, crane, crawler crane
