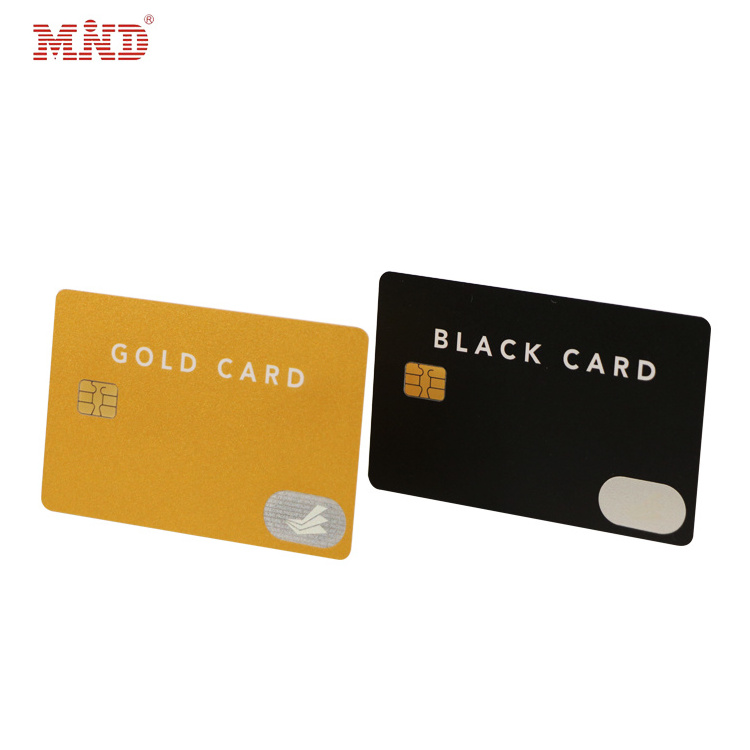

Customized Blank Prepaid Visa Master Credit Gift Card CPU THD89 Paypal Debit Card with Visa Logo

FOB Reference Price: Get Latest Price

≥500 Pieces

US $1.5

≥5000 Pieces

US $1.3

≥10000 Pieces

US $1

≥50000 Pieces

US $0.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: MIND

Item name:: Customized Blank CPU Prepaid Visa Master Credit Cards

Material:: PVC/PET/PETG

Usage:: Support project customization

Size:: 85.5*54mm or customized

Chip Available:: THD89

Certificate:: ISO9001-2008

Protocol:: ISO 14443A & ISO 7816

Printing:: Offset Printing/CMYK 4C printing

Craft:: Barcode, magnetic stripe, signature stripe, UV, embossing etc.

Surface Finish:: matte, glossy, frosted,brush, metallic, mirror etc..

Quick Details

Special Features:: Waterproof / Weatherproof

Communication Interface:: RFID

Frequency:: customized

Place of Origin:: Sichuan, China

Brand Name:: MIND

Item name:: Customized Blank CPU Prepaid Visa Master Credit Cards

Material:: PVC/PET/PETG

Usage:: Support project customization

Size:: 85.5*54mm or customized

Chip Available:: THD89

Certificate:: ISO9001-2008

Protocol:: ISO 14443A & ISO 7816

Printing:: Offset Printing/CMYK 4C printing

Craft:: Barcode, magnetic stripe, signature stripe, UV, embossing etc.

Surface Finish:: matte, glossy, frosted,brush, metallic, mirror etc..

Products Description

We are a powerful factory focusing on transportation projects in various countries, with more than 25 years of production experience.
At present,we are supplying public transport cards for more than 100 cities in domestic and overseas including Southeast Asia, Europe, South America, North America etc. Application icluding but not limited to highway tolls, bus payments,subway tickets etc.
We can provide card solutions for transportation projects with different functions, including stored-value cards, travel cards (Day Pass, 7-Day Pass, 13 Rides Pass, 30-Day Pass), Annual Pass, rail transit general ticket, etc. You can also put forward requirements for other types of applications, and we have a professional technical team to provide you with solutions.

THD89-F350A is a 32 bits CPU dual interface smart card IC, providing 280KB of NVM space and 14.25KB of RAM space, which can be set as code and data space according to the user. It is suitable for contactless /contact smart card applications, such as ID card, bank card, etc. Compatible with ISO/IEC14443 Type A protocol, the card can be operated by a standard Type A reader. It is also
compatible with ISO/IEC 7816 protocol. For software development convenience, the IC provides hardware DES/ TRNG/ CRC/ PKE, which effectively save the amount of software code and transaction processing time. For better security and reliability, the IC provides enhanced security features, e.g., Electrical Environment Detectors, and Anti-SPA/DPA protections.

Development Toolkits:

√ ULINK2 Emulator
√ TMC target board
√ Demo project and API (Application Program Interface) codes
√User Manual and Application Notes

ISO/IEC 7816 Slave interface:

√ Support T=0/T=1 protocol
√ Support 11 baud rates: F/D = 11H, 12H, 13H, 18H, 91H, 92H, 93H, 94H, 95H, 96H, 97H
√ ISO/IEC 7816 interface DMA
√ 3BH and 60H are sent automatically by hardware
√ Support GSM power consumption standards

ISO/IEC 14443 interface:

√ Compatible with ISO/IEC 14443 Type A
√ Support baud rates: - Normal rate: 106 kbit/s - Enhanced rates: 212 kbit/s, 424 kbit/s, 848 kbit/s
√ Support Crypto1

Special Craft

Packaging & Shipping

Quantity	Carton Size	Weight(KG)	volume(cbm)
1000	2723.513.5cm	6.5	0.009
2000	32.52121.5cm	13	0.015
3000	5121.519.8cm	19.5	0.02
5000	4821.530cm	33	0.03

RFID Project-Based Card
QTY.(pcs)	with encoding	without encoding
≤10,000	7 days	7 days
20,000-50,000	8 days	7 days
60,000-80,000	8 days	8 days
90,000-120,000	9 days	8 days
130,000-200,000	11 days	8 days
210,000-300,000	12-15 days	9-10 days

Company&Producing

Established in 1996, Chengdu Mind IOT Technology Co.,Ltd is a leading manufacturer specialized
in the designing,researching, manufacturing and selling of Rfid products and PVC cards.

We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.

We are looking forward to receiving your enquiries soon.
