Quick Details
-
Model Number:
-
check valve
-
Brand Name:
-
SOLID
-
Color:
-
blue
-
Material:
-
ductile iron, Ductile iron/cast iron
-
Working Pressure:
-
PN10/16
-
Standard:
-
DIN3202-F6
-
Certificate:
-
ISO, CE
-
Coating:
-
Fusion bonded epoxy power coating
-
Wedge:
-
Ductile iron with NBR/EPDM
-
Size:
-
DN 50-DN300
-
Packing:
-
Plywood case
Quick Details
-
Port Size:
-
Standard
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanxi, China
-
Model Number:
-
check valve
-
Brand Name:
-
SOLID
-
Color:
-
blue
-
Material:
-
ductile iron, Ductile iron/cast iron
-
Working Pressure:
-
PN10/16
-
Standard:
-
DIN3202-F6
-
Certificate:
-
ISO, CE
-
Coating:
-
Fusion bonded epoxy power coating
-
Wedge:
-
Ductile iron with NBR/EPDM
-
Size:
-
DN 50-DN300
-
Packing:
-
Plywood case

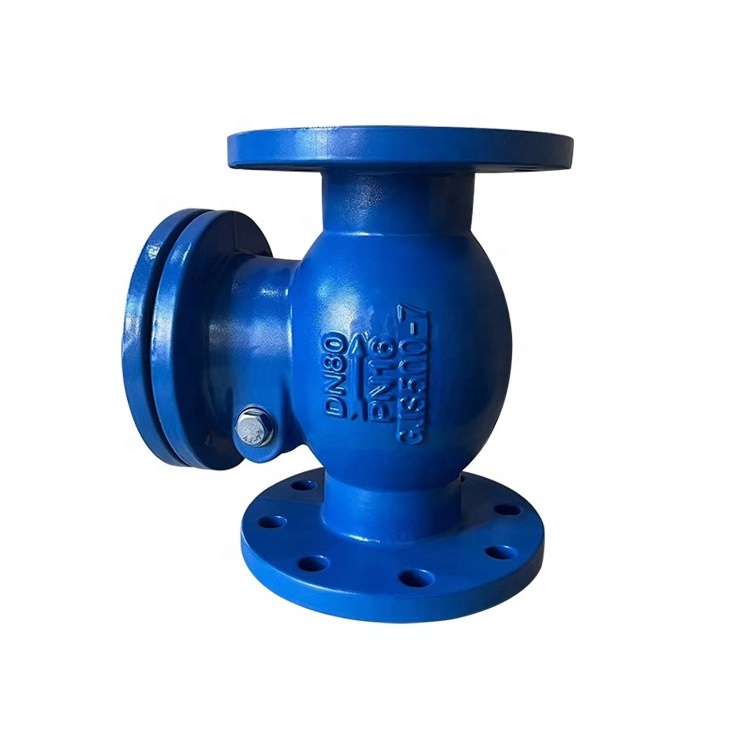

Water Pressure Reducing Ductile Iron Non Return Vertical DI Swing Check Valve
|
Standard |
BS5153,DIN3202-F6,DIN3201-F1, AWWA C508 |
|
Type |
Swing Type , Lift Type, Dual Plate type, Ball Check type |
|
Material |
Ductile iron GGG40/50 or Cast IronGG25 Disc seat ring :Brass/Bronze/Stainless steel/ EPDM Body seat ring : Brass/Bronze/Stainless steel Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
|
Coating |
Internal and external with fusion bonded epoxy coating min250 μ m or Liquid Epoxy painting |
Specifications:
|
Nominal pressue (MPa) |
1.0 |
1.6 |
|
|
Nominal diameter(mm) |
50-600 |
50-600 |
|
|
Test pressure |
Shell |
1.5 |
2.4 |
|
(MPa) |
Seal |
1.1 |
1.76 |
|
Applicable temperature |
150 |
||
|
Applicable medium |
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
|
||
|
Operating mode |
manual, worm gear, pneumatic, electric, etc. |
||
Standards:
|
Design & Manufacture |
Flange Connection |
Face to Face Dimension |
Test & Inspection |
|
DIN3202 |
DIN2533&EN1092 |
DIN3202 F6 |
|
