Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2500 - 3800 r.p.m
-
Material:
-
SUS, Stainless Steel 304
-
Place of Origin:
-
China
-
Brand Name:
-
CD
-
Voltage:
-
220/380(Can customize)
-
Dimension(L*W*H):
-
765*575*1180mm
-
Weight (KG):
-
200 KG
-
Core Components:
-
grinding device
-
Product name:
-
Electrical pepper powder custom grinder machine set
-
Usage:
-
Herb,coffee,salt,chilli,soy,bean etc
-
Capacity:
-
50-250kg/h
-
Color:
-
Silvery
-
Feed size:
-
5-10mm
-
Grinding size:
-
10-120M
-
Spindle speed:
-
3800r/min
-
Motor power:
-
5.5KW
-
Dimensions:
-
765*575*1180mm
Quick Details
-
Output (kg/h):
-
50 - 250 kg/h
-
Feeding Size (mm):
-
5 - 10 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2500 - 3800 r.p.m
-
Material:
-
SUS, Stainless Steel 304
-
Place of Origin:
-
China
-
Brand Name:
-
CD
-
Voltage:
-
220/380(Can customize)
-
Dimension(L*W*H):
-
765*575*1180mm
-
Weight (KG):
-
200 KG
-
Core Components:
-
grinding device
-
Product name:
-
Electrical pepper powder custom grinder machine set
-
Usage:
-
Herb,coffee,salt,chilli,soy,bean etc
-
Capacity:
-
50-250kg/h
-
Color:
-
Silvery
-
Feed size:
-
5-10mm
-
Grinding size:
-
10-120M
-
Spindle speed:
-
3800r/min
-
Motor power:
-
5.5KW
-
Dimensions:
-
765*575*1180mm
Product Description

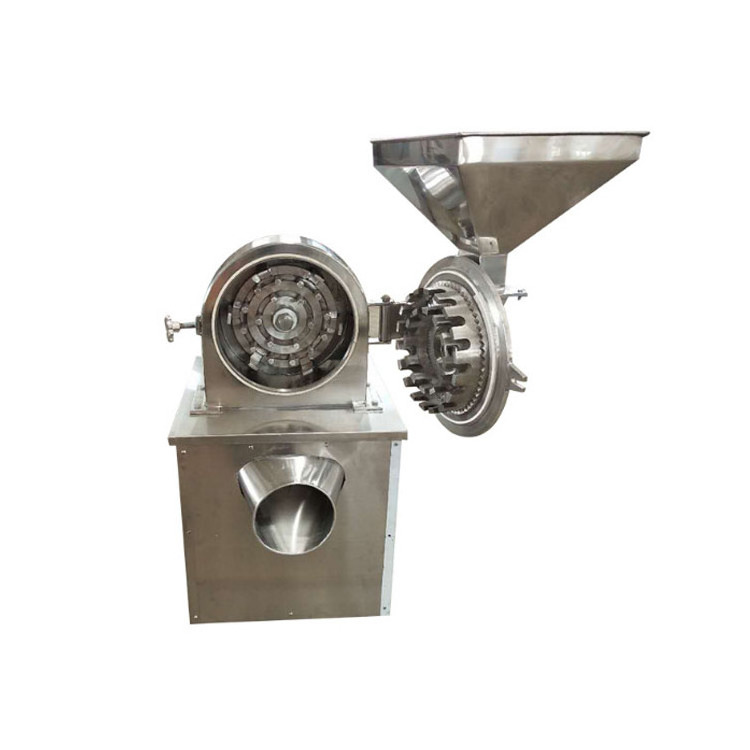

The structure of this machine is simple, sturdy, and runs smoothly. The crushed material is fast
and uniform, and the effect is good.
This machine is made of stainless steel. All the coggings inside the casing (grinding groove) are
precision machined to achieve a smooth surface and easy cleaning. The production of medicines,
chemicals, etc. is more in line with national standards.Meet GMP hygiene requirements.
|
Machine name
|
Universal Grinder
|
|
Model
|
CD-UG-2
|
|
Power
|
5.5KW
|
|
Capacity
|
50-250kg/h
|
|
Grinding size
|
10-120M(Can customize)
|
|
Dimensions
|
765*575*1180mm
|
|
Weight
|
200Kg
|
|
Note
|
Machine usually equip
3Pcs screens
|
Working principle
The crushing principle of this machine is high speed crushing with hammer return air. The crushed material can be directly discharged from the grinding chamber and discharged through the discharge port. After the general material is crushed, it is collected in a cotton bag. The crushed material is collected in the bag, and the air comes out from the small holes of the bag.
The fine powder is discharged, thereby achieving the effects of no waste and no pollution. The particle size is determined by replacing the screens with different mesh numbers.
The crushing principle of this machine is high speed crushing with hammer return air. The crushed material can be directly discharged from the grinding chamber and discharged through the discharge port. After the general material is crushed, it is collected in a cotton bag. The crushed material is collected in the bag, and the air comes out from the small holes of the bag.
The fine powder is discharged, thereby achieving the effects of no waste and no pollution. The particle size is determined by replacing the screens with different mesh numbers.
The universal grinder is made of high-quality 304 stainless steel and is equipped with a national standard motor.
Mainly used in chemical materials, Chinese herb materials containing tree roots, branches and block materials, various low-oil content grains, grains, and some other hard and brittle materials. Food. Grains. herb materials. Chemicals. Seasonings, such as chili. White sugar. Rock sugar. Edible salt. Pepper. Oil wheat. Star anise. Cinnamon.
Mainly used in chemical materials, Chinese herb materials containing tree roots, branches and block materials, various low-oil content grains, grains, and some other hard and brittle materials. Food. Grains. herb materials. Chemicals. Seasonings, such as chili. White sugar. Rock sugar. Edible salt. Pepper. Oil wheat. Star anise. Cinnamon.
Note: Can get different size powder products/particle products
(coarse crushing & fine crushing)
Detailed Images
1-
Bigger hopper Sleek edge design prevents cutting hands, making feeding easier and safer. Rotating screws on the outside can control the feeding speed.
2-
High-speed crushing cavity High-hardness solid teeth and high-speed rotating teeth allow the material passing through to be fully crushed. After crushing, the appropriate fineness is screened through a screen and flows out of the discharge port.
3-
Feeding valve, can control the size and speed of feeding at any time
4-
Honeycomb motor cover Can better dissipate heat to the motor, thus operating efficiently and constantly
5-
Can get different size final products by changing the mesh sieve
Different models with
different capacity
,
welcome contact us for more details!!!
Packing and Delivery picture
such as Bag dust removal device, Cyclone continuous material collection etc.
