- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1810*860*1400mm
-
Weight:
-
360 KG
-
Features:
-
BACKHOE
-
Name:
-
Backhoe attachment
-
Matching tractor:
-
15~180hp
-
Color:
-
red, black, customized
-
Connect person:
-
Andy +86 156 6848 8352
-
Bucket Capacity:
-
10"/14"/16"/18"22"/25"/30"/35"
-
Swing angle:
-
180
Quick Details
-
Application:
-
excavate
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMTRA
-
Dimension(L*W*H):
-
1810*860*1400mm
-
Weight:
-
360 KG
-
Features:
-
BACKHOE
-
Name:
-
Backhoe attachment
-
Matching tractor:
-
15~180hp
-
Color:
-
red, black, customized
-
Connect person:
-
Andy +86 156 6848 8352
-
Bucket Capacity:
-
10"/14"/16"/18"22"/25"/30"/35"
-
Swing angle:
-
180
Efficient!! lawn tractor backhoe /
ATV mini backhoe excavator low price
Andy (Ms.) +86 156 6848 8352
Technical Parameters:
|
Backhoe Model |
|
LW-5 |
|
Matching Tractor |
hp |
15~25 |
|
Max.Digging Depth |
mm |
1650 |
|
Max.Unloading Height |
mm |
1530 |
|
Max.Digging Height |
mm |
2600 |
|
Working Radius |
mm |
2300 |
|
Ground Clearance |
mm |
450 |
|
Side Shift Distance |
mm |
0 |
|
Min.Transporting Width |
mm |
1150 |
|
Max.Width of Supporting Legs |
mm |
2100 |
|
Bucket Width |
in. |
14 |
|
Bucket Capacity |
m3 |
0.03 |
|
Weight |
kg |
360 |
|
PTO Hydraulic System |
6/8/21 Splines(Option) |
|
|
Thumb Grab |
Option |
|

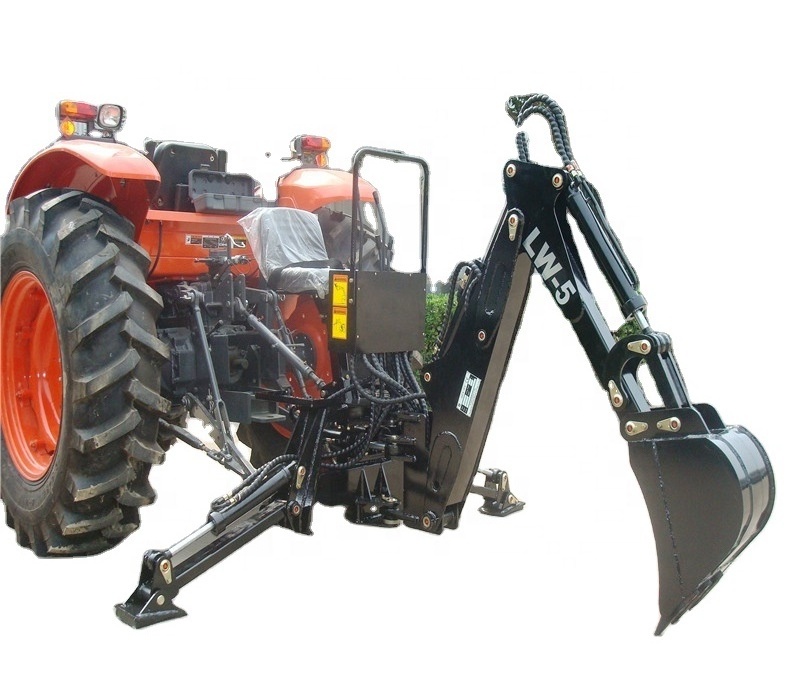

Product Pictures:
