Quick Details
-
Type:
-
Multi jet
-
Material:
-
Plastic
-
Meter Size:
-
20mm
-
Accuracy:
-
B/ customized
-
Manner of pack:
-
20 pieces in one carton
-
Inside Package Size:
-
135*82*98mm
-
Outside Package Size:
-
426*285*212mm
-
Inside Package Weight:
-
0.5KG
Quick Details
-
Place of Origin:
-
China
-
Specification:
-
LXSC-20S
-
Colour:
-
Blak/customized
-
Type:
-
Multi jet
-
Material:
-
Plastic
-
Meter Size:
-
20mm
-
Accuracy:
-
B/ customized
-
Manner of pack:
-
20 pieces in one carton
-
Inside Package Size:
-
135*82*98mm
-
Outside Package Size:
-
426*285*212mm
-
Inside Package Weight:
-
0.5KG
|
Application:

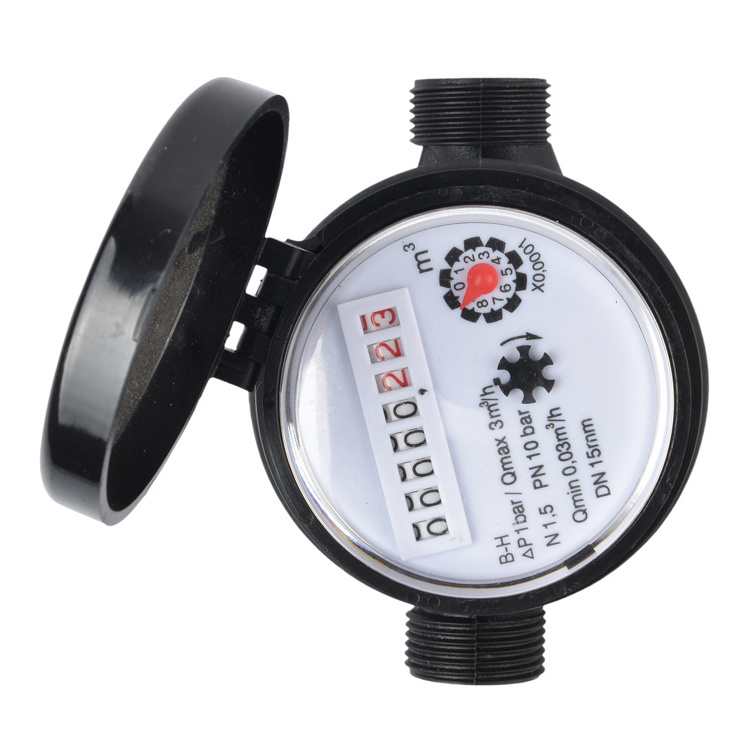

--Measuring the total volume of cold potable water passing through the pipeline.
Feature:
--Dry type, small, light, magnetic drive, free rotating register, easy and long term clear reading etc. Magnet resistance.
--High quality materials corrosion resistance
--Plastic connector nut
-- Technical data conform to international standard ISO4064 Class B ,R80.
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse.
Working condition:
Water temperature: 0.1°C~50°C for cold water meter .
0.1°C~90°C for hot water meter.
Water pressure : ≤1Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)
Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)
Main Technical Data:
According ISO4064(GB/T778.1-1996) standard
|
Type |
Size (mm) |
Class |
Q s Overload Flow |
Q p Permanent Flow |
Q t Transitional Flow |
Q min Minimum Flow |
Minimum Reading |
Maximum Reading |
|
|
|
|
m 3 /h |
L/h |
m 3 |
|||
|
LXSC -15S |
15 |
B |
3 |
1.5 |
120 |
30 |
0.0001 |
99,999 |
|
LXSC -20S |
20 |
B |
5 |
2.5 |
200 |
50 |
0.0001 |
99,999 |
According ISO4064(GB/T778.1-2007) standard
| Type | Size | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Minimum | Maximum |
| (mm) | Overload Flow | Permanent Flow | Transitional | Minimum | Reading | Reading | ||
| Flow | Flow | |||||||
| m3/h | L/h | m3 | ||||||
| LXSC-15S | 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99,999 |
| LXSC-20S | 20 | 80 | 5 | 4 | 80 | 50 | 0.0001 | 99,999 |
Dimensions and Weight
| Type | Meter Size | Length | Width | Height | Connecting | Weight | |
| Thread | |||||||
| mm | mm | D | d | kg | |||
| LXSC-15S | 15 | 110/80 | 77 | 85 | G3/4B | R1/2 | 0.45 |
| LXSC-20S | 20 | 130 | 77 | 85 | G1B | R3/4 | 0.5 |
