Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.2/4.5/5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guandiao
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1300*2500*200
-
Power (kW):
-
10
-
Weight (KG):
-
1200
-
Product name:
-

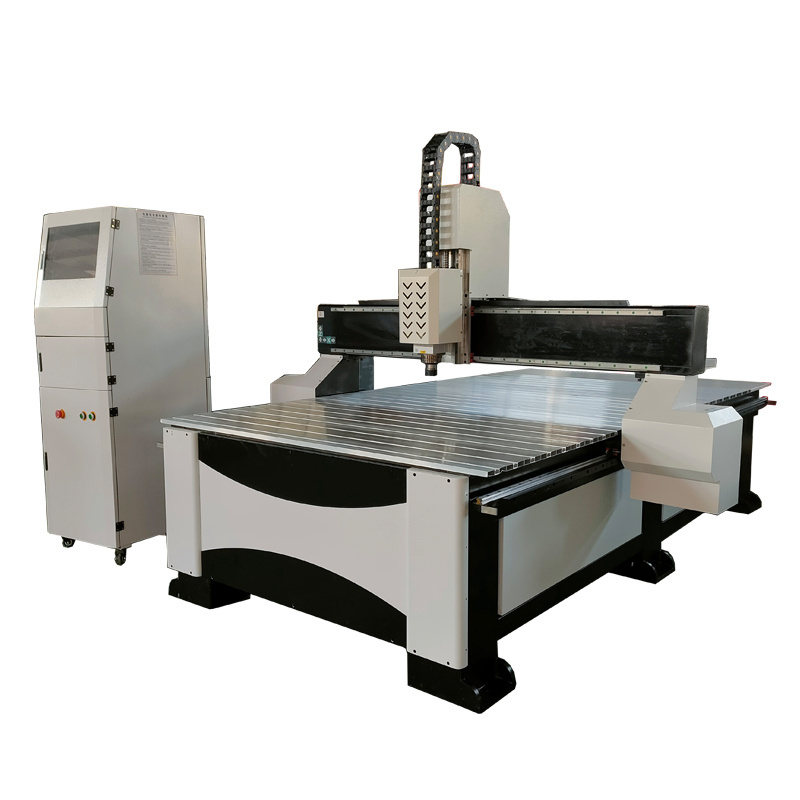

1325 CNC Router Wood CNC Engraving Woodworking CNC Cutting Machine
-
Control system:
-
DSP /NC-studio / Mach3
-
Application:
-
Advertising/woodworking
-
Spindle speed:
-
18000-24000 rpm/min
-
Table Surface:
-
Aluminum T-slot with PVC
-
Spindle:
-
3/4.5/5.5/6kw Spindle
-
Drive motor:
-
Stepper Motors
-
Working size:
-
1300*2500*200mm
-
Color:
-
Optionl
-
Max. Working Speed:
-
0-3000mm/min
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3.2/4.5/5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guandiao
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1300*2500*200
-
Power (kW):
-
10
-
Weight (KG):
-
1200
-
Product name:
-
1325 CNC Router Wood CNC Engraving Woodworking CNC Cutting Machine
-
Control system:
-
DSP /NC-studio / Mach3
-
Application:
-
Advertising/woodworking
-
Spindle speed:
-
18000-24000 rpm/min
-
Table Surface:
-
Aluminum T-slot with PVC
-
Spindle:
-
3/4.5/5.5/6kw Spindle
-
Drive motor:
-
Stepper Motors
-
Working size:
-
1300*2500*200mm
-
Color:
-
Optionl
-
Max. Working Speed:
-
0-3000mm/min
Product Description
Specification
|
Dimension
|
3100*1850*1650
|
|
Platform size
|
1300*2500
|
|
Working area
|
1220*2440*200
|
|
Travelling speed
|
20m/min(MAX)
|
|
Working speed
|
12m/min(MAX)
|
|
Working voltage
|
AC220V(Optional 380V)
|
|
Spindle power
|
Water cooled 3.2KW-24000RPM
|
|
Device architecture
|
One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small
deformation |
|
Driving system
|
XYZ: 86 high torque stepper drive motor and drive
|
|
Rack and pinion
|
The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
|
|
Guide Rails
|
Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
|
|
Operating system
|
Weihong
|
|
Platform structure
|
Aluminum profile + fixture
|
|
Electrical accessories
|
Omron, Chint
|
|
Inverter
|
Best
|
|
Power cable
|
Shanghai customized high-soft high-speed shielding cable,
anti-interference and anti-breakage |
|
Lubrication system
|
Oil pump centralized lubrication control
|
|
Security system
|
Overtravel protection, electrical protection etc.
|
|
Dust collector
|
2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
|
|
Fastenings
|
The transmission parts are fixed with high strength 12.9 class screws,
and the sheet metal is fixed with 304 stainless steel screws |
|
Accuracy
|
Each axis is fixed rigidly, and the locating pin is added
to the precision part |
|
Quality Control
|
Incoming material, process, delivery full control,
24 hours machine test |
Show details
Spindle
HQD/WHD 3.5kw air cooled spindle, low noise, high cutting force and high efficiency.
Rack & Rail
Helical rack
Taiwan HIWIN 20 square guide rail
Body structure
Heavy duty body structure with thick steel welded, will not be deformed when hold heavy materials.
Control cabinet
Independent control cabinet with Leadshine 860H Stepper drivers
Table surface
8mm thickness Aluminum T-slot table surface with hard PVC sheet.
Limit switch
Omron limit switches
Motor
450B Stepper motors
Lubrication
Automatic oil lubricating system
Application
Advertising industry: used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry: seal engraving of various types of materials.
Automotive industry: tire molds, lamp molds and decorative mold processing.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry: seal engraving of various types of materials.
Automotive industry: tire molds, lamp molds and decorative mold processing.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
